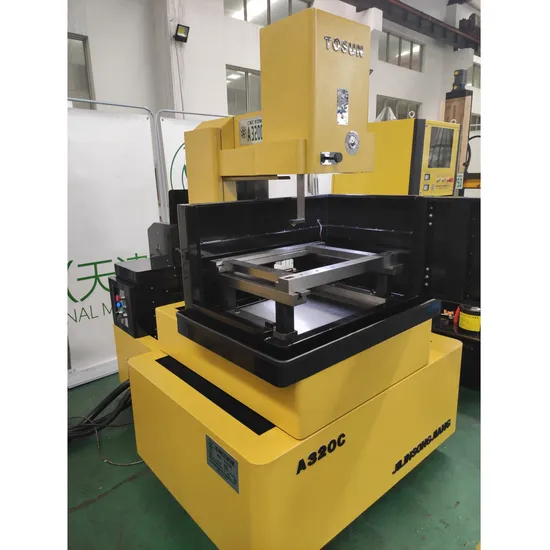

Servo Motor Linear Guide CNC Wire Erosion EDM Machine A320c
| US$15,000.00-17,100.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
A320C
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Open-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Mid-Range CNC Machine Tools
Certification
ISO 9001
Condition
New
Transport Package
Wooden Case
Specification
1750× 1300× 2100
Trademark
TOSUN
Origin
Suzhou
HS Code
8456301090
Production Capacity
1000PCS/Year
Packaging & Delivery
Package Size
195.00cm * 145.00cm * 225.00cm
Package Gross Weight
2100.000kg
Product Description
Product DescriptionServo Motor CNC Electroerosive Wire Cut Machine (Advanced) A320C is our state-of-the-art wire cutting machine. With its exceptional cutting accuracy and consistency, this machine is perfect for precision work piece processing and precision die processing.
At Jilin Songjiang Tech-trade Co., Ltd., we take pride in delivering top-notch equipment that meets the highest standards. Our CNC EDM Electroerosive Machine A320C is no exception. With its advanced features and cutting-edge technology, it's a game-changer in the industry.
Product Parameters
Equipment Specification
| No. | Description | Unit | Specification |
| 1 | Model | A320C | |
| 2 | Worktable Size (L×W) | mm | 550×700 |
| 3 | Worktable Travel (X×Y) | mm | 320×400 |
| 4 | Max. Workpiece Height | mm | 250 (optional 300) |
| 5 | Max. Workpiece Weight | kg | 350 |
| 6 | Machine Dimensions (L×W×H) | mm | 1750×1300×2100 |
| 7 | Machine Weight | kg | 1900 |
Electrical Parameters
| No. | Description | Unit | Specification |
| 1 | Max. Cutting Speed | mm²/min | 200 |
| 2 | Wire Electrode Diameter | mm | Φ0.10~Φ0.25 |
| 3 | Machining Precision (Cutting the octagon in 10mm) | mm | ≤0.010 |
| 4 | Taper/Workpiece Height | *3°/100mm | |
| 5 | Power Consumption | kw | 3kw |
| 6 | Surface roughness | μm | Single cut Ra<2.0, **Multiple cut Ra<0.65 |
| 7 | High pressure water tank | Multi-stage filter system | |
| 8 | Wire guided spinneret | Ruby spinneret | |
| 9 | Control method of wire spool, cooling system | Controlled by the program and the NC panel | |
| 10 | Repeating position precision of X, Y-axis | μm | ±1.5 |
| 11 | Guide rail type | Line guide rail | |
| 12 | Speed regulation of transport wire tube | Converter | |
| 13 | Number of control axes | 5 | |
| 14 | Power Supply | AC380V, 50Hz |
