High Speed Hydraulic Steel Coil Slitting Line Machine/Cut to Length Line
The Vertical Slitting Line, commonly known as a slitting machine, is a specialized industrial equipment used to slit large metal coils (such as cold rolled steel, hot rolled steel, galvanized steel, silicone steel, stainless steel, and aluminum coils) into narrower strips of precise widths. These strips are recoiled for further use in various industries, including transformers, motors, tube/pipe welding, cold roll forming, ceiling drywall, and high-precision equipment manufacturing.
High Precision: Equipped with advanced CNC controls and sensors to ensure accurate slitting widths and consistent quality.
Automation: Fully automated operation reduces manual intervention, improving efficiency and reducing labor costs.
Durability: Built with robust materials and components to withstand heavy-duty use and ensure long-term reliability.
Energy Efficiency: Optimized design reduces energy consumption, lowering operational costs.
Product Parameters
Working Process
Uncoiling → Feeding material into machine →Levelling → Cut to Length →Products receiving table

Raw Material	Coil Type	PPGI,PPGL,GI
	Width	1200/1220mm
	Thickness range	29-22 Gauge (0.3-0.6mm)
Power Requirement	Voltage	380v/3ph/50hz(Customized)
	Main Motor power	5.5kw (Servo Motor for option)
	Cutter power	4kw
Forming speed		15-20m/min
Machine Frame		350mm H Beam Structure
Thickness of structure		18 mm Welded Steel Middle Support Plate
Forming shaft		75mm solid shaft with heat treatment
Material Of Rollers		High Grade 45# Forged Steel
Forming stations		7 rows
Transmission Way		Chain drive 1 inch (Double Chain for option)
Type of cutting		Hydraulic Pillar type and length-set cutting
Control system		PLC Delta and Inverter Delta
Screen		Touch screen
Dimension(Approx)		4.8m×1.5m×1.2m
Total weight (Approx)		2.6T

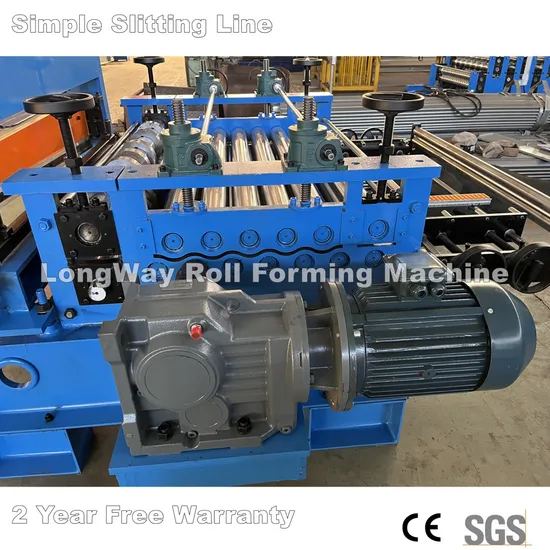

Detailed Photos
Applications
Key Functions: High Speed Hydraulic Steel Coil Slitting Line Machine/Cut to Length Line
Transformer and Motor Manufacturing: Slits silicone steel coils for use in transformers and motors.
Tube/Pipe Welding Industry: Provides narrow strips for welding tubes and pipes.
Cold Roll Forming Industry: Supplies slit strips for roll-forming processes.
Ceiling and Drywall Industry: Processes metal coils for ceiling and drywall applications.
High-Precision Equipment Manufacturing: Delivers precise metal strips for specialized equipment production.
