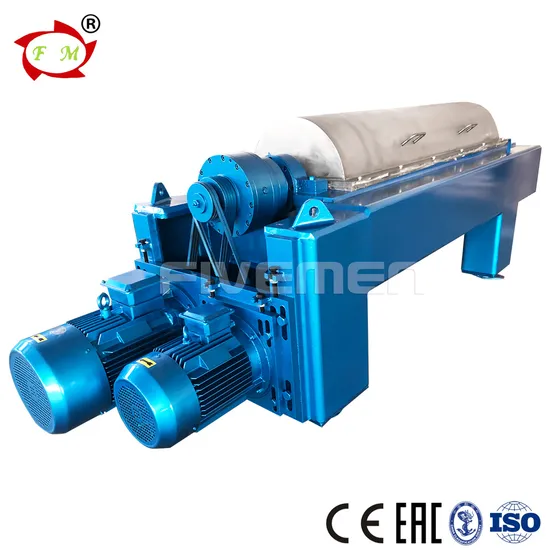

Industrial Automatic Organic Salt Pusher Centrifuge Machine

Product Description

Instruction
Horizontal screw continuous decanter centrifuge is for 0.002-3mm material for clarification, separation,
dehydration, or classify 1um-5um solid phased particles. This is three phase decanter centrifuge, which can
separate the water and solid from the oil.
Feature
It is wide application range, work continuously, large processing capacity, low cost, convenient
maintenance and so on. It is the best equipment for separating solid-liquid.
Reference standard
1. Main standard of the national machinery industry.
JB/T502-2004 "spiral discharge sedimentation centrifuge"
JB/T9095-1995 "centrifuge, separator forgings, welding conventional NDT technology standard"
2. The national main standard
GB10894-89 "separation machinery noise sound power level measurement engineering method"
Application:
It is widely used in chemical industry, light industry, medicine, food, paper making, mining and other industries.
For LW decanter centrifuge, we have two different types, one is LW decanter centrifuge , which is two phase
centrifuge(solid liquid centrifuge), another is three phase centrifuge (solid liquid liquid centrifuge.)
LW two phase appication in :
Liquid clarification: to remove the solid particles in suspension to get clarify liquid.
Solid phase dehydration: dealing with the solid particles to reach dehydration material.
Particle size classification: to remove solid particle of large size in material.
1. coking, industrial sludge concentration, sludge dewatering
2. Food and drink fruit juice slag, slag of animal oil, plant oil, Soy protein isolates of dehydration,
concentration of fish protein, wheat starch B dehydratio.
3.Chemical * barium dehydration, kaolin industry classification and grade of graphite and PPT,
classification of drilling mud.
LWS three phase centrifuge
For three phase separation, to remove moisture and solid sludge from all kinds of oil.
Soybean oil separator, coconut oil separator, olive oil separator, sunflower oil separator ect.
Such as all kinds of plant oil, all kinds of animal oil, Restaurant waste oil, petroleum,
heavy engine oil ect.
Technical paramete
LW two phase

Type	Bowl diameter(mm)	Bowl length/ Bowl diameter	Bowl speed	Main Power(Kw)
			(r/min)
LW180	180	2.5-720	6000	3-5.5
LW260	260	3.0-4	5000	7.5-11
LW355	355	2-4.5	4000	1-30
LW420	420	2-4.5	3600	18.5-37
LW450	450	2-4.4	3600	18.5-37
LW480	480	2-4.2	3200	18.5-45
LW500	500	2-4.2	3200	18.5-55
LW530	530	2-4.0	3200	22-55
LW580	580	2-4.0	2800	30-55
LW620	620	2-4.0	2800	37-110
LW760	760	2-3.5	2500	55-132
Note: In case of differences between the table and the user manual, the latter shall prevail.

LW three phase

Type	Bowl diameter(mm)	Bowl length/ Bowl diameter	Bowl speed (r/min)	Main Power(Kw)
LWS355	355	3.3-4.5	4000	15-18.5
LWS420	420	4.1	3600	22
LWS500	500	4.2	3000	30
LWS530	500	4.2	3000	30
LWS580	580	4.1	2800	45
LWS620	620	4	2800	45
Note: In case of differences between the table and the user manual, the latter shall prevail.
