Widely Used Temperature Gauge for Ships, Boilers, Industry

Product Description

Widely Used Temperature Gauge for ships, boilers, industry

Length	110mm x 30mm	150mm x 36mm	200mm x 36mm
Case	Alu-V-form brass-zinc-coated
Measuring	Brass
System	-60ºC ~+600ºC
Measure range	brass G1/4",G1/2" NPT;BSPT…Option:St.st.(ss 316) Thermowells
Connection thread	Bottom,back,angle90°
Connection	Glass
Fluid container	Blue filling,ab 200C quick silver
FluidStem	45mm,63mm,…at inpuiry

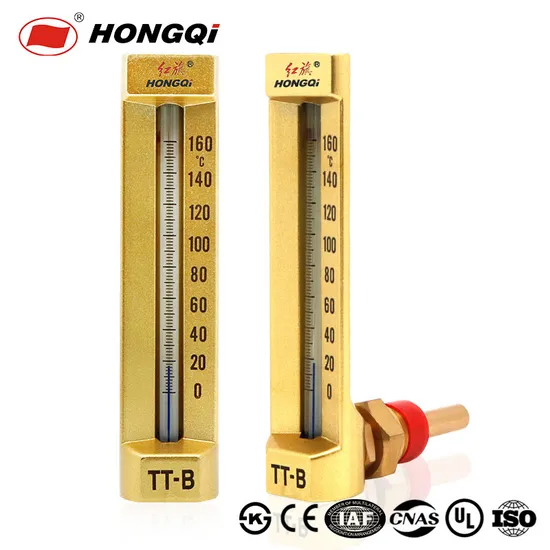

The thermometer is composed of a glass thermometer and a metal protective sleeve. It is widely used in ship matching, heat exchange equipment, hydraulic equipment and various industrial roads. It has the advantages of long service life, beautiful appearance, and strong shock resistance.
Specifications of marine thermometers
1,The thermometer can be divided into three types according to its shape: straight, right-angle (90 degrees) and 135 degrees.
2,The length of the thermometer probe (including the thread): 40mm, 60mm, 80mm, 100mm, 160mm can be customized according to customer requirements.
3,The thermometer connection thread type is G1/2 by default, and special threads G3/8, G3/4, M20*1.5, M22*1.5, etc. can be customized according to customer requirements.
4,Standard temperature range: -50-50ºC, -30-50ºC, 0-50ºC, 0-100ºC, 0-120ºC, 0-150ºC, 0-200ºC, 0-300ºC, 0-600 ºC, special temperature can be customized according to customer requirements.
Ordering instructions:
When ordering, customers must specify: probe length (including thread), temperature range, connecting thread.
V-type marine thermometers are widely used in ship matching, ventilation equipment, hydraulic equipment and various industrial pipelines.
It has the advantages of long service life, beautiful appearance, and strong shock resistance.
Welcome to call us to learn more.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
FAQ:
1.The Quality Of Our ProductsOur Pressure gauge are all 100% inspected, and with standard production process.
2.PriceWe can provide our high quality products with reasonable price.
3.OEM servicesIn the past years, we have many OEM orders from very famous company all over the world.
4.Delivery We can provides intime delivery. Some stocked models can be instant delivered.
5.ServiceWe provide best after-sale service all the time, for our goal is a long trade cooperation term.
6.ReputationOur factory have 28 years experiences.We have already gaining the best reputation and response from the customers from all over the world.
We may accept consumers order with special requirement for instrument and meter!
