Underground Inspection Systems 360 Degree Rotation Deep Water Well Inspection Camera

Product Description

Product Description

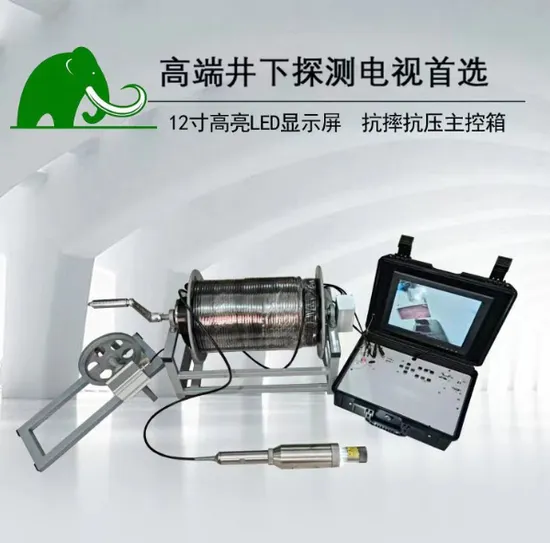

Product Description Underground Water Well Camera1. During the installation, check whether the equipment is working properly and the mechanical part is damaged. Underground lens is used for vertical well detection to display image detection. It is used in water wells, earth mines, natural gas wells, coal mines and other fields. The diameter range is 25-55cm. The probe light source is 8-9 led 5w power. 2. The equipment consists of three parts: control box, electric winch and down hole pulley. 3. Before use, the down hole pulley is placed in the middle of the wellhead, and the cable is placed between the middle slots of the pulley. 4. Press the pulley counter to reset the data .The power supply voltage is 220v. After the power is turned on, the display will automatically display the image. The middle menu at the bottom of the screen is the main menu, the right is the menu selection button, and the left side is the sub menu. The user can adjust the color, contrast and brightness of the image according to the down hole environment. The image will be saved after the power is turned off.
Details Images
parameter

panoramic camera
camera material	45# steel galvanized	camera angle	90 degrees
camera size	73mm standard 50mm, 40mm optional	camera light	Front 8 bright LED lamp beads
camera lens material	Acrylic glass	Probe withstand voltage	Pressure 20MP
Pixel camera	Sony CCD camera, 700 lines	maximum pressure depth	2000 meters
winch
The machine below 300 meters is a manual winch, and the machine above 300 meters is an electric winch The winch is stamped and strengthened wire retaining disc, which has been painted

Main control box
size	415*340*144	language settings	Currently supports Chinese and English
output resolution	Set VGA and HDMI output resolution	video system	32G memory card
monitor
10 inch LCD monitor	291*251*48	contrast	450:01:00
aspect ratio	16:09	brightness	500cd/m³
resolution	1024*768	power supply	AC220V---12VOptional

Well logging cable
cable material	Steel wire logging cable	outer diameter	7.5mm(±0.05)
Under tension	280KG	Heat resistant	70°
downhole pulley

FAQ
1.Pay attention to protect the logging cable during use, avoiding the cable and the sharp object of the well wall to scratch. Scratching may damage the cable.
2. This equipment is a video detector, which is only suitable for use in clear water environment. Please use sonic logging instrument to purify the water source before use.
3.The counter is in decimal notation and the error is 5 cm. Please use the wellhead object reference in advance to measure the depth of the down hole problem. The maximum display data bit is 1000 meters deep and the display data is 400m*0.055 meters.
4.Please prevent the cable from squeezing and damaging.
5.After use, the lens should be cleaned with water. It is strictly prohibited to use a cloth wipe or a corrosive liquid to clean it. Please prevent the lens from being scratched, otherwise the image will be not clear.
Company Profile
Shenyang ABT Drilling Equipment Co., Ltd. mainly provides holistic drilling solutions, serving the mining, stone crushing, water conservancy drilling industry, to help you solve the problem of drilling at high efficiency and low cost. We mainly provide mobile air compressors, drilling rigs, hammer, drill bit, crushers, underground water detector.We are your trustworthy partner.
FAQ
1.Is it difficult to operate and make the graph?
The instrument is easy to operate and we will send you the detailed operation manual via email.
The detector directly mapping with one button, no need computer drawing mapping.
2.What is the accuracy?
Our natural electric field instruments have been made for more than ten years, with advanced technology and market test. We have obtained many invention patents. Our customer feedback rate reaches 100%. Accuracy over 95%.
3.How about after-sales service?
2 year warranty.Free data service for life.The professional geologist give the suggestions and 24hours online.
