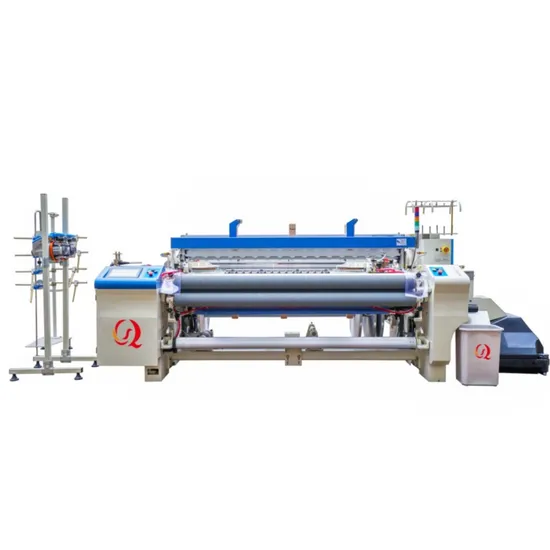

Hot Sale Latest Model Air Jet Fabric Weaving Machine in Pakistan
Basic Info.
Model NO.
ALPHA
Computerized
Computerized
Precision
High Precision
Certification
CE, ISO9001: 2000
Warranty
1 Year
Customized
Customized
Condition
New
After-sales Service
Air Jet Loom Overseas Service Is Available
Working Width
190cm, 210cm, 230cm, 260cm, 280cm, 340cm, 360cm
Color
2, 4, 6
Shedding
Crank, Cam, Dobby, Jacquard
Let-off & Take-up
Electronic
Speed
400-1000r.p.m
Brand
Sq
Selvedge
Leno/Tuck-in Device
Cloth Roller
Wind on Loom/Jumbo Roller
Warp Beam Flange Dia.
800mm, 914mm, 1000mm
Usage Scope
Cotton Yarn, Polyester Yarn, Viscouse Yarn
Transport Package
Air Jet Loom Bulk Package & Spare Parts in Box
Specification
190 plain air jet loom size 340x180x170/cm
Trademark
SQ
Origin
China
HS Code
8446305000
Production Capacity
2000 Sets/Year
Packaging & Delivery
Package Size
400.00cm * 200.00cm * 210.00cm
Package Gross Weight
2500.000kg
Product Description
Product DescriptionSQ produce all model air jet loom for different fabric production.
Include High speed air jet loom,Terry towel air jet loom,Medical gauze air jet loom,Fiberglass air jet loom.
More details,kindly contact our director manager Tina +86 185 604five 9341
Thanks for your attention
Product Parameters
| Item | specification | |
| Reed width | Nominal cm | 150 170 190 210 230 260 280 340 360 |
| Useful | reduce 0-60cm (150-260) reduce 0-80cm (280-360) | |
| Weaving Range | Spun fiber | viscouse,cotton,blended yarn |
| Filament | FTY,DTY,Moto polyester | |
| Weft selection | 1,2,4,6 color | |
| Motor | Start mode | start motor at high speed |
| push-button start,stop or slow move | ||
| Power kw | 2.2 2.8 3.0 3.8 4.5 | |
| Weft insertion | Method | main nozzle+swing nozzle+sub nozzle+E-reed |
| Control | original SMC computer program control | |
| Solenoid valve for sub-nozzle | original SMC | |
| Measuring weft storage | Electric control loop separate weft storage | |
| Beating | Beating-up motion | Double side gear box oil bath type 4-link beating-up motion |
| multi-steysword solid beating-up warp and weft system | ||
| multi-supporting base,balance weight | ||
| shedding | According the weave construction to choose the suitable shedding type | crank type plain shedding |
| down positive cam shedding | ||
| dobby shedding | ||
| electronic jacquard shedding | ||
| Let-off | Electronic type | single warp beam/double warp beam |
| twin rear beam | ||
| positive/negative let-off system | ||
| Warp beam flang dia. | 800mm/914mm/1000mm | |
| Winding method | wind on loom,max dia.680mm | |
| wind out of loom,max dia.1200mm | ||
| Temple | lower or upper | |
| Selvedge | Leno yarn by planecetary gear | |
| tuck-in device(L+R) or (L+M+R) | ||
| Lubrication | for main driving parts:oil bath,other parts centralized filling oil(greese) | |
| stop device | weft breakage | double welf feeler |
| warp breakage | electric warp stop motion | |
| others | selvedge,yarn end treatment,end-broken stop motion | |
| stop display | touch screen display,disply lights | |
| weft cutter | many choice for customer | mechanical/electronic |
| electric control system | Inovance/Baina/ROJ | |
Detailed Photos
Company Profile
Air jet loom manufacturer - SQ machinery
Shengquan Textile Machinery is a collaboration of expert manufacturers specializing in textile machinery
and spare parts. We are specialists in textile weaving machinery, warping & sizing machines, bleaching & dyeing machines, and innovative medical gauze production line solutions.
We offer our customers comprehensive solutions, including workshop layout planning, electric and gas circuit design, machine selection and procurement, personnel training, and exemplary after-sales service.
SQ stands for Safety and Quality. Opt for SQ series textile machines to secure a safe and promising future.
