Mini Box Type Metallzied Polyester Film Capacitor 104j250V

Product Description

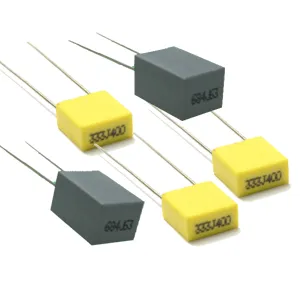

5mm Mini-Box Metalized Polyester Film Capacitor
Key Specifications:
Climatic category: 40, 85 and 21 Rated voltage: 100, 160, 250, 400 and 630&or F Capacitance range: 0.01 to 10.0&uF Voltage resistance: 1.4UR (5s)Dissipation factor (1kHz): 1.0% (20C, 1kHz) Insulation resistance: CR ≤0.33uF ≥7,500MQ CR≥ 0.33F≥ 2,500

Referance Standard		IEC 60384-2, GB/T7332-1996
Climatic Category		40/85/21
Rated Voltage		100VDC
Capacitance Range		1uF/0.22uF
Capacitance Tolerance		±5%(J)
Voltage proof		1.6UR(5s)
Dissipation Factor		≤0.1%(20ºC, 1KHz)
Insulation Resistance		C≥0.33 uF		C≤ 0.33 uF
		UR >100V	UR≤ 100V	UR >100V	UR≤ 100V
		2500S	1250S	7500MΩ	3750MΩ

Features:
Box-type provides the identical outer appearanceNon-inductively would with metalized polyester film as the dielectric, with copper-clad steel leads and encapsulated in a plastic case sealed with epoxy resinWide capacitance range and small size,Long life due to self-healing effect,Suitable for blockingBy-pass and coupling of DC and signals to VHF range,Widely used in filterNoise suppression and low pulse circuits

Product Certifications:
Certificate Standard: FL,Certificate Number: 104640001,Issue Date: 30-Jun-2004 Certification Agent: Underwriters Laboratories Inc Certificate Standard: +S,Certificate Number: 119854Issue Date: 08-Jul-2004 ,Certification Agent: +S Authorization Certificate Standard: SGSCertificate Number: GZSCR041248032/LP.Issue Date: 24-Dec-2004 Certification Agent: SGS -CSTC LTD Certificate Standard: RoHSCertificate Number: CQC06130017473Issue Date: 08-Sep-2006 Expiry Date: 07-Sep-2007 Certification Agent: China Quality Certification Centre
