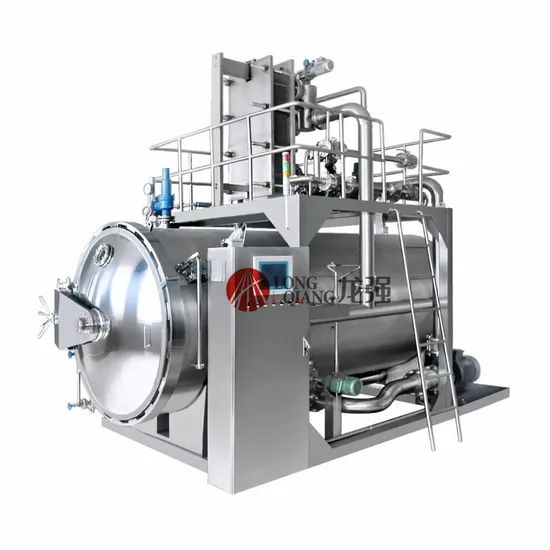

Lateral Spray Hot Water Retort Autoclave for Pouch etc

Product Description

Automatic spray type retort
Suitable for
A fully functional autoclave is applicable to all kinds of high temperature resistant packaging material. Such as plastic containers: pp, HDPE bottle, soft bag packing: aluminum foil bags, transparent bags, vacuum bag, high temperature cooking bag, etc , metal containers: tinplate cans, aluminum cans, and glass container.
Characteristics of the equipment
1. Direct heating & indirect cooling, cooling water and process water does not contact, which avoid the secondary pollution of the food. No water treatment chemicals, high temperature short time sterilization.
2. A small amount of process water cycle fast, and make the equipment reach the predetermined sterilization temperature quickly
3. Low noise, create quiet and comfortable working circumstance.
4. Perfect pressure control, pressure in the entire production process adjustment, to adapt to the change of internal pressure of product packaging, make the product packaging to meet minimum deformation degree, especially suitable for gas packing and two pieces of tin products.
5. Process water preheating system can ensure that product which warm fill is continuous heating process
6. To use domestic flange and the top parts of the superior quality, head is made of one -tome cold press forming, and after aging, vibration when using won't produce the deformation and stress.
7. Stainless steel pot body surface by sand grinding processing, improve the surface hardness and corrosion resistance, especially corrosion resistance of cooling water to add chlorine.
8. To adopt stable advanced SIEMENS control system, to ensure that customers in the worldwide, can find the supply chain timely and reduce downtime.
9. The industry one of the few highly sophisticated equipment and strict production process in the worldwide, to ensure the quality of the whole class.
10. Steam sterilization function (optional)
11. Saving installation space, convenient operation, saves the manpower(simply operating directly with control cabinet)
12. Be suitable for beverages, food industry for mass production to feeling and discharge automatically when loading and unloading. It is more convenient in the future in the industry automatic equipment of unmanned workshop.
13. Up open/ side open (optional).
14. The entire sterilization process adopt PLC automatic linear control, tank thermal distribution of temperature control in the plus or minus 0.5ºC, multi-stage heating, energy saving, equipped with F value measurement function (optional), can store 250 sterilization formula.

Items	Units	Ф700#	Ф1200#			Ф1300#		Ф1500#			Ф1600#
Length	mm	800	3000	3750	4000	3750	4000	4000	5000	6000	6000
Overall length	mm	1300	5500	6250	6500	6250	6500	6500	7500	8500	8500
Total wide	mm	900	1600	1600	1600	1800	1800	2000	2000	2000	2200
Total high	mm	1000	1700	1700	1700	1800	1800	2000	2000	2000	2100
Effective volume	m3	0.1	2	2.52	2.69	3.03	3.24	4.16	5.2	6.2	7.26
Food basket		2	3	4	4	4	4	4	5	6	6
Steam consumption	Kg/batch	80	200	250	270	270	300	360	430	530	630
Equipment power	Kw	3.7	15	16.5	16.5	18.5	18.5	24	26	27.5	27.5
Design temperature	145ºC
Test pressure	0.44MPa
Design pressure	0.35MPa

Technical Parameters
