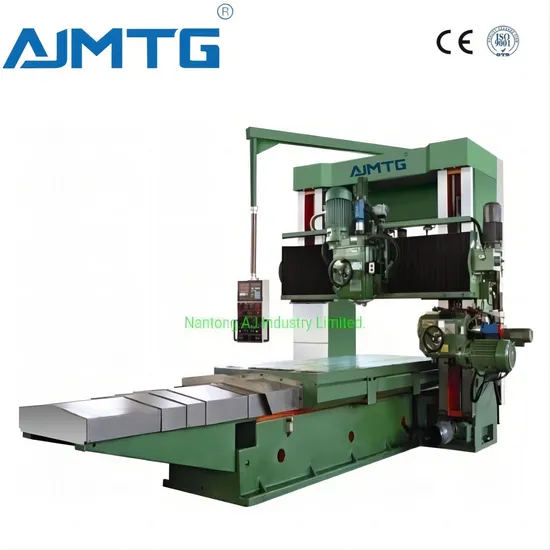

Planer Gantray Type Graphite Milling Machine Gmt3008
Basic Info.
Model NO.
GMT3008
Type
Planer type Milling Machine
Object
Metal
Structure
Gantry
Milling Cutter Type
Cylindrical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Electrical
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Metal Box
Specification
HT300 cast iron
Trademark
AJMTG
Origin
China
HS Code
84571030
Production Capacity
200 Set Per Year
Product Description
Hello freinds,Quality, reasonable price and good service, welcome consulting, ordering!
Planer type miling machine
Specificaitons of This Series
X2010 X2012 X2014 Gantry milling machine with 2 heads 1 vertical milling head, 1 horizontal milling head
| Specification | Unit | X2010 | X2012 | X2014 | |
| Max. travel | Length | mm | 2000/3000/4000 | ||
| Width | mm | 1300 | 1400 | 1800 | |
| Height | mm | 1000 | 1000/1200 | ||
| Distance between columns | mm | 1440 | 1600 | 1920 | |
| Table size | Length | mm | 2000/3000/4000 | ||
| Width | mm | 1000 | 1250 | 1400 | |
| Table feeding speed | feed | mm/min | 20-360 | 25-450 | |
| rapid travel | mm/min | 1050 | 1300 | ||
| Spindle taper | | 7:24, ISO50 | |||
| Spindle speed step | r/min | 6 steps 82-505 | |||
| Spindle swivel angle | | ±35° | |||
| Feed rate of milling head | mm | Along the cross rail:65/320/890Side milling head:50/265/730 | |||
| Power of spindle motor | kw | 7.5 | |||
| Power of table motor | kw | 4/5.5/7.5 | 5.5/7.5(3000/4000) | ||
| Overall size | Length | mm | 4550/7000/9000 | 5000/7000/9000 | |
| Width | mm | 3200 | 3550 | ||
| Height | mm | 2550 | 2950/3150 | ||
X2008 Gantry milling machine with 1 vertical milling head
| ITEM | UNIT | X2008 | |
| table size | mm | 2000*800 | 3000*800 |
| T-slots (No./width/pitch) | | 5/22/160 | |
| max travel of table | mm | 2000 | 3000 |
| max width of workpiece allowed | mm | 1100 | |
| max height of workpiece allowed | mm | 800 | |
| spindle taper | | 7:24 ISO50 | |
| spindle speed | rpm | 82-505 (6 speeds) | |
| spindle box swivel angle | | ±35° | |
| spindle box vertical travel | mm | 350 | |
| table feed speed -X axis | mm/min | 0-1400 (stepless) | |
| spindle box feed speed (along beam) -Y axis | mm/min | 65/320/890 (3 speeds) | |
| beam move speed (vertical) -Z axis | mm/min | 429 | |
| max vertical torque | N.m | 790 | |
| spindle motor power | kw | 7.5 | |
| table motor power | kw | 4 | |
| max load | kg | 2000 | |
| machine overall size | mm | 4000*3000*2450 | 6000*3000*2450 |
| machine N.W. | kg | 5400 | 6100 |
