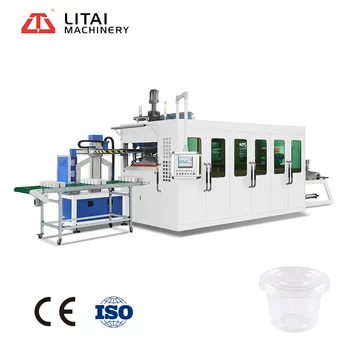

One-Line High Quality Plastic Cup Thermoforming Machine

Product Description

Product Parameters

Model	TQC-750
Max. Forming Area	750*480mm
Max. Forming Depth	125mm
Sheet Thickness	0.3-1.8mm
Sheet Width	760mm
Max. Forming Speed	35 times/min
Air Pressure	0.6-0.8mpa
Air Consumption	3.0m³/min
Water Consumption	0.7m³/h
Rated Power	140Kw
Used Power	98Kw
Power Supply	AC 380V,50Hz, Three-phase, Four-wire
Dimension	L8500*W2200*H3200mm
Weight	About 6.5T

Product Display
MACHINE FEATURES
Automatic sheet feeder with square steel structure, high wear resistance, more stable, efficiently, the accuracy of feeding size could be improved by automatic feeding. Material holder combines with the machine, which is controlled by cylinder, can move up and down. It is easy for operation, and saving more space. Machine adopts PID temperature system, it shows high precision, and temp control tolerance<1ºc<> Movably mould device is conveniently to assemble and dismantle mold, and the vibration of the machine could be reduced by machine's counterbalance valve controls the opening and closing speed, good stability, conducive to forming. <1ºc<><1ºc<><1ºc<>
Product Process
APPLICATION AREA
Plastic cup thermoforming machine is our lasted developed product, Sheet feeding and stretching part
are driven by servo motor. Machine produces disposable products, such as plastic cup, bowl, lid, and
box through the workflow of sheet feeding, sheet heating, forming, cutting and blowing, widely used
and suitable for most of the customer requested. PLC for program, manual interface for operation,
stable, low noise, and high efficiency.
Company Profile
Guest Department
Exhibition
Transport Packaging
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory, and we export our machines to more than 80 countries since 2001.
Q2: How long is the warranty period?
A2: We have a professional QC department in charge of products' quality.
Q3: How long is the warranty period?
A3: 13months calculated from the date of shipment from our factory.During warranty period, except the artificial factor, the spares are free to maintenance, beyond the warranty time, the buyer needs to pay the spare charge and shipping cost.
Q4: How to install the machine?
A4: We will send technician to your factory to install the machine, and teach your workers to use it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and technician salary.
