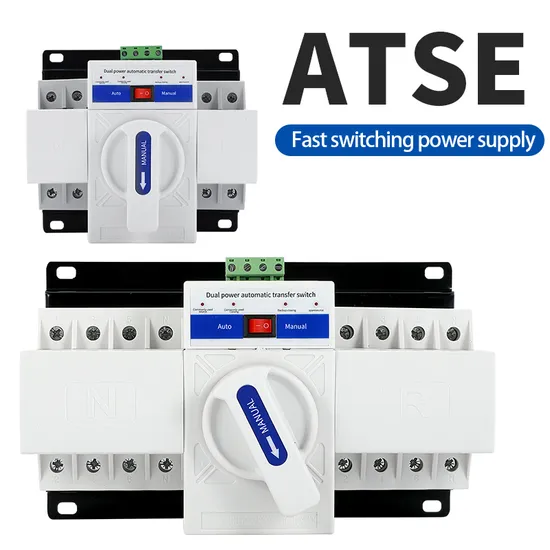

Automatic Transfer Switch 2p/4p CB Class ATS Backup Power Automatic Changeover Switch

Product Description

Product Description
STQ1 Automatic Transfer Switch (hereinafter referred to as ATS) using the self manufacturing high breaking capacity MCB, only for the two power sources to switch between each other, shall not be used in the main power switch, suitable for AC 50/60Hz, rated operating voltage 230/400V rated operating current 63A below the power supply system, only automatic or manual operation to complete the commonly used power supply and standby power switch. The ATS is mainly used in hospitals, shops, banks, chemical industry, metallurgy, high-rise buildings, charity facilities and other places where the two power sources need to switch each other. Detailed Photos
Product Parameters

product type	Automatic Transfer Switch
Class	CB
Maximum Current	63A
Operating Voltage	AC230V(2P), AC400V(3P/4P)
Frenquency	50/60Hz
Utilization Category	AC-33iB
Motor Control Voltage	230V~
Insulation Voltage	690V~
Transition Time	≤3s(not adjustable)
Operation Type	Manual or Automatic
Fire protection	Optional

Measurement
Certifications
FAQ
1. What's the warranty term? 24 Monthes. 2.How long does it take to deliver my goods? Normally, samples can be delivered in 2 days. Customer designed sampleswill be delivered in 3-7 days. 3. Do you offer sample? Yes, we offer sample order for customer to test the goods. 4. What kinds of payment terms do you accept? We offer kinds of payment ways foe customer to chose from. T/T,L/C,Western union etc. 5. What if there's quality peoblem? We offer replacement for the goods as soon as there is a quality problem with the goods, and the fright is on our account to cut down the customer's loss to the lowest.
