Metal Aluminum Can Block Shredder Single-Axis Metal Wood Shredder Shredding Machine

Product Description

Product Description

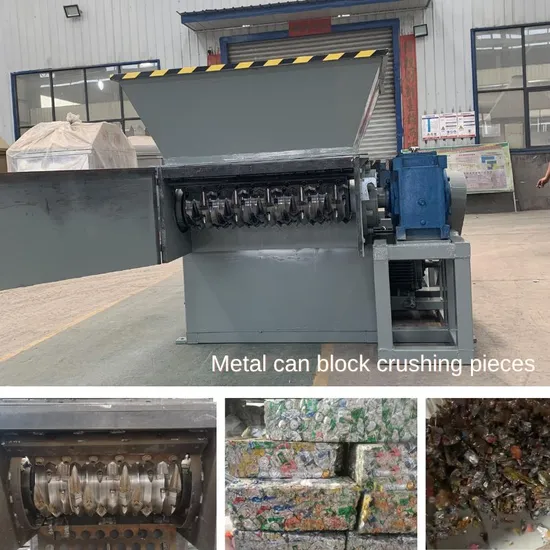

Metal Aluminum Can Block Shredder Single-axis Metal Wood Shredder Shredding Machine
This Single Shaft Shredder is designed and applicable to intractable, hard and irregular enginerring plastics such as thick pipes, lumps from extruder, package barrels, buckets, trays,ruber, wood, etc. Working with medium speed and tenderly, low noise, low power consumption.
Rotary knife designed symmetrically, can be exchanged four times for use, which prolong use long life span. When push materials by hydraulic, can select speed and presure freely according to different materials load. It is with low labor strength, safe& reliable operation. The discharge size can be controlled by the screen and various feeding hoppers can be provided according to customer needs.
Detailed Photos
Knife DC53 material was used for moving tool, Cr12Mov material was used for fixing tool, and the hardness reached HRC59±1.The design uses split bearing seat technology, which allows quick and effective blade replacement.
Screen interchangeability is strong, easy to replace.
Hydraulic system The guide bar and guide block in the pusher box can be replaced andd adjusted to maintain the smooth pusher and sealing of the crushing bin.Two speed hydraulic system, air cooling device is standard.
Suitable Material Of Single Shaft Shredder Machine
1. Plastic products: film/woven bag/PET bottle/plastic barrel/plastic pipe/plastic plate
2. Rigid plastic: plastic head material/fiber/high-strength engineering plastic
3. Wood: logs/roots/wood pallets
4. Light metal: cans/aluminum chips
5. Electronic waste: TV case/washing machine case/refrigerator case/circuit board
6. Solid waste: municipal waste/waste-derived fuel/medical waste/industrial waste
7. Other wastes: wire and cable casings/paper/rubber cotton textiles/composite glass fiber products
Product Parameters

Model	Shredding Width(mm)	Power (KW)	Rotation Speed(rpm)	Weight (KG)	Dimension LWH(mm)
MCD-600	600	18.5	80	1750	1820*1310*1730
MCD-800	800	37	80	4150	2800*1800*2090
MCD-1000	1000	45	80	4300	2800*1980*2090
MCD-1200	1200	55	80	4900	2800*2500*2140
MCD-1500	1500	75	80	7280	2800*2750*2140
Enquiry for more details of model parameters, factory direct production, support custom service.

Features 1. It adopts PLC control system, automatic overload protection and auto reverse switch 2. Good shaft structure design, low noise, blades easy changeable 3. The low rotation speed results in a particularly quiet shredding process with low levels of dust generation 4. It can be adjusted according to customer specific requirements for throughput volume, material to be processed, etc. Packaging & Shipping
Small shredding machine wooden box packaging delivery or container delivery.
Company Profile
Henan Mingchuang Machinery Manufacturing Co., Ltd. is a professional supplier of crushing, sorting, drying equipment, environmental protection machinery. With 18 years of experience in machinery and equipment processing, The production of multifunctional shredder machine, metal crusher, plastic crusher washing line ,copper granulator recycling equipment,oil press machine etc.
we can provide highly customized solutions according to customers' needs, and win the recognition of industry users with advanced technology and excellent product quality. For a long time, we always adhere to the road of globalization,we have exported to Central Asia, Southeast Asia, South America,and other more than 130 countries and regions.
FAQ
1,How do I get the right device for my needs? Tell me what are your raw materials? Metal, plastic, wood, plants, copper wire and more? What is the approximate size of the raw material in millimeters? Describe the shape of the raw material. How many kilograms of raw materials are processed per hour? Capacity 500-1000kg or 5000-8000kg? What is the final product? 50mm blocks or separated metal and plastic particles and so on? 2,Why choose us?We are a supplier with 15 years of production experience, can support customized equipment according to your requirements, no intermediate traders to earn the difference, equipment support pre-shipment testing services, complete delivery services and installation operation guidance, one-year shelf life, support factory training guidance services, etc.
