High-Precision 5-Axis Simultaneous Machining Center for Milling Valve Copper Shells and Auto Parts

Product Description

Product Description

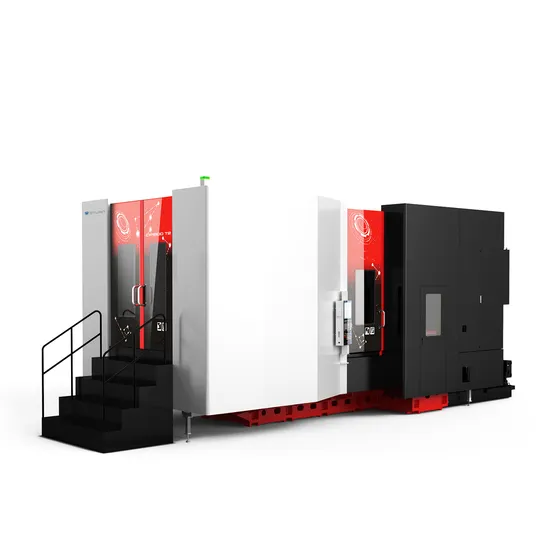

High-speed and high-performance precision horizontal 5-axis machining center CP Series has the characteristics of high rigidity, high precision and high efficiency processing. The one-piece base is adopted, and the positive T structure design of the high and low rails of the base ensures the high rigidity of the machine tool; through the finite element analysis of the whole machine, it ensures that the machine does not vibrate under high-speed motion, and ensures the best long-term operation stability of the whole machine.
By using high-speed spindle technology, high-speed feed technology, high-speed tool change technology, high-speed CNC system technology and other high-end technologies, the processing time is greatly shortened, the processing efficiency is improved, and various production needs are met. The three-axis rapid displacement is 42 M/min, and the high-speed and high-torque electric spindle reduces the acceleration and deceleration time of the spindle. These indicators greatly shorten the non-processing time and improve the processing efficiency; the screw/bearing seat/spindle/DD swing head adopts a temperature control system, It ensures the excellent thermal balance of the equipment and greatly improves the accuracy and stability of the equipment.
Adopting Siemens ONE system, 19-inch super large LCD display, dynamic graphic display of tool trajectory, intelligent warning display, self-diagnosis and other functions make the use and maintenance of the machine tool more convenient and fast; the high-speed bus communication method greatly improves the data processing of the CNC system The ability and control performance facilitate the fast and efficient transmission and online processing of large-capacity programs
Product Parameters

Item		Unit	CP1600T2
Travel	X/Y/Z axis travel	mm	1550x1540x940
	B-axis travel		-30°-180°
	C-axis travel		360°
	Distance from spindle to worktable (B-axis 90 degree horizontal type)	mm	100-1040
	Distance from spindle to worktable (B-axis 0 degree vertical)	mm	0-940
	Distance from spindle to center of worktable (B-axis 90 degree horizontal type)	mm	-160-1290
	Distance from spindle to center of worktable (B axis 0 degree vertical)	mm	-60-1390
	Max. processing range	mm	φ1490*1040
Three-axis feed	X/Y/Z axis rapid displacement	m/min	42/42/42
	Cutting feed rate	mm/min	0-24000
Rotary table (C axis)	Number of workbenches		2
	Disk diameter	mm	800*800
	Allowable load	kg	1800
	Max. rotation speed	rmp	20
	Positioning/repetition accuracy	arc.sec	15/10
B axis	Max. rotation speed	rmp	50
	Positioning/repetition accuracy	arc.sec	8/4
Spindle	Spindle specifications (installation diameter/transmission mode)	mm	230/built-in
	Spindle taper hole	mm	A100
	Spindle Max. speed	r/min	10000
	Spindle motor power (continuous/S640%)	kW	54/65
	Spindle motor torque (continuous/S640%)	N.m	200/230
Turret	Tool magazine capacity		50T
	Tool exchange time (T-T)	S	8
	Max. tool diameter (full tool/empty tool)	mm	120/240
	Max. tool length	Mm	450
	Max. tool weight	kg	15
Guide	X-axis guide rail (size/number of sliders)	mm	65/2
	Y-axis guide rail (size/number of sliders)	mm	55/3
	Z-axis guide rail (size/number of sliders)	mm	55/2
Three-axis transmission	X-axis screw	N	55x16
	Y-axis screw	N	55x16
	Z-axis screw	N	2R50x20
Three-axis accuracy	Positioning accuracy	mm	0.005/300
	Repeatability	mm	0.003/300
Lubrication system	Lubrication unit capacity	L	0.7
	Lubrication type		Grease lubrication
Others	Air demand	kg/cm²	≥6
	Air flow	mm³/min	≥0.5
	Machine weight	KG	31
	Size	mm	4141*10061*4109
	Machine weight	T	31
