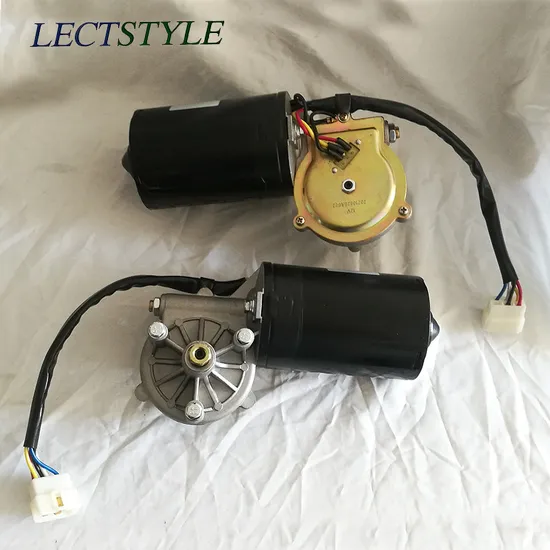

12V 80W 45rpm Worm Gear Windscreen Wiper Motor on Electric Venetian Blind

12V 80W 45rpm Worm Gear Windscreen Wiper Motor on Electric Venetian Blind

US$49.00
100-499 Pieces
US$42.00
500+ Pieces

Basic Info.

Model NO.
1633-12-80-83mm
Part
Wiper Motor
Material
Aluminum Alloy
Range
Overall
Type
Traditional Batch Type
Bone
With Bone
Sweep Angle
135°
Driving Type
Electrical
Size
16"
Application
Engineering Vehicle, City Bus, Trucks, Coach
Power
80W
Voltage
12V, 24V
Nominal Torque
10 N.M
Stall Torque
50 N.M
Motor Diameter
83mm
Output Speed
30--45rpm
Transport Package
Plywood Case
Specification
ISO, CE
Trademark
LECTSTYLE
Origin
China
HS Code
85013100
Production Capacity
1000 PCS Each Month

Product Description

Product Description 1. Motor type: Permanent magnet DC
2. Rated speed: 1500rpm-4500rpm
3. Protection: IP44, IP55, IP66
4. Voltage: 12V, 24V
5.Gear Ratio: 30:1, 50:1, 60:1, 75:1 etc
6.Output speed: 35rpm-45rpm, 40rpm-45rpm, 70-80rpm, 100rpm-120rpm,
7. Output power: 120W, 180W, 250W on this DC wiper motor type
8. Gearbox: worm and wheel
9. Insulation: Class F
10. Efficiency: 65%

Detailed Photos


Product Parameters
Technical parameters:
Model 1633B 2633
Rating Voltage UN 12V 24V
Rating Power PN 80W
No Load Current IN 1.5A/0.6A
No Load Speed nN 35/45±5RPM
Load Current ID 1.5/1.8A
Load Speed nD 35/45±5RPM
Wiping Angle 45,50,55,58,60,65,70,75,80,85,90,95,100,
105,110,115,120,125,000,000
Protection Circuit EMC or overload protection
Protection Class IP33
Weight W 2.8kg
Wiper motor connector:
Connector type Red wire Black wire Green wire Yellow wire
4 holes 4 wires Positive Negative Low speed Reset

Features:
1. Swing output;
2. Compact, series design;
3. Convenient installation, small space occupation;
4. Multi functional selectivity combination (Reset, with switch, single or double speed)
Application:
1. Construction machinery cab.
2. Motorcycle windshield.
3. Agricaltural vehicles.
4. Rear window of all kinds of vehicle.
Raw material of wiper motor: copper, iron, aluminum alloy, plastic, etc.
Working temperature: -40°c - 65 °c
We follow QC/T413-2002 Basic Technical Requirements of Automotive Electrical Equipments, QC/T29090-1992 Automotive Wiper Motor Technology Requirements.
Our Services
Free samples are for serious customer.
Your OEM sample and ODM design are welcomed.
Please let us know in time if there is any problems with our products, we will solve the problem at the first time.
Packaging & Shipping PACKING UP:
1. Inner packing: Poly bag, air bubble bag, carton, according to buyer's request.
2. Outer packing: wooden case, double corrugated carton or adding pallet.
3. Please remember to leave the correct contact ADDRESS information for delivery.
Company Profile Our Core range of DC motors, electric transaxle motor, wheelchair motor and gearboxes are specifically designed to be interchangeable and versatile, this helps us keep lower stock levels while achieving the customization necessary for so many applications. The core offer has also enabled us to offer excellent pricing levels for low quantities, often prototypes are very expensive due to lack of economies of scale we have tried to help with this as much as possible. HANGZHOU LECTSTYLE can offer bespoke units for larger quantities and offer a Supply Chain service where we work closely with our customers to identify the optimal delivery schedule in accordance with OEM production levels. If you are looking for DC motors, wiper motors, electric transaxle motor, wheelchair motor and gearboxes, you have come to the right place, our expert technical sales staff will recommend the best possible option for both your application and your pocket. Contact us now to discuss your application.
HANGZHOU LECTSTYLE TRADE CO., LTD is responsible for exporting the above products, and we also import some important products from oversea markets.
Our company has got the right of import and export from the Government department.
It is necessary to get your specific requirement when contacting us,
(1) for example of motor, voltage, power, speed, output torque, connecting type and size of shaft, outside structure drawing or relevant pictures etc.
(2) for example of electric transaxle, confirm its wheel base, power, voltage, industry field, running speed, wheel tyre's diameter and width, loaded weight etc, and then we will give the accurate offers.
Therefore, hope to get your feedback soon.
Please watch our process steps as below
(1) process these output shafts
(2)process these spur gears and sprockets
(3) turning machining
(4) assembly preparation
(5) assembly workshop
(6) inspection test before shipment
Our Advantages CHOOSE US FOR:
1. We offer engineer suggestion to your specified design in production improvement and cost saving.
2. R&D and QC department focus on the products to meet your strict requirements.
3. Different surface treatments available, plating, power coating, painting, anodized,polishing, electrophoresis, etc.
4. Different dimensions according to buyer's request.
5. Various packagings according to specific requirements.
6. Customized and tailored orders are welcome.
7. Good quality and Quick action.
8. Our products have been exported to America, Australia,German,Korea,Indian.

CONFIDENTIAL POLICY:
1) The appointed products are only for you.
2) Your informations&documents are confidential.
3) Your drawings&sketch are confidential.
After Sales Service Our products can be repaired or replaced the new parts with free cost in three months.
FAQ Question:
1.Q:How about mould cost?
A: primarily depend on : 1.Drawing, 2.material, 3.weight and quantity.
We need to know the structure of each parts to analyze the mold solution by:
1) --Complete design drawing or actual sample ----- the best way
--3D/2D drawing with complete dimension for each parts
--Clearly photos for each parts with more angle-views to show every features.
2)The materials and surface treatments.
3)The quantity of order.
2.Q:How to control the product processing?
A: The processing report or pictures will be sent to the customer every week/ each month for review.
3.Q:Who will own the mould?
A:Customer, also the mould can be kept in our factory for future order.
4.Q:How long do you make your quotation?
A:After receiving detail informations we will quote in 1 to 3 days.
5.Q: Are the samples/prototype free of charge?
A: charged,but it will be returned to buyer when an order confirmed and order quantity is over 5000 pcs.
After your drawing confirmed and charges done for the prototype, we will produce a sample
by CNC machining. And the first trial samples (1-3pcs) will be shipped to buyer
by the DHL /Fedex at buyer's express account or prepay the express charges.
MOQ? --- 100units and accept sample order.
