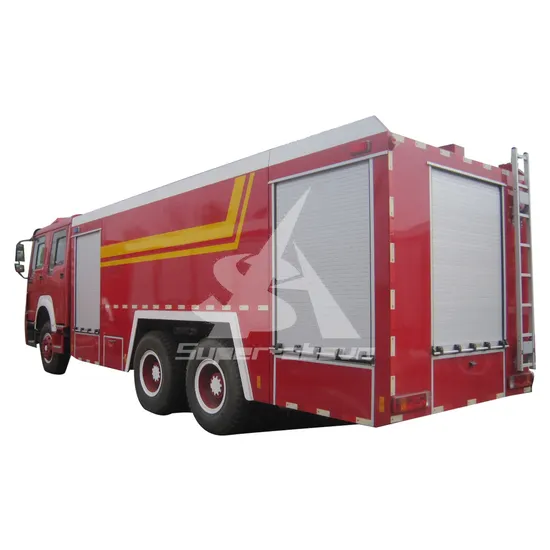

Sinotruk HOWO6X4 Foam Dry Powder Fire Engine Fire Fighting Truck
| US$30,000.00-60,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Fire Truck
Certification
ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Volume
3000-30000L
Emission Standard
Euro 4
Transmission Type
Manual
Payload
5-40ton
Fuel
Diesel
Drive Wheel
6×4
Horsepower
251-350hp
Condition
New
Maximum Speed
90km/H
Tire Size
12.00r20
Wheelbase
2035/1844mm
Passengers Allowed in The Cab
2+4
Transport Package
Roro
Specification
CE
Trademark
Super-above
Origin
Shanghai, China
HS Code
8705109100
Production Capacity
1000PCS/Year
Product Description
We are supply all brands of special truck , beiben, Faw , Foton , Shaanxi SHACMAN , Sinotruck , Jac , Jmc , Isuzu ,Dongfeng all available .2.the drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4 3.We can provide LHD (left hand drive) or RHD (right hand drive) vehicles .4.Widely used in chemical enterprise, oil depot, storehouse, shop and terminal market.It also can be used as main fire truck for professional fire brigade of large and medium city. Water tank fire engine truck form 3000~18000 liters. Foam tank fire fighting truck from 3000~18000 liters Powder tank fire rescue tank truck from 3000~18000 liters. Water, foam ,powder together type, Customized.
| Item | Unit | Description | ||||||||
| Model | FTR Fire Fighting Truck | |||||||||
| Dimension | mm | 8005*2480*3470 | ||||||||
| Tank Dimension | m3 | Water Tank | Foam Tank | |||||||
| 4 | 2 | |||||||||
| Material | Stainless steel | Stainless steel | ||||||||
| Curb Weight | kg | 9605 | ||||||||
| Wheel Base | mm | 4500 | ||||||||
| F/R track base | mm | 1960 / 1855 | ||||||||
| F/R Axled-Load | Kg | 6300 / 13000 | ||||||||
| Approach/Departure angle | . | 21/13 | ||||||||
| Traction system | Type | 4*2 | ||||||||
| Max speed | Km/h | 90 | ||||||||
| Tire Specification/Number | Type | 10.00-20, 6+1 Spare Unit | ||||||||
| Engine | Model | 4HK1-TCG40 | ||||||||
| Emission/Kw | 5193 cc, 141 Kw / 2500 r | |||||||||
| Horse Power | 190 Hp | |||||||||
| Power | 640 N.m - 1600 r/min | |||||||||
| Type | Diesel, 6 cylinder, turbocharge, water cooling | |||||||||
| Brand | brand Engine | |||||||||
| Gear box | model | 6F&1R, Manual | ||||||||
| Electronic | V | 24 | ||||||||
| Cab | Person | 6 | ||||||||
| Type | Reversable, Manual | |||||||||
| Installing | Mp3 , Radio, Speaker | |||||||||
| Air Conditioner | Hot wind / Cooling wind | |||||||||
| Fire Cannon Specification on the top fo fire truck | ||||||||||
| Fire Cannon model | PS 30, water | Working Range | Water >50 m | |||||||
| Foam type, Optional Item | ||||||||||
| PP 24, mulity | Working Range | Foam >40 m | ||||||||
| Working angle | - 30 ~ 80 | Operation | Mannual | |||||||
| working pressure | 1~4 Mpa | |||||||||
| Flowing Speed | <50 L / s | |||||||||
| Fire Pump Specification | ||||||||||
| Fire Pump model | CB10/40 | |||||||||
| Flowing Speed | 40L/s | Pressure | 1.0 Mpa | |||||||
| Water input Port | DN 135mm x 1 | Water suction pipe | 8 m, one Unit | |||||||
| Liquid Output Port | DN 80mm x 2 , with ball valve control | |||||||||
| Liquid Output Port | DN 65mm x 2, with ball valve control | |||||||||
| Outside water input port | ||||||||||
| Liqid input Port | DN 65 x 2 Unit, at two side of fire truck | |||||||||
| Foam Tank Specifiation For Option | ||||||||||
| 2000 liter, pipe and valve are all stainless steel material | ||||||||||
| Installing | ||||||||||
| Long beem alarm light, light detector x2~12V60W, 5 Unit Window type warehous, Rear climp ladder | ||||||||||
| Spare List | ||||||||||
| Fire Pipe | DN 65 x 8 Unit | Fire Pipe | DN 80 x 4 Unit | |||||||
| Fire Pipe Length | 20 m | |||||||||
| Fire pipe protector | 4 | Fire Pipe storage | 1 | |||||||
| Fire Pipe Hocker | 4 | Fire extinguisher | 1 | |||||||
| Fire bucket | 1 | Fir axe | 1 | |||||||
| Fire Crowbars | 1 | Iron collars | 1 | |||||||
| Liquid port Connector | 5 Unit, Y type, U type, X Type | |||||||||
| Fire spanner | 2 Unit, Above ground fire hydrant, undergound hydrant. | |||||||||
| Spanner | 2 Unit, for sunction pipe | |||||||||
| Fire cannon | 3 Unit, two for water, one for foam ( Optional) | |||||||||
| Option Item | Fire cloth, addtion foldable stainless steel ladder, safety cabline. | |||||||||
Testing in factory before loading&delivery
