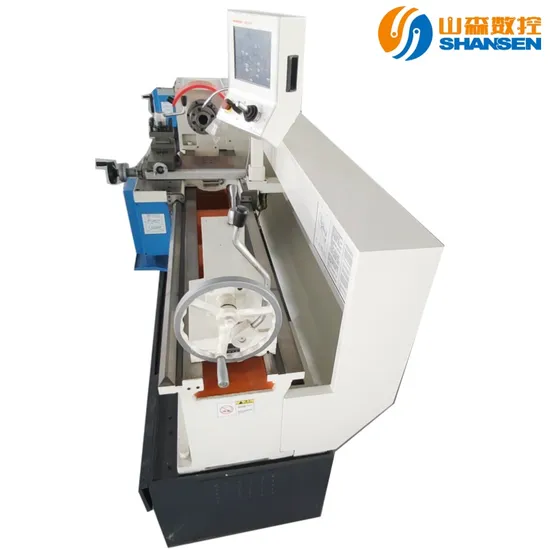

Shansen (CD6150-1000) Electronic Lathe Machine for Industrial Workshop
| US$7,500.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CD6150-1000
Type
Horizontal Lathe
Processing Accessory
Chuck Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Four-Station Tool Holder
Power Source
Servo Motor
Controlling Mode
Lathe Controller
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE
Condition
New
Model No.
CD6150-1000
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventio
Processing Precision
0.01~0.02(mm)
Numerical Control
CNC/Mnc
Swing Over Bed
500mm
Swing Over Carriage
290mm
Center Height
250mm
Max. Workpiece Length
1000mm
Max. Processing Length
950mm
3-Jaw Chuck Diameter
250mm
Packing Size
2650*1340*2000mm
Gross Weight
2160kg
Net Weight
2040kg
Transport Package
Box
Specification
Product size2430/1145/1740 mm
Trademark
SHANSEN CNC
Origin
Tengzhou, Shandong, China
Production Capacity
5000PCS/Years
Packaging & Delivery
Package Size
243.00cm * 114.50cm * 174.00cm
Package Gross Weight
2130.000kg
Product Description
https://cdfcd11d982fc597.en.made-in-china.com/product-list-1.htmlProduct Parameters
| ltems | Unit | MOdel CD6150-1000 |
| Swing over bed | mm | 500 |
| Swing over carriage | mm | 290 |
| Center height | mm | 250 |
| Max. workpiece length | mm | 2000 |
| Max. processing length | mm | 950 |
| 3-jaw chuck diameter | mm | 250 |
| Speed ranges | rpm | 16-1600 |
| Spindle bore | mm | 82 |
| Spindle taper | mm | Metric90 |
| Spindle nose | C8 | |
| Top slide travel | mm | 150 |
| Cross travel (X axis) | mm | 260 |
| Longitudinal travel (Zaxis) | mm | 1000 |
| Number of stations | 4 | |
| Tool shank size | mm | 25*25 |
| Quill travel | mm | 160 |
| Quill diameter | mm | 75 |
| Quill taper | MT5 |
Product Description
Electronic lathe is our company's electronic lathe series of products in the two specifications, is the company's independent research and development, with independent intellectual property rights of new products, is a substitute for ordinary lathe. Through mechanical and electrical coordination can be extremely convenient to complete the inside and outside cylindrical surface, conical surface, end face and all kinds of thread processing, suitable for machining, tool manufacturing, equipment maintenance and batch production of processing workshop use.
Features of the Electric Lathe
Save 10% cost than ordinary lathe.
It takes 3 years to learn to operate ordinary lathe, but it takes only 3 minutes to learn electric lathe.
Compared with the ordinary lathe, the performance of the electric lathe has been greatly improved, capable of turning threads of any pitch, and realizing cylindrical cycle cutting, thread cycle machining, fixed-length machining and so on.
Pitch feed, processing length, cutting speed, spindle speed, etc. can be set arbitrarily, without exchanging gears.
Detailed Photos
company
Certifications
FAQ
1.What type of company are you?
We are a manufacturer.
2.What can you buy from us?
Electronic Lathe, Terminal Block Module, Relay Module, Cable, LED Light, Sensor, Control Power Box Body, Push Button, Switchand Other Industrial Automation Control Products.
Please contact us if you do not find the product you want.
3.How about the quality of the products?
We can provide one year warranty for you and we have the certification of CE etc.,
