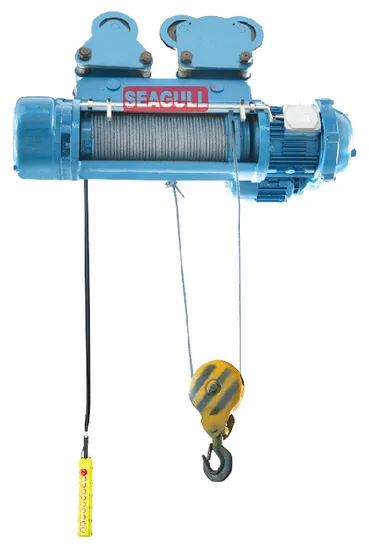

5t Three Phase/Single Phase Single Speed/Double Speed Electric Wire Rope Hoist

Product Description

Product Description
0.25T-10T CD/MD Type Electric Wire Rope Hoist STANDING THE TEST OF TIME

Key Strengths: Safety | Durability | Industrial-Grade Value
Ultra-Durable Coating
Advanced anti-corrosion "SEAGULL Blue" paint for long-term protection.

Safety First
Fire-resistant fan + gravity limit switch prevents overlifting.
Reinforced hook/pulley housing for extreme safety.
Heavy-Duty Performance
M4+ Duty Class: Double lifespan for intensive use.
Upgraded wire rope (16:1) & pulley (18:1) ratios.
Eco & User-Friendly
Leak-proof grease reduces environmental impact.
Wider hook design for easy loading.
Cost-Efficient
Low maintenance, high reliability, and 20-year service life.
Details:
TECHNICAL PARAMETER

CD(MD) WIRE ROPE HOIST CD1(MD1)0.25t-2t
Capacity		t	0.25	0.5	1	2
Lifing height		m	3 6 9 12	6 9 12 18	6 9 12 18 24 30	6 9 12 18 24 30
Lifting speed		m/min	8	8(8/0.8)	8(8/0.8)	8(8/0.8)
Running speed		m/min	20	20	20	20
I-Beam track modle(GB706-88)			12-20b	16-28b	16-28b	20a-32c
Min.Radius		m	1 1 1 1	1.5 2	1.5 2 2.5 3.5	1.8 2 2.5 3.5
Motor power		kw	0.4	0.8(0.8/0.2)	1.5(1.5/0.2)	3(3/0.4)
Running motor power		kw	0.06	0.2	0.2	0.4
L		mm	386 386 549 615	616 688 760 904	760 855 955 11501345 1540	820 920 1020 1220 1420 1620
L(MD1)		mm		626 698 770 914	770 865 965 1160 1355 1550	830 930 1030 1230 1430 1630
L		mm	104 104 267 333	318 390 462 606	401 499 597 793 989 1185	418 518 618 808 1018 1218
f		mm	386	490	645	754
B		mm	130	190	196	240
φ		mm	4-φ11	4-φ15	4-φ19	4-φ23
b		mm	90	120	127	155
f		mm	421 432	550 650	719 810	856 956
B max		mm	398 415	897	897	935
Weight 10%	CD2 Two direction movement, Single speed	kg	33 37 41 45	80 85 90 95	130 140 157 172 186 203	174 190 208 232 260 284
	CD1 Four direction movement, Single speed	kg	41 45 49 60	118 136 153 198	170 180 207 222 236 253	230 244 299 315 337 357
	MD2 Two direction movement, Double speed	kg		88 93 98 103	138 148 165 180 194 211	184 200 218 242 270 294
	MD1 Four direction movement, Double speed	kg		135 140 160 170	183 190 225 240 254 271	269 284 335 369 379 404

SPARE PARTS STORAGE
TESTING
PACKING
Main Product
Company Profile
Established in 1986, Changshu Seagull Crane&Hoist Machinery Co., Ltd. is a leading manu-facturer of lifting tools and equipments, including hand chain hoists, lever hoists, electric hoists, lifting clamps and more. With ISO9001:2015certification and TUV CE/GS approvals, we ensure top-quality products for global markets like the USA, Germany, Japan, and others. As a trusted OEM partner for international brands, we export 95% of our products worldwide. Our advanced testing facilities and strict quality control guarantee reliable performance. Over 50% of our clients have collaborated with us for more than 10 years, thanks to our consistent quality and excellent service.
SEAGULL is your reliable partner for innovative lifting solutions.
Our Advantages
Certificate&Exhibition
Packaging & Shipping
FAQ
About US
Q1 Manufacturer or Trading Company?
We are Manufacturer and trading company, based in ChangshuCity,Jiangsu Province. Focus: high-quality, safe lifting solutions.
Q2 Certifications?
ISO9001, CE, GS, ASME compliant. Certificates available upon request.
Q3 OEM/ODM?
Yes. Custom colors, logos, manuals,packaging.
Q4 Advantages?
Quality products, wide range, customization, competitive pricing, excellent after-sales service.
Products
Q1 Main Products?
Manual Chain Hoists, Electric Hoists, Electric Trolleys, Beam Trolleys, Beam Clamps, Lifting Clamps, Snatch Blocks, Permanent Magnet Lifters, Mechanical Jacks, Manual Winches, Webbing Slings, etc.
Q2 Manual Chain Hoist Capacity?
0.25 tons - 50 tons. Custom options available.
Q3 Chain Material?
High-strength alloy steel, heat-treated, EN818-7 compliant.
Q4 Electric Hoist Voltage/Control?
220V/380V/415V/440V,50Hz/60Hz. Hand & remote control options.
Q5 Choosing the Right Tool?
Consider load, height, environment, frequency, safety. Contact sales for assistance.
Q6 Product Catalog?
Request via contact form.
Orders&Payment
Q1 MOQ?
Varies. Different products with different MOQ. Please contact us for details.
Q2 Payment Methods?
T/T or L/C in USD/RMB/EUR.
Q3 Delivery Time?
30-60 days, but negotiable for urgent order.
Q4 Trade Terms?
FOB, CIF, CFR, negotiable
After-Sales Service
Q1 Warranty?
1 or 2 years warranty depends on different products, against defects (non-human caused).
Q2 After-Sales Support?
Contact sales representative, email
Q3 Technical Support?
Installation, debugging, maintenance assistance available.
Other
Q1 Samples?
Available on request. Fees may apply.
Q2 Become an Agent?
Contact sales team for details.
