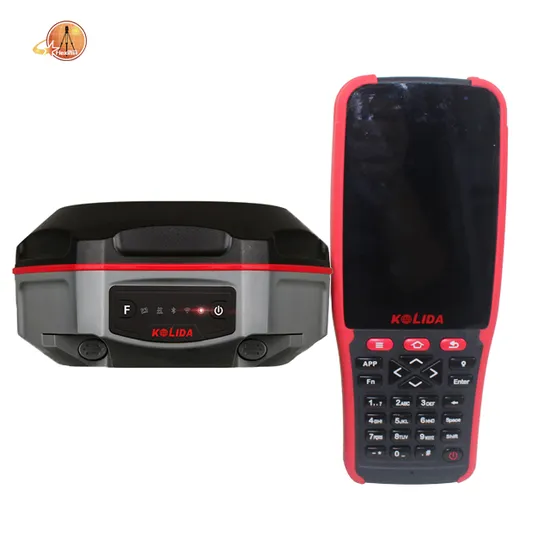

Kolida K5 K5 Plus+ Price GPS Gnss External Radio Base Station Receiver Rtk

Product Description

PRODUCT DESCRIPTION
KEY FEATURES
440 Channels
Enhanced endurance
Long range radio Link
WEB UI, WIFI, OTG
Android Application
Barrier-Free Measurement
PRODUCT SHOW
PRODUT SPECIFICATION

Survering Performance
Channel	440 Channels
Signal Tracking	BDS B1, B2, B3
	GPS L1C/A, L1C, L2C, L2E, L5
	GLONASS L1C/A, L1P, L2C/A, L2P, L3
	SBAS L1C/A, L5(Just for the satellites supporting L5)
	Galileo GOIVE-A, GOIVE-B, E1, E5A, E5B
GNSS features	Positioning output rate: 1Hz~50Hz
	Initialization time: <10s
	Initialization reliability: >99.99%
Positioning Precision
Code differential GNSS Positioning	Horization: ± 0.25m + 1ppm
	Vertical: ± 0.5m + 1ppm
	SBAS positioning accuracy: typically<5m 3DRMS
Static GNSS Surveying	Horization : ± 2.5 mm + 0.5 ppm
	Vertical: ± 5 mm + 0.5 ppm
Real-Time Kinematic Surveying	Horization: ± 8 mm + 1 ppm
	Vertical: ± 15 mm + 1 ppm
Network RTK	Horization: ± 8 mm + 0.5 ppm
	Vertical: ± 15 mm + 0.5 ppm
RTK initialization time	2~8s
User Interaction
Operating system	Linux
Buttons	Two button operation
Indicators	Three LED indicators lights
Web UI	Freely to configure and monitor the receiver by accessing to the web server via WI-FI and USB
Voice guide	iVoice intelligent voice technology provides status and voice guide
	Supporting Chinese,English,Korean,Russian,Portuguese,Spanish, Trukish and user define
Secondary development	Providing secondary development package
Hardware performance
Dimension	134×134×118 (mm)
Weight	1kg(including installed battery)
Material	Magnesium aluminum alloy shell
Operating	-45ºC~+60ºC
Storage	-55ºC~+85ºC
Humidity	100% Non-condensing
Waterproof/Dustproof	IP67 standard,protected from long time immersion to depth of 1m
	IP67 standard,fully protected against blowing dust
Shock and Vibration	Withstand 3 meters pole drop onto the cement ground naturally
Power Supply	9-25V DC, overvoltage protection
Battery	Rechargeable,removable Lithium-ion battery,7.4V; standard four batteries power package(optional)
Battery Life	Single battery: > 7h(static mode)
	> 5h(internal UHF base mode)
	> 6h(rover mode)
Communications and Data Storage
I/O Port	5PIN LEMO external power port + RS232
	7PIN external USB (OTG) + Ethernet
	1 radio antenna interface, SIM card solt
Wireless Modem	Built-in radio, 1W/2W/3W switchable,typical work range can be 8KM
	Raido and internet repater switchable
Frequency range	410-470MHZ
Communication protocol	Trim Talk450s,TrimMark3,PCC EOT,SOUTH
Cellular Mobile Network	WCDMA/CDMA2000/TDD-LTE/FDD-LTE 4G network modem, downward compatible with 3G GPRS/EDGE
Double Module Bluetooth	BLEBluetooth 4.0 standard,support for android,ios cellphone connection Bluetooth 2.1+EDR standard
NFC Communication (Optional)	Realizing close range(shorter than 10cm)automatic pair between receiver and controller(controller equipped NFC wireless communication module needed)
External Devices	Optional external GPRS/EDGE dual-mode communication module, switchable; allow to connect external WLAN card
WIFI
Standard	802.11 b/g standard
WIFI Hotspot	The WIFI hotspot allows any mobile terminal to connect and access to the internal webserver for the control and moditor receiver
WIFI data link	To work as the datalink that receiver is able to broadcast and receive differential data via WIFI
Data Storage/Transmission
Data Storage	8GB SSD internal storage
	Support external USB storage and automatical cycle storage
	Changeable record interval, up to 50Hz raw data download
Data Transmission	USB data transmission, supporting FTP/HTTP data download
Data Format	Differential data format: CMR+, CMRx, RTCM2.1, RTCM2.3, RTCM3.0, RTCM3.1,RTCM3.2
	GPS output data format : NMEA 0183, PJK plane coordinates, Binary code, Trimble GSOF
	Network model support: VRS, FKP, MAC, fully support NTRIP protcol
Inertial sensing system
Tilt Survey	Built-in tilt compensator, correcting coordinates automatically according to the tilt direction and angle of the centering rod
Electronic bubble	Controller software display electronic bubble, checking leveling status of the centering rod real time
Thermometer	Bulit-in themomter sensors, adopting intelligent temperature control technology which can mornitor and adjust the temperature of receiver in real time

PACKING & SHIPPING
PAYMENT
COMPANY INFORMETION
Shanghai Hexin Survey Instrument Co., LTD has 8 years' experience in geodetic surveying and cadastration surveying, we are a professional and leading enterprise in the surveying industry in MainlandChina. We specialize in the R&D and manufacturing and sales of all kinds of surveying products, including total station, electronic theodolite, electronic distance meter, automatic level, laser level, reflector prism, surveying accessory, GPS receiver, mapping software, etc.The marketing model advocated by us is not a simple sense of "selling products", instead, pre-sales service, services during operation and after-sales service are integrated in entire operating activities. It makes the customers feel that they purchased not only a commodity, but also a professional service.We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
FAQ
Q:How to turn off voice broadcast of receiver?
A: a. Enter the WEBUI, find the voice switch in the settings page and turn it off.
b. Controller Software→Device→Device Setting, turn off the "enable voice", and click"ok"
Q: Can the base station and rover station be interchangeable?
A: The difference between the rover station and the base station is that the accessories are different, the function and hardware configuration are the same.You can use the controller to choose the working mode of the device and set it as the base station or rover station.
Q: What is CORS?
A: CORS is called a continuous operating reference station system. It can be understood as a bas e station that is erected at a fixed known point and works continuously for 24 hours and sends its own data to a specific serverthrough the network. The use of CORS operation eliminates the need for a base station, and CORS is equivalent to a base station in a normal network operation.
