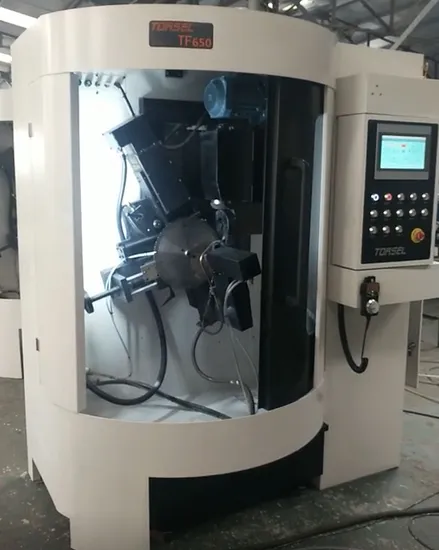

Top&Face Carbide Tipped Blade Sharpening Machine, Circular Saw Blade Sharpening Machine for Sale
| US$999.00-25,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TF650
Type
Tool Grinding Machine
Processing Object
Tct Saw Blade
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Grinding Surface
Teeth Top and Face
Weight
1600kg
Precison
<0.025
Power
4kw
Saw Diameter
110~700mm
Bore Diameter
12-120mm
Wheel Size
125mm*32mm
Wheel Speed
4000~5000r/Min
Hook Angle
-27~0degree
Top Angle
8-30degree
Face Bevel Angle
-30~30degree
Top Chamfer Angle
-45~45degree
Grinding Speed
1~20mm/S
Transport Package
PE Bag and Wooden Case
Specification
1800 X1200 X2030mm
Trademark
torsel
Origin
China
HS Code
8460310000
Production Capacity
100units/Month
Product Description
top&face carbide tipped blade sharpening machine for saleFAQ
1. What products do we have?
Four categories saw blade sharpening machine: 1. economic type: normal accuracy, normal saw blade diameters, lower price, suitable for tct blade. 2. accurate type: high accuracy, large diameter saw blade can be processed, suitable for tct blade. 3. sharpener with robot: robot auto picking and putting saw blade, suitable for mass production of tct blade. 4. cold saw blade sharpener: highest accuracy, suitable for cermet tipped saw blade.
Except saw blade grinding machine, we also supply Measuring Projector, Side Runout Inspection Machine, Radial Runout Inspection Machine, Automatic Belt Polishing Machine, CNC Router Bit Grinding Machine, Automatic Tooth Seat Grinding Machine,etc.
2. What are the advantages of our saw blade sharpening machine? 1) long service life: using quality cast iron base treated by high temperature tempering and vibration aging. no deformation and low vibration.
2) easy operation: CNC with friendly interface panel, all parameters can be set directly and stored directly. A machine can store up to 100 sets of data.
3) high efficiency: adjustable grinding speed, robot auto load, one person can operate several machines at the same time.
4) high accuracy: use quality machine components to realize high accuracy.
5) competitive price: price is very competitive for such good quality.
