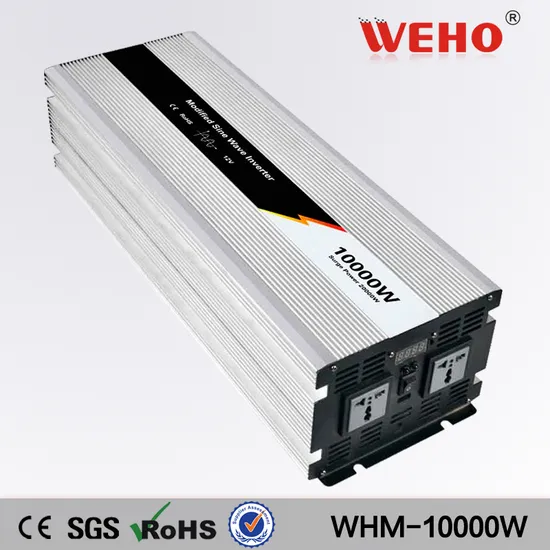

Modified Sine Wave Power Inverter 300W ~6000W DC Input 12V 24V 48V to AC Output 100V 110V 120V 220V 230V 240V Car House Inverter
| US$12.90-205.71 | 2 Pieces (MOQ) |
Basic Info.
Model NO.
WHM
Grid Type
off-Grid Inverter
Output Type
Single
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Type
DC/AC Inverters
Max. Output Efficiency
92%
Cooling Method
Fan Cooling (Temperature Control)
Peak Power
10000W
Output Waveform
Modified Sine Wave
Display
LED or LCD Display
USB Output Voltage / Current
5V 2A (Support QC3.0 Fast Charge up to 18W)
DC Reverse Connection Protection
Fuse Burnt
Transport Package
Standard Exporting Packing or by Your Requirements
Specification
450mm*230mm*120mm
Trademark
WEHO
Origin
China
HS Code
8504401400
Production Capacity
50000/Month
Packaging & Delivery
Package Size
49.00cm * 21.00cm * 15.10cm
Package Gross Weight
9.700kg
Product Description
WHM-5000 5000W DC to AC Inverter from China Manufacturer Modified Sine Wave Power Inverter Product Description NOTICE:1.We do have enough ability to produce your customized order.
2.Samples are available.
3.High quality and competive price.
4.1 years warranty, buy with confidence.
Product Parameters
| Model | M-5000W-12V | M-5000W-24V | M-5000W-48V |
| Output Power | 5000W | ||
| Peak Power | 10000W | ||
| DC Input Voltage Range | DC12V(9.5V-15.5V) | DC24V(19V-31V) | DC48V(38V-62V) |
| AC Output Voltage (Single Choice) | 100V/110V/120V/220V/230V/240V | ||
| Unload Current | ≤0.9A | ≤0.5A | ≤0.35A |
| Output Frequency | (50Hz±2Hz) or (60Hz±2Hz) | ||
| Output Waveform | Modified sine wave | ||
| Display | LED or LCD display | ||
| USB Output Votlage / Current | 5V 2A (Support QC3.0 fast charge up to 18W) | ||
| Max. Output Efficiency | 88% | 90% | 92% |
| Low Voltage Protection | "Alarm ""Bi"" with 2s interval +red and green lights flashing alternately restart automatically when voltage recover" | ||
| Over Voltage Protection | " Alarm ""BiBi"" with 1s interval +red and green lights flashing alternately restart automatically when voltage recover" | ||
| Over Load Protection | "Alarm ""Bi"" continously +red light flashing / restart automatically when load power recover; If it is closed after twice recover, it need restart manually." | ||
| Over Temp Protection | " Alarm ""BiBiBi"" with 1s interval +red and green lights flashing alternately restart when temp recover" | ||
| Short Circuit Protection | yes | ||
| DC Reverse Connection Protection | Fuse burnt | ||
| Low Voltage Alarm Range | 10.5v±0.5v | 21v±0.5v | 42v±0.5v |
| Low Voltage Protection Range | 9.5v±0.5v | 19v±0.5v | 38v±0.5v |
| Low Voltage Recover Range | 12v±0.5v | 23v±0.5v | 46v±0.5v |
| Over Voltage Protection Range | 15.5v±0.5v | 31v±0.5v | 62v±0.5v |
| Over Voltage Recover Range | 14v±0.5v | 28v±0.5v | 56v±0.5v |
| Working Temperature | -10ºC~50ºC | ||
| Cooling Method | Fan cooling (Temperature control) | ||
Packaging & Shipping
Certifications
FAQ Q1:Are you a factory or trading company?
A1:We are factory.
Q2:Why choose us?
A2:Our factory has been in operation for 17 years,We have enough experience to meet your needs.
Q3:How can I get the samples?
A3:You can pay for the sample this time, and we will refund the sample fee for the next batch order.
Q4:How to order?
A4:Please contact us online to send you a proforma invoice or send us your purchase order by email.
Q5:How many years warranty of your products?
A5: One years.
