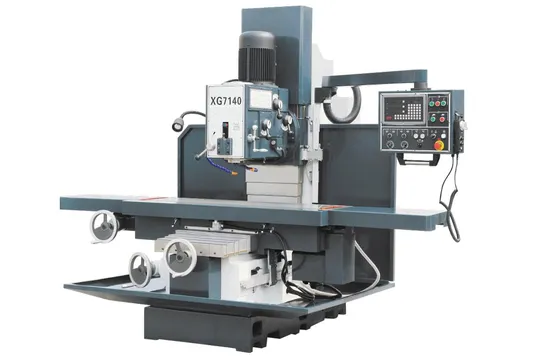

Bed Type (PLC Control) Milling Machine (XG7140)

Product Description

Bed Type (PLC Control) Milling Machine (XG7140)
Features:
1. High stength cast iron with aging treated to release the internal stress. Double estrawide rectangle guideways on the bed, large span, good rigidity, enlarge the load capacity, ensure the worktable moving stability and longitudinal ultimate travel precision reliability.
2. X, Y, Z guideways and worktable surface are hardened and precision ground.
3. The spindle runs on precision bearings, suitable for long term high speed running and heavy duty cutting, processing accuracy is stable and reliable.
4. Guideways with expansion metal cover for protection, avoding the ashes and metal chips to break the guideways.
5. Covergent operation panel makes operation more convenient, increasing work efficiency.
6. Precision ball rolling leadscrews transmit, double servo motors drive, ensure higher feed accuracy, and can realize 1-3000mm/min rapid cutting and idle feed, increasing efficiency.
7. Full gears transmitting headstock, ISO50 spindle through reconditioning, carburizing and quenching processes, decreases the strain to the lowest and increases the rigidity, suitable for high precision heavy duty cutting.
8. X, Y axes equipped with electric-magnetic clutches, can realize quick exchange between manual and power feed.
9. Three axes precision digital readout indicator(DRO), with electronic handwheel(MPG), extremely minimize the setting time. Controlling equivalent: 0.001mm.
10. Program controlled lubricating system, can realize multiple points and steps automatic lubricate.
Standard accessories:
1. Control switch box w/trotary arm
2. Chip tray & coolant system
3. Draw bar
4. Manual pulse generator
5. Mutomatic lubrication system
6. Machine vice
7. Milling chuck set(8PCS/set)
8. Reduction sleeve
9.24V work lamp
10. X/Y/Z 3-axis DRO
11. Dead head wrenches(22-24mm)
Optional accessories:
1. Air power draw bar
2. Rotary table
3. Universal dividing head
4. 58PCS clamping kits(M16)

Specification	XG7140
Spindle taper	ISO50
Diameter of quill	180mm
Distance from spindle to table	110-640mm(30-530mm)
Diatance from spindle to column	540mm
Spindle speeds	35-2000r.p.m(12steps)
Spindle travel	80mm
Head movement	±30°
Table size	1525x400mm(2100x400mm)
Longitudial table travel /X-axis	1200mm(1300mm)
Cross table travel travel /Y-axis	500mm
Vertical travel	500mm
X,Y-axis rapid feed speed	3000mm/min
Z-axis rapid feed speed	1800mm/min
Rate of feeding /Control mearsurement	1-3000mm/min 0.001mm
Max.weight of workpiece	600kg
T-slot Number/ Width/Distance	3/18mm/1335mm
Milling head moving(vertical) slide way	Rectangle slide way
Cross slide way	Rectangle slide way
Longitudinal slide way	Adjustable swallowtail slide way
Horse power for main motor	5.5kw(7.5HP)
X axis driving motor	(Servo motor)1.5kw
Y axis driving motor	(Servo motor)1.5kw
Controller type	PLC control
Coolant pump power	90w(25L)
Overall dimension	2825x2160x2150mm
Packing size	1900x2250x2280mm
N.W./G.W.	4260/4460kg
