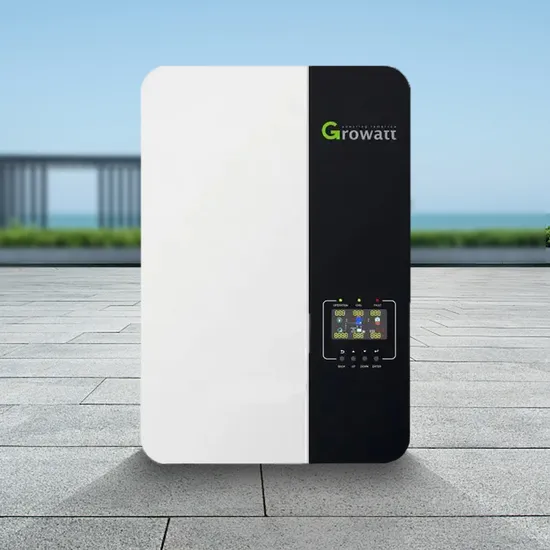

Growatt Single Phase 24V48V 230VAC Growatt SPF 5000 Es SPF 3500 Es 5kw 3.5kw off Grid Solar Inverter

Product Description

Product Description
Product Parameters

Output data (AC)	SPF 3500 ES	SPF 5000 ES
Battery Voltage	48VDC
Battery Type	Lithium/Lead-acid
INVERTER OUTPUT
Rated Power	3500VA/ 3500W	5000VA/ 5000W
Parallel Capability	Yes, 6 units maximum
AC Voltage Regulation (Battery Mode)	230VAC ± 5% @ 50/60Hz
Surge Power	7000VA	10000VA
Efficiency (Peak)	93%
Waveform	Pure sine wave
Transfer Time	10ms typical, 20ms Max
SOLAR CHARGER
Maximum PV Array Power	4500W	6000W
MPPT Range @ Operating Voltage	120VDC ~ 430VDC
Maximum PV Voltage	450VDC
Maximum Solar Charge Current	80A	100A
AC CHARGER
Charge Current	60A	80A
AC Input Voltage	230 VAC
Selectable Voltage Range	170-280 VAC ; 90-280 VAC
Frequency Range	50Hz/60Hz (Auto sensing)
PHYSICAL
Protection Degree	IP20
Dimension (W/H/D)	330/485/135mm	330/485/135mm
Net Weight	11.5kgs	12kgs
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Altitude	<2000m
Operating Temperature	0°C - 55°C
Storage Temperature	-15°C - 60°C

Production Process

Project Case
Packaging & Shipping
FAQ
Q1: How to install and use the solar inverter?
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to you.
Q2: What if I don't have import experience ?
A2: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep. Any way, we will help you choose the most suitable shipping service.
Q3:Can you provide the free shipping to sea port ?
A3:Yes, we provide the free shipping to your convenient sea port.If you have agent in China, we can also ship it to them for free.
Q4: How is your technical support?
A4: We provide online service through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
Q5: Can you get the the solar inverter customized for us ?
A6: Of course, brand name, machine color, designed unique patterns available for customization.
Q6:What can you provide?
A8:Residential/Home solar system, Rooftop solar power station, Large-scale ground-mounted solar power station, Agriculture-complementary Solar Power Station, Aquaculture-complementary Solar Power Station.
