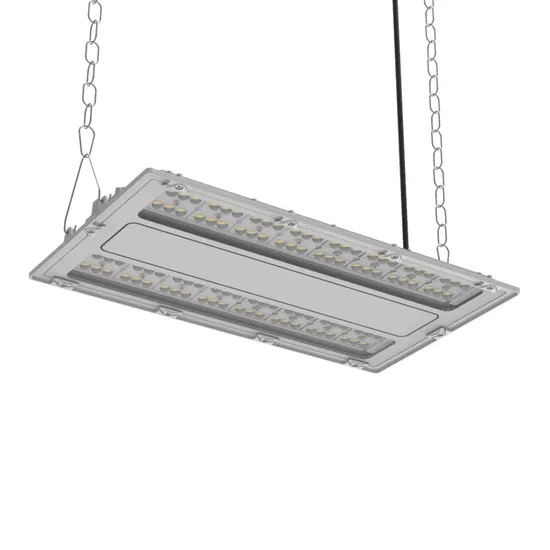

0-10V Dimming 260W 100W 200W Linear LED High Bay LED Light for Warehouse Lighting 170lm/W with ETL/cETL/FCC/CE

Product Description

Product Description
In industrial and commercial settings, excessive glare from high bay lights can significantly interfere with work operations and pose safety risks. For instance, overwhelming glare may obstruct a forklift driver's line of sight, leading to the potential for falling loads or personal injuries. The JR-ZKHB03A series LED linear high bay light is designed to provide uniform, low-glare, safe, and comfortable lighting solutions, making it an excellent choice for a variety of applications. This product is particularly suitable for environments such as parking lots, gymnasiums, workshops, clothing stores, supermarkets, and, importantly, warehouse lighting.
Technical Specifications

Input Voltage	AC100-277V 50/60Hz
Power Factor	PF>0.9
Input Power	100W (Optional 200W/260W)
Efficiency	160-170lm/w
Color Index	Ra>83
Lifespan	50,000 hours
Lumen maintenance @6000h	>80%
Operation Temperature	-40°C ~ +50°C
IP Rating	IP65
CCT(Single color)	3000K -4000K-5000K- 6000K
Material	Aluminum + PC

Features The JR-ZKHB03A series offers a range of power options, including 100W, 200W, and 260W, with lumens efficacy reaching up to 170 lm/w. Standard features include 0-10V dimming capabilities, with beam angles available in 30°, 60°, and 90°. Each unit is carefully sealed to achieve IP65 grade protection, ensuring durability in various environments. You can choose from multiple color temperatures: 3000K, 4000K, 5000K, and 6000K (designed with single CCT). This high bay light operates within a wide voltage range of standard AC120-277V, with optional HVU at 347V/480V.
Its elegant design combines high-quality, one-piece die-cast aluminum housing that guarantees exceptional quality and performance, featuring a surface painting process that resists fading and cracking. The aerodynamic design effectively dissipates heat, maintaining lower temperatures for the heat sink and LED chip, which contributes to a longer lifespan and higher light efficiency.
Installation is versatile with two methods: pendant installation and surface mounting, both utilizing 304 stainless steel screws for enhanced corrosion resistance. The high-quality components include SMD3030 LED light sources, reliable LED drivers, copper wiring, and a transparent lens that ensures excellent light uniformity while significantly reducing glare-an essential feature for effective warehouse lighting. The projected lifespan of this product is an impressive 50,000 hours, with operational capabilities in temperatures ranging from -40°C to 55°C (-40°F to 131°F). It comes with ETL, CETL, CE, RoHS, and FCC approvals, along with a 5-year warranty. Optional features include a pluggable sensor, adjustable power and CCT settings, IK08 ratings, and an emergency battery backup.
Applications Warehouses, Factories, and Food Storage Facilities Car Parks, Sports Facilities, and Gas Stations Shipping Centers, Hospitals, and Universities Suitable for Indoor/Outdoor Wet Locations and Special Environments Variations

Model	Length	Power	Led type	Lumens (lm) ±10%	Package
JR-ZKHB03A038-100D	1.0 FT	100W	SMD3030	16000	43*34*17 (cm) 2pcs/ctn
JR-ZKHB03A048-200D	1.5 FT	200W	SMD3030	32000	53*34*17(cm) 2pcs/ctn
JR-ZKHB03A059-260D	2.0 FT	260W	SMD3030	41600	63.5*35*18(cm) 2pcs/ctn

Dimension illustration
Package introduction
Technical details
Remark: IES files and other technical documents are available upon request. This product is specifically designed to enhance warehouse lighting, ensuring a safe and productive environment for all operations.
Installation
Option 1: Pandent
Option 2: Surface Mount Remarks:
* Customized production is accepted with MOQ to be discussed. e.g. with optional emmergency battery, with optional sensor, Optional dimmable function, etc.
*Price for reference only, please always confirm with us on the price and specification before you make an order.
*To prevent electric shock, maintenance and installation must be performed exclusively by a qualified electrician. *Please ensure usage within the specified input power range. *Refrain from utilizing this product in outdoor environments. *Prior to installation, power must be disconnected to ensure safety. *Refer to the provided diagram for proper installation guidance.
Applications at a glance
OEM & ODM Service: We have the capability to meet most of your requirements for LED high bay products, grow lights, T8/T12 tube lights, tunnel lights, and more. Through our OEM/ODM division, you gain access to our extensive expertise in all aspects of lighting: power, control, lamps, and LEDs.
We provide complete customization options, allowing you to tailor the product to your brand's specific needs. This flexibility extends beyond aesthetics and covers engineering and manufacturing, including power sources, optical lenses, and cutting-edge thermal management solutions.
About us:
Product testing:
Packing &Loading:
FAQ
Q1. Can I have a sample order for led light?A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.Q2. What about the lead time?A: Quick delivery time 3-5 working days for sample order, 12-20 working days for bulk orders.The actual delivery time depends on order quantities and production plans.Q3. Do you have any MOQ limit for led light order?A: Low MOQ, 1pc for sample checking is availableQ4. How do you ship the goods and how long does it take to arrive?A: We usually ship by sea, DHL, UPS, FedEx also optional, It usually takes 3-10 days to arrive.Q5. How to proceed with an order for led light?Step 1: Let us know your requirements or application.Step 2: We offer quotations or solutions for you according to your requirements.Step 3: You confirm the order and place deposit for formal order.Step 4: We arrange the production.Q6. Is it OK to print my logo on led light product?A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.Q7: Do you accept customized?A: Yes, we accept customized. OEM/ODM service is available. For more solutions please contact us.Q8: Do you offer guarantee for the products?A: Yes, we offer 3-5 years warranty to our products.
