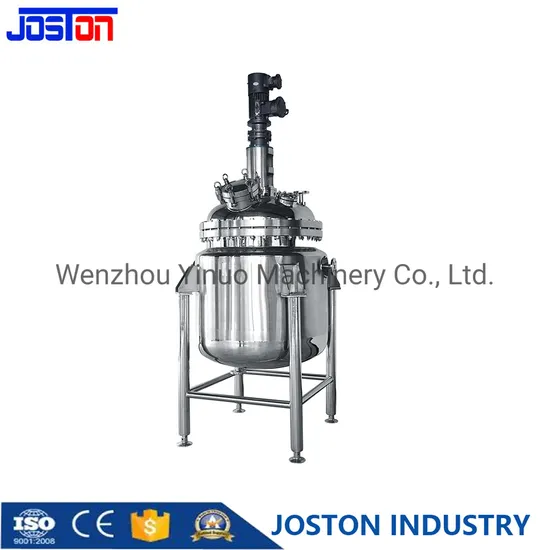

Laboratory Equipment SS316 Stainless Steel Crystallizer Reactor Chemical Liquid Solvent Solution Mixing Storage Tank with Agitator

Product Description

Laboratory Equipment SS316 Stainless Steel Crystallizer Reactor Chemical Liquid Solvent Solution Mixing Storage Tank With Agitator used to perform a chemical reaction, distillation, crystallization, mixing, and isolation of materials etc. in ,food ,sea water ,waste water ,API manufacturing facility, chemical industry, etc.

Advantages: 1: The ratio of the total cross section of the heating tube to the cross section of the falling liquid can reach 2, so the convection circulation is good; 2: It is easy to unload sugar; 3: The condensate water is completely discharged; 4: The forced circulation crystallizer improves the heat transfer coefficient and evaporation intensity, and accelerates the crystallization speed. Overview of crystallizer crystallizer (seed tank, fermentation tank, enzymolysis tank) is widely used in pharmaceutical, fine chemical, bioengineering and other industries. The tank body and upper and lower heads (or cones) are processed by spinning R angle. The inner wall of the tank is polished by mirror, and the finish RA ≤ 0.4 μ m. There is no hygiene dead angle. The fully enclosed design ensures that the materials are always mixed and fermented without pollution. The equipment is equipped with air respirator, cleaning ball, sanitary manhole, sight glass and other devices. Pharmaceutical, fine chemical and biological products fermentation tanks adopt aseptic system to avoid and prevent the pollution of microorganisms in the air, greatly extending the retention period and purity of your products. We specially design and install aseptic breathing hole or aseptic positive pressure fermentation system on the tank. Heating or cooling medium can be introduced for circulating heating and cooling. All parts in contact with materials are made of stainless steel SUS304 or SUS316, insulation is made of polyurethane foam or pearl cotton, and the outer surface is frosted and Matt, which meets GMP standard. Stainless Steel High Quality Jacketed Crystallizer Reactor Tank is specially designed equipment with agitator and gearbox with flameproof electrical motor. Agitator is used for proper mixing, eddy formation, Vortex formation as per requirement. Agitator types are decided based on process requirement.

Technology data Specification for Laboratory Equipment SS316 Stainless Steel Crystallizer Reactor Chemical Liquid Solvent Solution Mixing Storage Tank With Agitator

Model Item	JJG-500	JJG-1000	JJG-3000	JJG-5000	JJG-10000
Tank work volume:L	500	1000	3000	5000	10000
Motor power:Kw	2.2	3.0	4.0	5.5	15
Agitator speed :RPM	0-100
Inside shell pressure MPa	-0.1/0.3 (can be done as client's URS)
Jacket pressure MPa	0.3 (can be done as client's URS)
Jacket heating medium	Steam /hot water/electrical heating
Cooling medium	Chiller /cooling water /tap water

Packaging Details
Under normal circumstances, we will use PE wrapping film for part of the product, then use wooden case packaging, or according to the special requirements of the customer packaging;If exported to European countries, we will fumigate the wooden cases.
Shipping Details
Under normal circumstances, we will use trucks to transport products to Qingdao port;Or according to customer requirements, choose the most convenient, the most economic mode of transportation.
FAQ
Q :What about your factory?
A :Our factory is located in Wenzhou city ,Zhejiang Province and have more than 15 years experience on machinery making.
Q :How long the warranty will be?
A :We provide 1 years warranty for the machine running ,but we will afford whole -life service for the machine .
Q :Which kind payment do your company do now ?
A :We accept Western Union, T/T ,D/P,D/C and irrevocable L/C payable etc.
Q :Do you supply installation equipment in oversea?
A :Yes, if need, we can send our engineer to your plant to help you do installation and commission.
Q :How can we know the order production status ?
A :We will arrange the person to take photo or video during manufacturing in every week to make you to know the production status.When goods are finished,we will take detailed photos or video for your checking ,after approve ,then we will arrange shipment .also you can arrange FAT in our plant when the goods is ready here.
Q :how about your company after-sale serivce ?
A :1. We provide long-term after-sale service.
2. we can do installation and commission for the equipment in your plant if necessary .
3. Meanwhile, you can call or e-mail us to consult on any relevant question since we have a special line for after-sale service. Alternatively, you can communicate on-line with us to solve any problem.
