Leyo New Machine Centre Wet Machining 5 Axis CNC Milling Machine for Graphite 3 Axis CNC Machining Center

Product Description

Items	Unit	Data
X/Y/Z axis travel	mm	600/400/350
X/Y/Z axis fast moving speed	mm/min	48
X/Y/Z axis cutting feed rate	mm/min	20
Workbench size (L × W)	mm	700*420
Maximum load	kg	300
Spindle speed	rpm	20000/24000
Spindle motor power	KW	5.5
Spindle taper hole	mm	BT30
T-groove	mm	3*14*125
Distance from spindle nose to workbench	mm	135-480
Spindle center to column surface	mm	420
controller		LNC/SYNTEC/Mitsubishi/FANUC/Siemens
Tool magazine	T	24
Maximum tool diameter (adjacent empty position)	mm	50(120)
Maximum tool length	mm	250
Maximum tool weight	kg	3
Tool change time (adjacent empty position)	Sec	1.6
Unit precision	mm	± 0.005
Repetitive positioning accuracy	mm	± 0.003
Machine size (L × W × H)	mm	2200*2250*2300
Machine weight	kg	3500
Power requirements	KVA	10
Air pressure requirements	kgf/cm²	6
Gas flow	m²/min	0.15

Characteristics of graphite machining
1.Graphite is corrosive, conductive and thermally conductive.
2.The powder produced in the processing process is easy to enter the machine, affecting the service life, stability and processing accuracy of the core components and the machine.
3.Therefore, the protection design of each core component of the machine is particularly important.

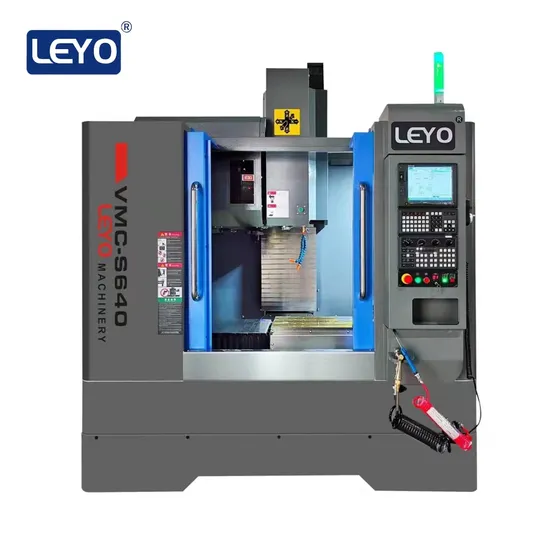

LEYO VMC S640 Protective design features of graphite special machine
To prevent 98% graphite dust from entering the fuselage and ensure the service life, stability and machining accuracy of the machine.
1. The machine adds metal protective covers to the core components of screw rod, linear guide, motor,spindle and magazine.
2. The xyz axis screw rod&linear guide has three layers of protective covers , the first layer of metal protection, the second layer of organ shield protection and the third layer of metal armor protection.
3. Closed top cover design.
4. Protection of grease core components,automatic oiling function is standard function, can effectively protect the core components of machine in processing
Dongguan Liyang Intelligent Technology Co., Ltd., located in Houjie Town, Dongguan City, Guangdong Province, China, is a manufacturer of CNC machine integrating industry and trade. Its main products are high-end 3-5 axis CNC milling machines like high-speed cnc milling machines, gantry milling machines, etc; cnc machining center like vertical machining center, horizontal machining center, vertical horizontal dual-use machining center, compact machining center, etc; and cnc lathe, etc. These machines are mainly used in the producing and machining of parts and molds in 3c electronics, automobiles, instruments and meters, electronic appliances, medical devices, aerospace, machinery manufacturing, new energy vehicles, 5G communication industries and other industries. Our company has obtained several utility model patents and invention patents, CE certificates, ISO9001 quality management system certificates, and factory strength certification from SGS, TUV and other international testing and certification institutions. Our machinery and equipment are sold to the domestic and foreign markets. The main domestic markets are Guangdong, Zhejiang, Fujian, Sichuan and many other provinces. The international market is mainly exported to Europe, Central Asia, Southeast Asia and other countries. Our goal is to provide the world with high-quality CNC machine.
About LEYO service
1. Customized service
1. Design logo for free or remove logo services.
2. Free design of sheet metal. If you want the color of the machine appearance to be consistent with the color of your company's brand or factory decoration, we also provide free custom sheet metal design services.
3. Customized machine configuration for free. Customized according to customer configuration requirements, such as the brand and model of screw rod and linear guide rail, the brand power and speed of spindle, the brand and model of controller, and the type of tool magazine.
4. Customized special machines for free. If you have special requirements on the material, process, precision and efficiency of the products you are processing, we can customize the models based on the products you are processing.
5. Free design of automatic production line.
The customization quantity and price will vary according to the complexity of customization.
2. One stop procurement service
Provide accessories, four five axis turntable, tailstock, tool setting instrument, measuring head, chain chip conveyor, etc. Consumables like tools, tool handles, tool carts, tool boxes, etc.
3. Free online and offline after-sales service
The warranty period of all models is one year, and spare parts and online and offline after-sales services are provided free of charge within one year. However, the travel expenses of after-sales personnel need to be paid by the customer, such as transportation, board and lodging.Lifetime free online after-sales technical guidance service.
