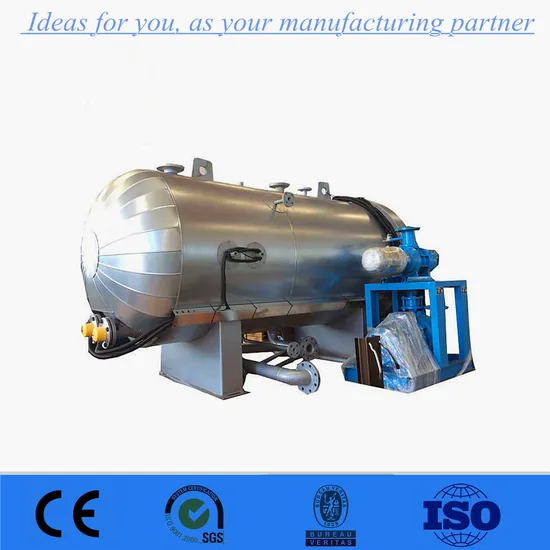

Electric Heating Autoclave for Rubber Vulcanization
| US$5,000.00-100,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HT-AUT
Certification
CE, ISO
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Horizontal
Power(W)
Depends on Machine Size
Dimension(L*W*H)
Customized
Weight
Customized
Application
Rubber Product Curing
Feature
Energy-Saving
Raw Material
Q345
Heating Mode
Conduction Oil,Steam, Electrical
Heating Method
Thermal Oil, Steam &Electrical Heating
Door Open Method
Manual or Automatic
Warranty Time
2 Years
Voltage and Frequency
Y: 220V/380V/415V (3 Phase), 50/60 Hz
Technology Service
Technology Service:
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Transport Package
PE Film, Pallet
Specification
customized
Trademark
Evertech
Origin
Qingdao, China
HS Code
84778000
Production Capacity
50 Set/Sets Per Month
Product Description
rubber vulcanization autoclave a) Advanced design and high qualityb) Long life
c) Environment friendly and energy saving
d) Good reputation and best technology service
e) Heated method: thermal oil, steam &electrical heating
f) door open method: by manual or manual
The main technical parameters:
| Model | autoclave |
| design temperature | 180ºC(for steam) |
| max. working temperature | 171ºC |
| design pressure Mpa | 0.85Mpa |
| Max.working pressure Mpa | 0.55Mpa |
| The inner diameter of tank | Customized |
| Effective length of tank | customized |
| Material of tank body | Q345R |
| The door opening method | 1,by electric motor, 2,by manual |
| Sealing ways | Inflatable silicone seal(lifetime 1-2years) |
| Safe way | Double safety lock on door. Triplex safety lock on tank |
| Alarm way | Automatic alarm when over pressure and self-relieving |
| Temperature uniformity | ±1-2ºC |
| pressure error | <±0.01mpa |
| control program | intelligent control unit /PLC controlling |
| Orbital model and weight loading | GB18 |
