High Consistency Pulper for Testliner Paper Processing

Product Description

High consistency pulper for testliner paper processing
About Greatland
GLM is devoted to the technological development of the pulp and paper industry and works together with senior experts for updating or rebuilding it as well. In addition, it can provide one-stop service regarding project plan and design, staff training, technical support and more with our new customers.
The Factory View

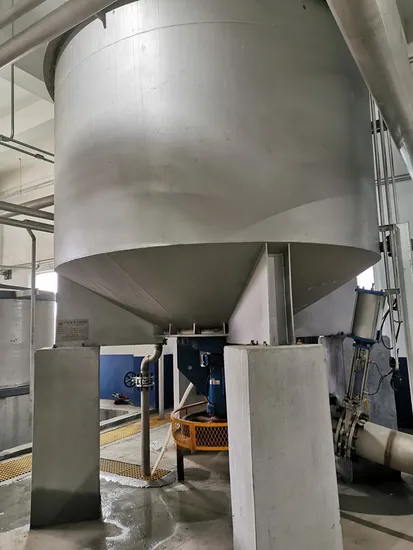

High Consistency Pulper
Application:
It is used to disintegrate waste paper under high concentration in the deinking process.
Design Features:
Compact structure and high rotation efficiency.
The three-line spiral tower rotor can effectively promote the circulation of the slurry and enhance the friction between the fibers of the slurry. It can achieve a gentle beating at a high concentration state, while dissolving the fibers without breaking the impurities.
Specification: 2.5-50m3.
Process ability: 10-360TPD.
Technical Parameters:

Model	Capacity (TPD,24hours)	Nominal Volume(m3)	Stock Consistency(%)	Motor Power (KW)
ZDSH1	7-10	2.5	10-15	55
ZDSH2	20-25	5	10-15	110
ZDSH3	30-35	8	10-15	185
ZDSH4	40-50	10	10-15	220
ZDSH5	60-70	15	10-15	310
ZDSH6	80-100	20	10-15	400
ZDSH7	130-185	25	10-15	450
ZDSH8	160-225	30	10-15	500
ZDSH9	185-260	35	10-15	560
ZDSH10	210-295	40	10-15	630
ZDSH11	235-330	45	10-15	710
ZDSH12	260-360	50	10-15	800

After-service
1. Professional exporting package for shipment and professional exporting process service.
2. Professional inspection and inspection document.
3. 12 months free warranty from the day you receive the pulper.
4. Engineers team support for the production.
