3Ply Carton Box Corrugated Cardboard Production Line
| US$100,000.00-200,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YK-3-1800-100
Condition
New
Certification
ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Paper
Paper Thickness
Corrugated Cardboard
Type
Corrugated Paper Making Machine
Application

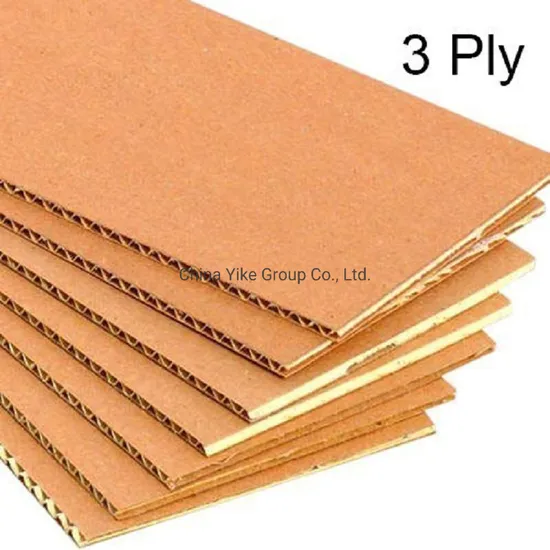

3ply Corrugated Cardboard
Place of Origin
Dongguang, Hebei
Width
1800/2000/2200mm
Speed
100/150/200/250m/Min
Flute Type
a,B,C,E,F Flutes
Machinery Test
Yes Provide
After Warranty Service
Video Technical Support, Zoom Meeting Online
Other Service
Spare Parts Support
Voltage
380/415/440V
Transport Package
Plastic Film
Specification
YK-3-1800-100
Trademark
YIKE GROUP
Origin
China
HS Code
84413090
Production Capacity
50sets/Month
Product Description
Corrugated Paper Making Machine 3Ply Corrugated Cardboard Production Line
| Specification | Equipment name | UNIT | QTY | Remark |
| ZJ-F | Shaftless mill roll stand | a | 3 | Expand chuck, manual disc brakes, Mechanically - actuated lift, panning left and right on the middle, track length6000mm,trolley used 10mm medium plate welding |
| Paper trolley | a | 6 | ||
| RG-1-600 | Top paper preheater | a | 1 | Roller¢600mm, including pressure container certificate.Electric adjustment wrap angle. Wrap angle can adjust the paper preheat area in the range of 360°. |
| RG-1-600 | Core paper preheater | a | 1 | Roller¢600mm, including pressure container certificate. Electric adjustment wrap angle. Wrap angle can adjust the paper preheat area in the range of 360°. |
| SF-280S | Corrugated single facer | a | 1 | Corrugated main roller¢280mm, a material with 48CrMo alloy steel, independent gearbox, universal joint transmission structure |
| RG-2-600 | Double preheater | a | 1 | Roller¢600mm, including pressure container certificate.Electric adjustment wrap angle. Wrap angle can adjust the paper preheat area in the range of 360°. |
| GM-12 | Double glue machine | a | 1 | Glue roller diameter 215mm.Each independent frequency motor drive, manual adjustment glue gap. |
| DF | Conveyor bridge | set | 1 | 200mm main beam channels, independent inverter motor drive pull paper feed, adsorption tension. |
| SM-10 | Double facer | set | 1 | Dryer section 9 heating plate, hydraulic lifting roller, using intensive pressure roller. |
| ZQS | Thin knife slitting | set | 1 | Electric thin blade, electric detuning, five knives eight lines, blade with tungsten alloy steel making. |
| NC-120 | NC cutter helical knives | a | 1 | Full AC servo control, energy storage brake, helical blade structure, oil-immersed gears, 10.4-inch touch screen display. |
| DMT-120 | Paper sheet delivery and side conveyor | a | 1 | Electric adjustment cardboard size, pneumatic control transverse output paperboard. |
| ZJZ | Glue station system | set | 1 | Customer-owned pipeline glue device respectively carrier pot, main pot, storage pot and send glue pump, back glue pump. |
| QU | Gas source system | a | 1 | The gas source is prepared by the customers. |
| ZQ | Steam system | set | 1 | Including equipment pipelines valves, traps, meter and steam elements, customer-supplied heat, and piping. |
| DQ | Electrical control cabinet system | set | 1 | Electronic control system: fingerless single facer, driving part, NC thin blade slitter scorer, double facer, glue machine all adopt frequency motor, delta frequency control system. operation interface easy and convenient, Speed display control cabinet with each unit speed display, the unit call, emergency stop function. The main relays brand. |
| Total price | Fob Tianjin port price: USD220,100 Discount offer: Contact Grace to get a discount price. Payment: 30% T/T in advance, balance paid before shipment Delivery time: Within 5-8 months Price period: One month | |||
