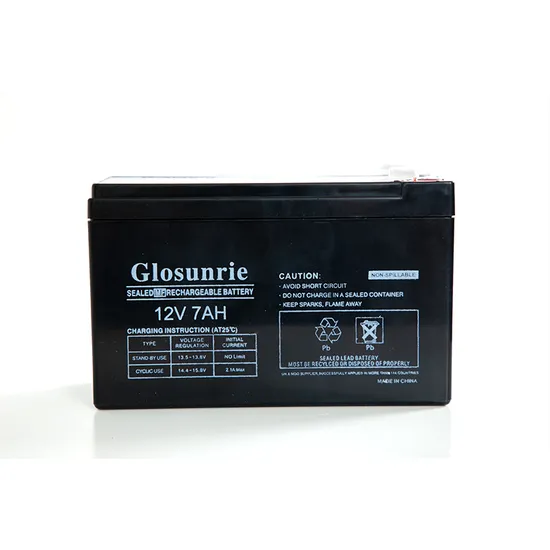

Solar 12V 7ah 7.2ah 9ah 12ah Rechargeable Gel Storage Battery for Solar Home Power System Lead Acid Sealed UPS Battery
Basic Info.
Nominal Voltage
12V
Discharge Rate
Low Discharge Rate
Shape
Square Battery
Electrolyte
Gel+Acid
Installation
Packaged
Rechargeable
Chargeable
Casing
ABS
Expected Cycle Life
15~20 Years
Warranty
3years
Certificates
CE, IEC, ISO
Transport Package
Sea
Specification
576*212*770*802mm
Trademark
AS SOLAR
Origin
Jiangsu, China(Mainland)
HS Code
8507200000
Production Capacity
36000 PCS/Year
Packaging & Delivery
Package Size
80.00cm * 50.00cm * 30.00cm
Package Gross Weight
3.200kg
Product Description
General Series VRLA batteries are designed with AGM(AbsorbentGlass Mat) technology,High performance plates and electrolyte togiveextra power output for common power backup system. General SeriesBatteries are the general purpose batteries with 5 years floating designlife at 25 ºC
Battery Model | Nominal Voltage | 12V | ||||||||
| Rated capacity (10Hour rate) | 7Ah | |||||||||
| Cells Per battery | 6 | |||||||||
Dimension | Length | Width | Height | Total Height | ||||||
| 151mm | 65mm | 94mm | 100mm | |||||||
| Approx Weight | 2.05Kg | |||||||||
| Internal Resistance | Full charged at 25 | (77 | ): Approx 28m | |||||||
| Max.discharge current | 105A(5s) | |||||||||
| Floating design life @ 25 (77 ) | 5 years | |||||||||
Capacity @ 25 (77 ) | 20Hour rate(0.35A/10.5V) | 10Hour rate(0.64/10.8V) | 5Hour rate(1.2A/10.8V) | 1Hour rate(4.2A/10.5V) | ||||||
| 7Ah | 6.4Ah | 6Ah | 4.2Ah | |||||||
| Capacity affected by Temp(10 HR) | 40 | (104 | ) | 25 (77 ) | 0 (32 ) | -15 | (5 | ) | ||
| 102% | 100% | 85% | 65% | |||||||
Self Discharge @ 25 (77 ) | After 3 months storage | After 6 months storage | After 12 months storage | |||||||
| 91% | 82% | 64% | ||||||||
Charge method @ 25 (77 ) | Cycle Use | 14.5-14.9V (Initial charging current less than 2.1A) | ||||||||
| Float Use | 13.6-13.8V | |||||||||
| F.V / TIME | 5min | 10min | 15min | 30min | 1h | 2h | 3h | 4h | 5h | 8h | 10h | 20h | |
9.60V | A | 25.20 | 16.45 | 12.25 | 8.05 | 4.20 | 2.45 | 1.82 | 1.45 | 1.23 | 0.81 | 0.67 | 0.36 |
| W | 267.12 | 174.70 | 131.08 | 86.94 | 45.78 | 26.71 | 20.02 | 15.91 | 13.51 | 9.00 | 7.38 | 4.02 | |
10.20V | A | 23.10 | 15.46 | 11.26 | 7.64 | 4.34 | 2.35 | 1.79 | 1.40 | 1.20 | 0.80 | 0.65 | 0.35 |
| W | 251.79 | 171.59 | 125.53 | 85.97 | 48.83 | 26.56 | 20.17 | 15.89 | 13.67 | 9.06 | 7.38 | 4.01 | |
10.50V | A | 21.42 | 14.77 | 10.50 | 7.41 | 4.20 | 2.30 | 1.75 | 1.33 | 1.19 | 0.79 | 0.64 | 0.35 |
| W | 235.65 | 166.16 | 118.65 | 84.45 | 47.88 | 26.38 | 20.04 | 15.30 | 13.69 | 9.06 | 7.41 | 4.03 | |
10.80V | A | 19.51 | 14.12 | 9.80 | 7.07 | 4.06 | 2.25 | 1.72 | 1.31 | 1.14 | 0.77 | 0.63 | 0.34 |
| W | 214.57 | 160.93 | 112.21 | 81.66 | 46.89 | 25.94 | 19.89 | 15.22 | 13.25 | 8.94 | 7.31 | 3.98 | |
11.10V | A | 16.87 | 13.30 | 9.10 | 6.58 | 3.85 | 2.19 | 1.65 | 1.28 | 1.09 | 0.75 | 0.61 | 0.33 |
| W | 190.63 | 153.62 | 105.56 | 76.99 | 45.05 | 25.59 | 19.33 | 15.14 | 12.84 | 8.81 | 7.23 | 3.92 | |
