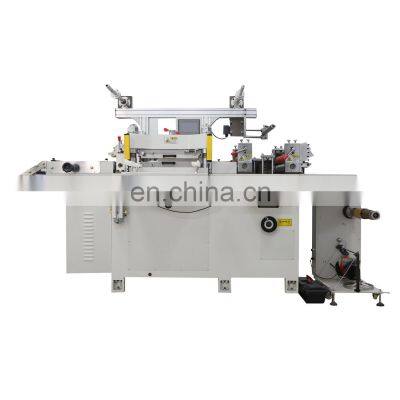

Automatic Roller Label Die Cutting Machine

Product Description

Product Description
Product DescriptionAutomatic Roller Label Die Cutting Machine Product DescriptionCHARACTERISTICS:Machine this with flat to flatten high-accuracy mould cut, tow material and cut into slices controller by the computer, both sidesof printing mark and its vertical is accurate to follow and make a reservation by three photoelectric eyes, mould cut, charge andabolish, cuts in to slices or winding using for auto-sticking machine completed by once. It is suitable for Paper do glue trademark, Dacron membrane trade mark and laser false mould of trade mark cut very. This model is the auxiliary of flexible editionprinter, continuous silk printer, intaglio printer, and anti-counterfeit trade mark mould cutter, and the best for each printinghouse. Main technical Parameter:Model: 320 model Cutting speed: 20-125m/min Max. Putting diameter: 450mm Max. Mould width: 320mm Max. Mould cutting width: 300mm Max. Mould cutting length: 290mm Orientation accuracy: +/-0.15mm Total power: 3kw Power voltage: 220V+/-10% Machine weight: About 1500kg Overall dimensions: 2.6(L)*0.95(W)*1.4(H)(m)SpecificationModelDP-320BIIDP-420BIIMax Feeding Width (mm)320420Cutting Area (mm)300*300400*400Cutting Speed (T/M)30-17030-170Position Accuracy (mm)±0.10±0.10Power of Main Engine ( kw )2.23Size ( mm )2300*1250*15002550*1450*1650Voltage (V )220380Packing & Deliverystandard wooden case packingCompany ProfileKunshan Dapeng Precision Machinery is professional manufacture of high precision Die Cutting Machine and high precision hydraulic die cutting machine , Slitting machine,laminating machine ,Roll to Sheet Cutting Machine, Hot and cold type sheeting machine and other machinery. Our machines are mainly used for the production of industrial tapes, electronic shielding films, protective films of PVC/PET, copper aluminum foils, foams and other relate materials. Our company has excellent production equipment and strong technical force. We constantly improve our management system and after-sales services. Our company has won a good reputation among customers.Our company adopts foreign advanced technology. Through several times of manufacturing reform and innovation, we have developed consistently. We can customize difficult models. We not only provide users with products, but also provide services and professional technology for our customers.In the fierce market competition, we always adhere to the tenet of "quality first, users first" for the purpose to provide more perfect products and more superior services. We hope to cooperate with you to create a win-win situation.
