1-10tph Farming Feed Production Line Cattle Chicken Duck Fish Feed Pellet Making Machine Pellet Mill

Product Description

Production Description:
Brief introduction of complete feed pellet production line: 1. This feed pellet production line includes crusher, mixer, screw conveyor, storage machine, pellet mill, pellet conveyor, cooling and separator, dust collector, packing machine etc. (and we also can equip the suitable machine according to clients' requirements.) 2. All machines will be controlled by electric cabinet under working condition
3. The whole line needs 2-3 workers to operate.
4. With the successive and rational technological process.
5. The line has the advantages such as compact structure, small floor space, low energy consumption and high efficiency.
Main production process step:

Process	Machine	Function
Crushing section	Crusher	Crush raw materials into powders
Pelleting section	Pellet mill	Press crushed raw materials into pellets
Cooling section	Vertical or horizontal cooling machine	Reduce temperature of pellets
Packing section	Automatic packing machine	Weigh and pack the final pellets into bags
Electric control	Electric control cabinet	Control the complete line

Raw material&Final products:
1): Suitable for processing different kinds of raw materials:
1. Cereals:soybean, maize,corn, grain,sorghum,corn flour , wheat flour ,crop stalks (corn stalk, sorghum stalk, cotton, rape
stalk, peanut seedling, sunflower stalk), chaff, grasses, shrubs
2. Coarse fiber: wheat bran, corn stalk, soybean meal,grass
meal,rice husk, grass, groundnut shell, cottonseed hull.
3. Additives: molasses, vegetable oil, Amino acid, bone meal, vitamin.
2): Final different size feed pellet
Diameter of final feed pellets: 1mm, 2mm. 3mm,. 4mm. 5mm. 6mm, 8mm, 10mm, 12mm etc.
Length of feed pellet: Adjustable
Detailed Image:

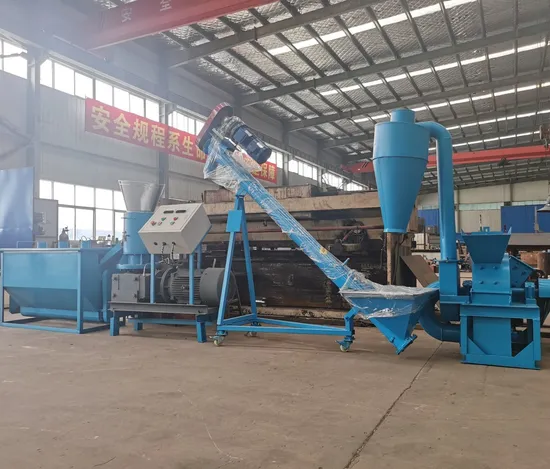

101 : crushing and grinding machine . 201: vertical mixer . 301: raw material conveyor 302 material storage machine 303 : feeder 304 : pellet machine 401: Rotary screen (cooling system ) 501: the belt conveyor 502: packing part
Package and Shipping :
Company Information:
Zhengzhou zhongdebao Industrial,established in 1998 ,located in zhengzhou city High-tech Industrial Park,which integrates the R&D manufacture,sales ,installation and service of all kind is a company specializing in R&D, production and sales of feed pellet machine ,wood pellet machine ,pet/fish feed pellet machine,which lays a solid foundation for producing high quality products.We always is ready to provides quality service to our customers . Zhongdebao insists on the principle of "delicatemanufacture,continual improvement,seeking superiority,satisfying customer". we are reliable partners.
