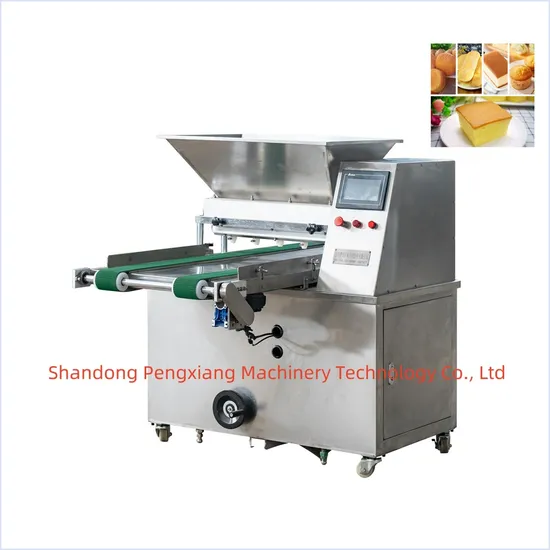

Competitive Machinery Manufacturer Electric Cake Depositor Cake Batter Filling Machine Sponge Cake Forming Machine

Product Description

Product Description
Competitive Machinery Manufacturer Electric Cake Depositor Cake Batter Filling Machine Sponge Cake Forming Machine

Power	Voltage	Dimension(meter)	Weight
1.5kw	380/220V	1.73*1.32*0.95	240kg

Parameters: 1. Dual servo control. Servo control of conveyor belt start stop and speed, precise grouting positioning, servo control of grouting rotor roller, achieving precise grouting weight.
2. Feibao RV reducer.
3. There is a slurry cutting shaft located below the rotor material cavity. After the rotor roller is filled with slurry, the slurry cutting shaft immediately cuts off the slurry, making the slurry inside the mold uniform. When the material cavity is raised, it does not pull wires or leak slurry.
4. Quick pneumatic lifting nozzle, with injection nozzle adjustable according to different mold heights (diverse mold nozzles with long rows, three holes, four holes, five holes, six holes, seven holes, etc.),
5. PU conveyor belt. 395mm wide with guide strip
6. The material of the feeding roller is food grade ultra-high polymer,
7. The discharge nozzle template adopts a dovetail groove design, which is easy to change and easy to clean,
8. The material chamber shaft is designed with a disconnect between the cutting shaft and the power shaft, making it easy to disassemble and clean the material chamber rotor,
9. The conveyor belt scraper of this machine allows for centralized recycling of waste materials
10. Electrical configuration: total power 1.5KW, single-phase 220V power supply, French Schneider leakage protection switch, American Honeywell contactor, Hechuan servo motor, German Siemens PLC, Kunlun on state touch screen, Taiwan Mingwei 24V power supply, Omron photoelectric switch, Taiwan Yangming solid-state relay, Yade customer pneumatic parts.
Company Profile

Shandong Pengxiang Machinery Technology Co., LTD is a manufacturer which is specialized in bakery food machinery. Our company is the earliest domestic manufacturer specializing in the high-quality biscuit/peach pastry production line, egg yolk cake production line, cake/mooncake production line, hot air rotary oven, tunnel oven and some other single unit equipment etc.
Our company integrates research and develop(R&D), design, production and sales, has gathered a group of senior technical talents and high-quality professional after-sales service personnel in the industry, with strong technical strength and rigorous production processes. The company is also equipped with advanced mechanical processing equipment such as IP laser cutting, CNC bending, and machining centers from the United States, as well as advanced testing and inspection equipment.
In recent years, with advanced products and quality services, reliable performance at a reasonable price, the company's market has covered all over the country and also exported to South Korea, Vietnam, North Korea, Africa, Southeast Asia and other countries and regions.
FAQ

Q1: Are you a manufacturer?A: Absolutely! We are the proud manufacturer of top-of-the-line bakery food machinery. With over 20 years of experience, we have honed our craft and are experts in the field. Our passion for creating high-quality equipment shines through in every product we make. We are dedicated to providing exceptional service and meeting all of our customers' unique requirements.Q2: Do you provide customized services?A: Absolutely! We understand that every customer has specific needs and preferences. That's why we offer customized services to cater to those special requirements. Whether it's a unique design, specific features, or personalized specifications, we've got you covered. Our team of skilled professionals will work closely with you to bring your vision to life.Q3: How is payment?A: We offer flexible payment options to make your purchasing experience as convenient as possible. We accept both T/T (Telegraphic Transfer) and L/C (Letter of Credit). Choose the method that suits you best and rest assured that your transaction will be handled securely and efficiently.
