Sodium Silicate Complete Equipment Dissolving Material Roller

Product Description

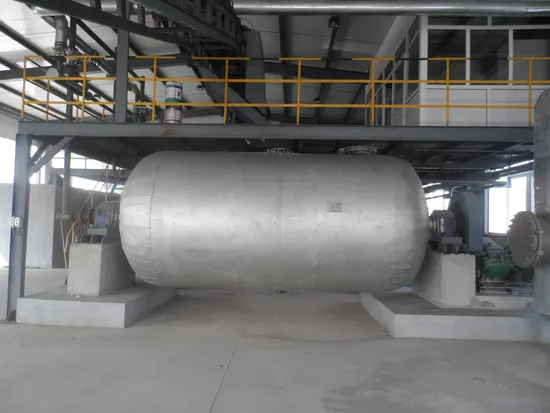

The main function of the chemical drum is to dissolve the water glass particles from the kiln to make the water glass pressure vessel equipment.
The dissolving roller is used to melt the material, and the transmission mode of the drum is the combination of gear and belt transmission. In the process of equipment start-up and stop, this kind of transmission has a certain buffer to the eccentricity generated by the operation of the equipment to ensure the smooth operation and protect the motor.
rotary joint is used at inlet and outlet to ensure good air tightness, and it can be adjusted timely according to wear condition of PTFE ring.
In order to reduce the change caused by the heat load-bearing of the drum during the working period, the inner and outer ends of the drum head are added with reinforcing ribs, which are connected with the transmission shaft and the hollow shaft, and are placed on the bearing seat; the bearing adopts the self-aligning bearing, and the inlet pipe section adopts the sliding mode, which avoids the deformation caused by expansion and contraction caused by heat expansion and cold contraction to a certain extent. In order to reduce the cavitation of the inner pipe, the inlet angle is adjusted reasonably according to the use experience to avoid the cavitation to the greatest extent.
Equipment foundation: the foundation can be prefabricated according to the foundation drawing provided by the manufacturer, or according to the user's site and process operation conditions. During the foundation prefabrication, sufficient space should be reserved for equipment operation, operation, maintenance and safety fence setting. Except for the transmission and rotary sealing parts of the equipment, the insulation layer shall be provided by the user.
