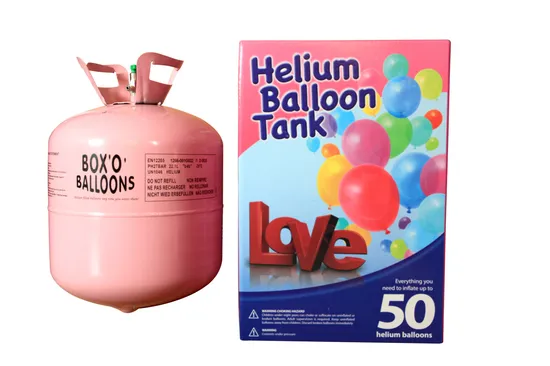

Disposable Helium Gas Cylinder with 7L, 13L and 22L Helium Tank Capacity

Product Description

Cylinders standard: EN12205 for EU countries DOT-39 for USA, Japan, KGS for South Korea GB for East Europe, South America, Latin America, Middle East, Africa and most countries in Asia.
Water Capacity : 22.4L Service Pressure: 1.8MPa Test Pressure: 2.3MPa Outpacking: carton box, size 310*310*450mm, 640pcs/20FCL. 1600PCS/40HQ Nozzle and Bolloons are available.
Company Profile Establish in 2006, we're an enterprise specializing in the production of pressure vessel. With an area of 40209.4 square meters workshop and office building ;has five senior engineers, 39 technical personnel engineers. And strictly according to the ISO9000 authentication procedure production, the year productivity surpasses 5,000,000 steel cylinders, the quality qualified rate 100%. Because of having these advanced equipments, advanced talented persons and management pattern, we pursues in the specialized aspect strives for perfection, devotes in the customer is satisfied, and makes every effort remarkably.
We produce high quality various sizes of disposable steel cylinders(1L/7L/13L/22L), and has more then 15years OEM &ODM services. These cylinders are used to fill with permanent gases, liquefied petroleum gas or compressed natural gas to serve a wide application in chemical industry, metallurgical industry, mechanical industry, petroleum industries, electronic industry, building industry and in the fields of fire fighting, energy, food process, household, medical treatment, cryogenic soldering, mountaineering, diving, mining,scientific research & etc.
Presently our supplies have the approvals of DOT, CE CCS, BV, ABS,KGS. These cylinders also can be designed and processed in strict accordance with the standards of BS, JIS, DIN, EN, KS, ISO, GB(China) or the off-standard from the consumer.
Specification

Type	Capacity	Thickness	W.P/T.P.	Application	WEIGHT	Packing size	20GP (pc)	40HQP (pc)
30LB	13.4L	1.0mm	1.8/2.3MPA	R22, R134A, R600A	3.1KGS	245x245x425 mm	1140	2650
30LB	13.4L	1.2mm	2.2/2.7MPA	R404 R407, R507	3.6KGS	245x245x425 mm	1140	2650
30LB	13.4L	1.5mm	2.76/3.45MPA	R410A	4.3KGS	245x245x425 mm	1140	2650
50LB	22.4L	1.2mm	1.8/2.3MPA	R22, R134A, R600A	4.9KGS	305*305*452 mm	650	1620

Model:FCP304-22-2.7		Certification:DOT/KGS/CE/ISO 9001
		Cylinder	Height	Diameter	Thickness
			444mm	304mm	1.2mm
			Material	Capacity	Working Pressure
			DC01	22L	2.2Mpa
			Weight	Valve	Filling Gas
			4.8kg	M12*1.25	Helium
		Color	Any Panton color available
		Packing	carton size 30.5X30.5X44.5cm
		Production	150,000 cylinders/month
Packing, Payment and Delivery
Packing	1 cylinder/carton, carton size 30.5X30.5X44.5cm, G.W. 5.7KG
Loading	650pcs/20'GP, 1620pcs/40'HQ
Payment	Normally By T/T 30% as deposit, and the 70% balance before the shipment.
Delivery	within 15-20 days after receipt of deposit and confirm of OEM gift box

RFQ
Q1. Can I get a free sample from you?
A:Of cause.You can buy a FREE sample from us with freight collect.

Q2:. What is the MOQ?
A:13.4L helium tank:1140PCS/20'FCL
22.4L helium tank: 650PCS/20'FCL
other small volume cylinder 500pcs, 1,000pcs is OK for empty cylinder.

Q3: Why the price is different from the price on the web?
A:All the price on our web are not renewed in time.
The price based on your purchase quantity.The more purchase quantity the better of price.
Q4:. Does your products can be customized?
A:Yes,carton and tank body printing based on your design,and free charge.
