Ant308-Diameter500X750 Slant Bed CNC Lathe Machine with Driven Tool

Product Description

Basic Info

Model NO.	ANT308		Process Usage	Metal Processing
Movement Method	Point to Point Control		Control Method	Closed-Loop Control
Numerical Control	CNC/MNC		Processing Precision	0.002~0.01(mm)
Performance Classification	Economical CNC Machine Tools		Certification	CE,
Condition	New		Tailstock Form	Hydraulic Tailstock
Lubrication Form	Grease Lubrication		Hydraulic System	3 Channels
Max. Live Tool Speed	4000rpm		Product Name	CNC Lathe
Keyword	Lathe Machine		Key Word	Automatic CNC Lathe Machine
Transport Package	Packaged Into Wood Carton		Specification :mm	3150 *1950 *1980
Trademark	ANTJC		Origin	China
Production Capacity	420

Packaging & Delivery

Package Size	3150mm * 1950mm * 1980mm
Package Gross Weight	4200.000kg

Product Description
High Speed Driven machine Tool Turret Hydraulic Tailstock CNC Slant Bed Heavy Turning Lathe
1,High precision spindle
The machinetooladopts highrigidity spindlewith highrigidity, highrigidity and precision ofthe spindle, and the spindle's beating andtrue roundness
<3um
2,High efficiency machining
The maximum speed ofmachine tool spindle is4500/ min,X.Zaxiscanbe sent to 30 m / min. it can be equipped with automatic feeding machine to
realizehigh speed andhighefficiency.
3,Thebed structure
The integration of high rigid bed 45 degree inclined lathe bed structure smooth chip, compact structure,beautiful shape.The whole stainless
steeldoorandhighreliability
4,High precision feed
The feed axis servo drive, the Taiwan Yintai high precision ball screw, prestretched at both ends of the structure to ensure the machining precision
and long time to maintain the accuracy and feed the shaft to repeat positioningaccuracyof<±1um,surfacegloss/0.8
5,Rotary turret
The use of high precision hydraulic turret,the number of bits, tool for high-speed,smooth,accurate,saving processing time.Hydraulic tailstock.The rear seat rail can be disassembly, flexible configuration, greatly improving the processing in time to save the shaft parts machiningaccuracyandefficiencygreatly
6,Super cutting
Highspeed, highprecisionhydraulicrotarycylinder,precisioncolletand highrigidityprecision powerchuckconfigurationandimprovethematerial
toughnessheavycuttingandpowerfulcuttingability
7,NewGeneration System
Adopt new generation system, make the machine tool have more precision, more stability, high-power powerful cooling pump greatly improvesthecuttingand coolingperformanceoftheparts.
Company Profile
Company Profile
Dongguan Ya endi Machine Tool Co., Ltd. is a high-tech enterprise specializing in the research and development, sales of CNC machine tools, and the design, installation, and commissioning of automation projects. It is an enterprise that integrates the development, design, production, sales, and service of CNC machine tools and automation processing. The company is located in the Daban Di Industrial Zone, Humen Town, Dongguan City, Guangdong Province, China. The main products include 5-axis linked CNC machine tools, power tool turret CNC lathes, high-precision turret tailstock CNC lathes, inclined bed multi-tool CNC lathes, 5-axis 4-linked turning-milling compound CNC lathes, 40,000 RPM 5-axis 4-linked compound CNC lathes, and automated production lines. These products are suitable for the automotive industry, electronics industry, aerospace, military industry, optoelectronics communications, automotive and motorcycle, home appliances, lighting, fishing gear, and jewelry industries. They are used for efficient and high-precision machining of parts and are deeply loved by a wide range of customers. Ya endi is full of passion and creativity; quality and service are our commitment, and customer satisfaction is our goal.
Corporate philosophy: "Honesty, cooperation, pioneering, innovation"
"Human-oriented, efficient and high-quality, continuous improvement, pursuit of excellence"
Deta Product Parameters

ils display
Product Parameters

Category	Product Name	Model
Turning and Milling Machine Tool	Dual-spindle Dual-turret Turning and Milling Machine Tool	ANT308SDYY
Turning and Milling Machine Tool	Dual-spindle single-drive tool turret orthogonal Y-axis turning-milling compound machine	ANT308SDY
CNC lathe Milling Machine	Dual-spindle Dual-turret Turning and Milling Machine Tool	CNC46-SSTD
CNC Lathe	Dual-spindle Lathe With Double Gang Tool Carriers	X46-SST
CNC Lathe	Dual-spindle Dual-s turret lathe	X46-STD
Turning and Milling Machine Tool	Dual-Spindle Driven Tool Turret Lathe(Without Y-axis)	ANT308SD
Turning and Milling Machine Tool	Vertical Y-axis combined turning-milling machine (servo tailstock version)	ANT208DY
Turning and Milling Machine Tool	Orthogonal Y-axis Turning and Milling Machine Tool	ANT308DY
Turning and Milling Machine Tool	Orthogonal Y-axisTurning and Milling Machine Tool	ANT308DY
Turning and Milling Machine Tool	4+4 Driven Tool+ Normal Turret Turning and Milling Machine Tool	CNC46-T/4+4
Turning and Milling Machine Tool	Driven Tool Turret Turning Tailstock Lathe Without Y-axis(Hydraulic Tailstock Version)	ANT208D
Turning and Milling Machine Tool	Driven Tool Turret Turning Tailstock Lathe Without Y-axis(Hydraulic Tailstock Version)	ANT308D
Turning Machine Tool	Turning Machine Tool with normal turret(Hydraulic line gauge tailstock)	ANT208
CNC lathe Machine	CNC Lathe(Without Tailstock)	T52-T
Turning Machine Tool	Turret lathe with a large processing diameter and standard tool turret(Hydraulic line gauge tailstock)	ANT415
CNC lathe Machine	Turret lathe with a large processing diameter and standard tool turret(servo line gauge tailstock)	ANT415
CNC lathe Machine	Large travel heavy-duty CNC lathe with four-way tool post and large diameter turning capacity	CJK6180X6000
CNC lathe Machine	Rapid Tool Change CNC Lathe	X46-T

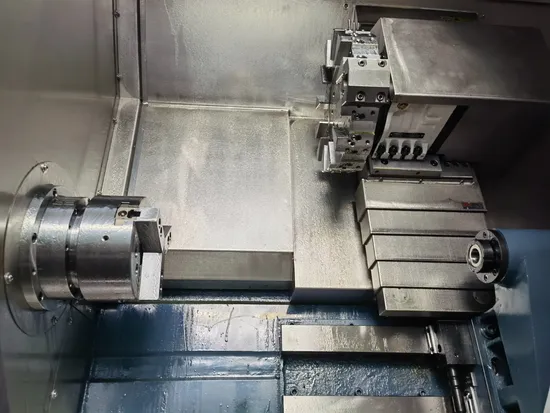

Equipment Display
Installation Instructions

Project			Unit	Specifications
Work Ability	Maximum turning diameter on the bed			Ф520
	Maximum turning diameter			Ф400
	Maximum drilling diameter			Ф50
	Maximum turning length			750
Maximum stroke	X:direction			250
	Z:direction			750
	Y:direction			/
Spindle box	Spindle speed range		r/min	0-4000
	Main motor power		Kw	11KW
	Spindle head model			A2-6
	Spindle through-hole diameter			Ф62
	Diameter of the through rod material			Ф52
	Spindle front shaft diameter size			Ф100
	Spindle center to bed height			350
	Height from spindle center to ground			1015
Fast forward speed	X:direction		m/min	18
	Z:direction			18
	Y:direction			/
12-Station Hydraulic Servo Turret	Outer circle knife square size			25*25
	Maximum boring bar diameter			StandardФ40;
	Straight knife holder	Square knife seat	a	1
		Round knife holder		4(Diameter¢40)
Chuck	Hydraulic hollow		Inch	8
Machine tool dimensions (length × width × height)				3150×1850×1980
Machine tool weight	Net weight			4200(With chip discharge mechanism)

group photo of the visit

Packaging and delivery
Packaging details: Meets international heat treatment standards, exported on wooden pallets
The workbench and guide surface have anti-rust oil applied,
vacuum packaging,
effectively preventing moisture and rust.
