1-100000 Liter Sectional Hot-Dipped Galvanized Steel Industry Water Storage Tank Panel

Product Description

Product Description

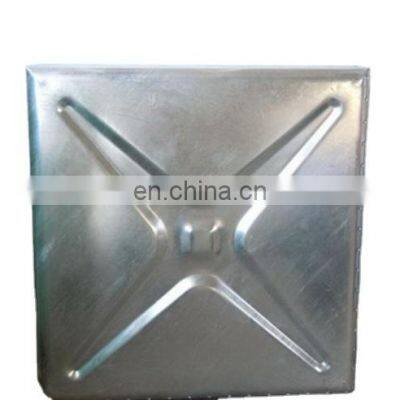

1-100000 Liter Sectional Hot-Dipped Galvanized Steel Industry Water Storage Tank PanelGalvanized Steel Water Tank is punched by Q235A into 1220mm*1220mm or 1000mm*1000mm and 1000mm*500mm, 500mm*500mm standard plates, drilled around, after HDG treatment, and assembled at site. When combined, the gap between two standard plates is sealed by silicon pad, and connected by bolts.Hot dipped galvanized steel water tank is anti-corrosion, anti-aging, no distorsion, no infiltration and leakage. Tank is easy to clean and conveniently to install and assemble. It can storage not only hot water, but also cold water, and has a better shockproof and shock resistant ability. Water capacity varies from 1.0 cubic meter to 1000 cubic meters, height may reach as great as 5 meters. Inflow, outflow tubes as well as return tube's diameter and place is decided by the designer, passages of at least 7000mm is needed around the tank.NameHot-dipped galvanized steel water tankMaterial1. Q235B raw material, complying to GB/T 700-2006 standard. 2. Surface zinc layer 70μm thickness, complying to GB/T19001-2008standard. 3. Surface treatment optional: Enamel coating.Panel size0.5m*0.5m, 0.5m*1m, 1m*1m, 1.22m*1.22mPanel thickness2mm ~ 5mm, depending on the water tank heightCapacityCustomizedAccessoryBolts and nuts, sealing tape, drawing bars, brace support, manhole, ladder, plange, C channel as steel base, floating ball, liquidcounterAssemble wayBolting, or weldingWorking timeMore than 20 yearsProduct Accessories(1) Panels ( Bottom panel, wall panel, roof panel and manhole); (2) Internal parts ( Internal ladder, tiepiece rod, support, flanges and rubber);(3) External parts ( External ladder, angle iron, tiepiece board, bolts and nuts);(4) U-steel base (surface treatment can be painted or hot dipped galvanized or stainless steel).Product FeatureThere are many advantages for galvanized steel water tank: high quality, non infiltration, anti-corrosion, anti-aging, easy to clean, and easy installation.Due to different panel sizes, the galvanized steel water tank capacity ranges from 1m3 to 5000m3. It depends on customer's specific requirement. For the stability of the water tank, the height should not be more than 4 meters. But the galvanized steel water tank height can reach 4.88m, because there is panel sized 1.22m.Product Installation1. When connect the pipe, please don't put excessive pressure on both inlet and outlet of the pipe;2. Don't put the weight of valve and large diameter pipe on the tank outlet. When connect, please set pipe support or lifting support;3. When the welded pipe expand, contract and vibrate, please must install stretched flexible connectors;4.Water tank allocation and accessories: cabinet, U-steel base, organic glass tube level gauge, maintenance hole with lock, ladders for both inner and outer of the cabinet, short pipe and flange for cabinet.Product ApplicationPackage and TransportationTo better ensure the safety of the galvanized steel water tank, professional, environmentally friendly, convenient and efficient packaging services will be provided. Usually the package is by pallet or wooden boxes, and customer assemble it in their local. Or if customer requests, we can help assemble it before delivery, but that would occupy more space in the container and increases the freight cost.About usOur service: 1. High Quality: Excellent quality is our first pursue, we have strict quality control by our QC team. 2. Big Capacity: Constantly introducing new equipment to meet clients production requirement and market change. 3. Professional Team: Professional development team, purchase team, production team, inspection team, sale team, to provide the best service for our customers. 4. High Efficiency: 24 hours online service (Email, Trademanager, WhatsApp, Wechat) to solve all your questions. 5. Customization: Size & shape could be made as customer requirement. 6. Payment: Flexible payment ways, making the payment more convenient and easy.FAQQ: How can you guarantee your product quality? A: 100% of our products would be tested before delivery. To control quality, we are using high quality material from high quality supplier.Q: Are you a trading company or a manufacturing factory?A:We are a manufacturing factory with export qualification. Our factory is one of the biggest FRP products manufacturer in China since 2011.Q: How about the Delivery time?A: 10-15 days after receiving the deposit based on the MOQ. Normally, 15 days to finish the order for a 20 ft container. Welcome to ask for the detailed delivery time according to your order quantity!If you are interested in our products, welcome to contact us freely, we will try our best to help.
