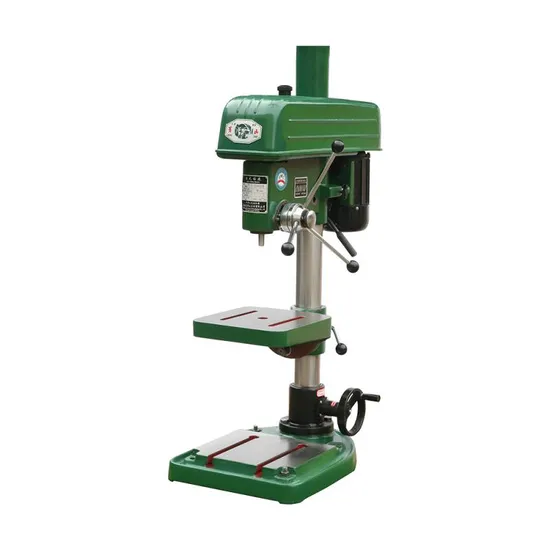

Handwheel High Precision Industrial Bench Drilling Machine with 16mm Drilling Capacity
Basic Info.
Model NO.
Z4116B
Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
CE
Condition
New
Ship Measurement (Cm)
80X42.4X96.2
Max. Drilling Capacity (mm)
16
Diameter of Column (mm)
70
Max.Spindle Travel (mm)
100
Morse Taper of Spindle Nose
Mt.2
Motor (Kw)
0.55
Size of Worktable (mm)
265X265
Spindle Speeds (Rpm)
480-800-1400-2440-4100
Size of Base Worktable (mm)
250X300
Gw/Nw (Kg)
115/100
Transport Package
Wood Package
Specification
115kg
Trademark
Lunyee
Origin
China
Production Capacity
500pieces/Week
Packaging & Delivery
Package Size
80.00cm * 42.40cm * 96.20cm
Package Gross Weight
115.000kg
Product Description
Handwheel High Precision Industrial Bench Drilling Machine with 16mm Drilling Capacity| Model | Z4116/16B |
| Max. Drilling capacity (mm) | 16 |
| Diameter of column (mm) | 70 |
| Max.spindle travel (mm) | 100 |
| Morse taper of spindle nose | MT.2 |
| Spindle speeds (rpm) | 480-800-1400-2440-4100 |
| Size of worktable (mm) | 265x265 |
| Size of base worktable (mm) | 250x300 |
| Distance from spindle axis to column surface (mm) | 193 |
| Distance from spindle nose to worktable (mm) | 0-255 |
| Distance from spindle nose to base surface (mm) | 250-500 |
| Motor (kw) | 0.55 |
| GW/NW (kg) | 115/100 |
| Ship measurement (cm) | 80x42.4x96.2 |
Detailed Photos
Our Advantages
Company Profile
FAQ
Q:How can I choose the most suitable machines?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you.
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production→cargo ready → balance/delivery → further cooperation.
Q: Did you test all the goods before they were shipped?
A: Yes, we test every product before delivery, the quality can be fully guaranteed.
Q:Do you accept product customization?
A:Yes, we will try our best to meet your requirements.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted, Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
Q: Is your price competitive?
A: Only good quality product we supply. Surely we will give you best factory price based on superior product and service.
If you have any interests, please contact me in your free time.
