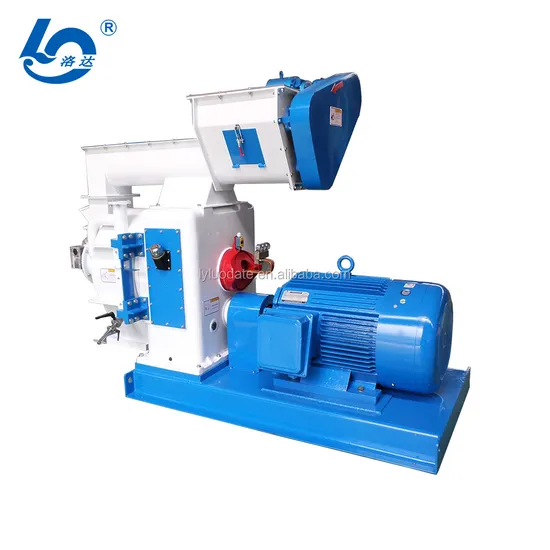

Customized Biomass Pellet Machine Line Biomass Pellet Machine Price Biomass Pellet Making Machine Biomass Pellet Mills

Product Description

Product Description
Product Feature: 1. Scope of application: this machine can be used in the rice husk, straw, cotton stalk, wood chips, palm
shell , sunflower, olive, bagasse, and other raw materials.
2. Main drive adopts high accuracy gearbox for high efficiency.
3. Frequency conversion (Electromagnetic speed control) feeder, with overload protection device,equipped
strong magnetic security device.
4. Main parts of the bearing and standard parts are imported.
5. Equipped with between Φ6 and Φ12 more aperture and the thickness of the ring die, users can choose
according to the different needs. Technical Parameter

Motor	Main Power(kw)	Capacity(t/h)	Size(mm)
SZLH250	22	0.1-0.2	2000*1400*1550
SZLH320	37/45	0.3-0.5	2300*1700*2000
SZLH350	55	0.5-0.8	2600*1000*2050
SZLH400	75/90	0.8-1.5	2880*1140*2220
SZLH420	90/110	1.5-2	3000*1300*2350
SZLH508	132/160	2-3	3400*1300*2550

Application
Application 1. Wood pellet production line, widely used in large, medium and small wood chip manufacturers to produce
high quality wood pellet fuel for sale.
2. This machine can be used in the rice husk, straw, cotton stalk, wood chips, palm shell , sunflower,
olive, bagasse, and other raw materials.
Detailed Photos
Our Advantages
Luoyang Ludate Machinery Factory Luoyang Luodate Machinery Equipment Co., Ltd. was found in 1994, located in Luoyang which a famous
industry city in China with superior geographical position and convenient traffic. We are a research &
development production factory and have a professional design team.
Packaging & Shipping
Conventional Packing ☆ Standard international export packing.
☆ Equipment was covered with plastic bags and was loaded in the wooden box that with steel frame
structure.
☆ Spare parts will be protected in water proof bags and boxes.
FAQ Information we need from you: 1. What size particles do you want to produce? 2. What kinds of raw materials are you using?

3. How many tons per hour do you need?
What you want to know: 1. How long is the warranty period for the equipment? 2-year warranty, lifetime service

2. Do you have staff to install the equipment?
As long as you need, we can send technicians to your country to guide the installation.

3.Are Siemens motor and stainless steel used?
As long as you need, we can provide.

4.Can your equipment run 24 hours a day?
Our equipment is strong and durable.It can operate 24 hours a day.

5.How long will it take to produce the equipment?
Expected to take 30-50 days.
