Fully Automatic ABA Three Layers Co-Extrusion Colored Film Blowing Machine with Simple Use Method
| US$22,000.00-45,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SJ-ABA-600/800
Maximum Folding Width of Film
1000
Screw Diameter
45/55
Automation
Automatic
Computerized
Computerized
Machine Weight
4T
Certification
CE, ISO9001:2008
Screw
Double Layer
Die Head.
ABA Rotary Head
Speed
High Speed
Transport Package
Standard Wooden Box, etc.
Specification
CE, ISO
Trademark
SANBI
Origin
China
HS Code
8477301000
Production Capacity
50sets/Month
Product Description
Fully automatic ABA Three Layers Co-Extrusion Colored Film Blowing Machine with Simple Use MethodUse:
The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home.
It is optimum designed on the trounds of preference of analogous lines in foreign and home.
SPECIFICATIONS:
| Model | ABA 600 | ABA 800 |
| Screw Diameter | 50*2 | 55*2 |
| Screw Ratio L/D | 30:1 | 30:1 |
| Screw Speed | 15-120r/min | 15-120r/min |
| Main Motor Power | 15Kw*2 | 15Kw*2 |
| Extrusion Output | 60kg/h | 80kg/h |
| Range of Die | 100 | 100 |
| Single-sided Thickness of Film | 0.01-0.10mm | 0.01-0.10mm |
| Max. Folding Width of Film | 800mm | 800mm |
| Electric Total Capacity | 50Kw | 50Kw |
| Overall Dimension | 5000*3200*4200mm | 5000*3500*5000mm |
| Weight of Machine | 3T | 4T |

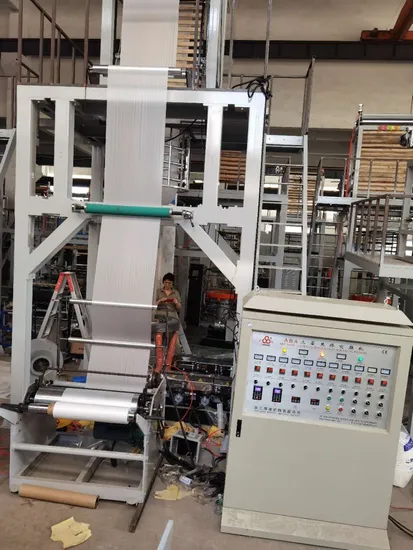

Machine Pictures:
