High Strength Plate Rolling Machine Especially for Tank Body Rolling

Product Description

Product Parameters

No.	Name	Unit	Remark
	Model: W12-30X2000
1	Maxi Rolling Thickness	mm	30 (σ≤Q245A)
2	Maximum Pre-Rolling	mm	25 (σ≤Q245A)
3	Maximum Rolling Width	mm	2000
4	Roller Working Length	mm	2000
5	Full Load Minimum Bending Diameter	mm	800
6	Bending yield	MPa	245Mppa
7	Rolling Speed	M/min	4
8	Top Roller Diameter	mm	400
9	Bottom Roller Diameter	mm	370
10	Side Roller Diameter	mm	320
11	Rollers Driven	/	Hydraulic Motor with Planetary Gearbox
12	Hydraulic System Maximum Working Pressure	Mpa	20
13	Main Motor	KW	18.5

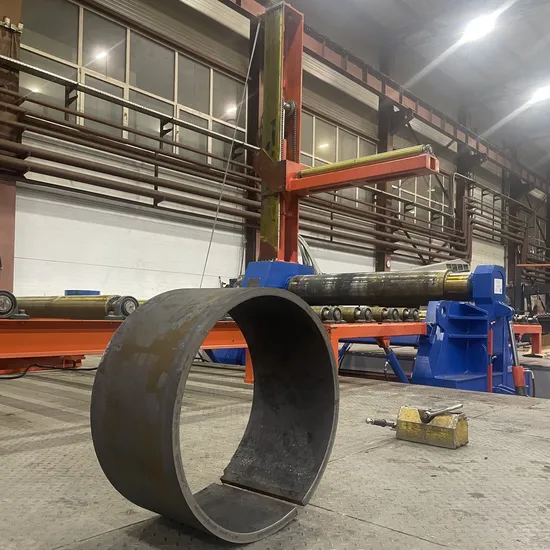

Production case:
The W12 series four-roller plate rolling machine is a four-roller CNC plate rolling machine produced by introducing advanced German technology, controlled by PLC programmable digital control, fully hydraulically driven, and realizing automatic rolling. The machine has advanced structure, superior performance, good precision, high efficiency and easy operation. It is technologically leading among similar products in the world.
When rolling the plate, the position of the upper roller is fixed, and the lower roller moves upward in a straight line to clamp the steel plate. The two side rollers move upward through the linear guide to adjust the curvature radius of the drum. The metal sheet can be loaded at one time without turning around. Complete sheet end pre-bending and rolling forming. The automatic mode is used when batch rolling, and the consistency of the molding of workpieces in the same batch is good. It is an ideal equipment for rolling cylindrical, arc-shaped, conical, rectangular and other special-shaped workpieces. It is the preferred model for rolling in metallurgy, building materials, petroleum, chemical industry, water conservancy, electric power, bridges, coal, mining, shipbuilding, boilers, aviation, environmental protection, metal structures and other industries. Overturn cylinder 15. Top support system(Optional) Overturn head frame 16. Feeding electric roller(Feeding Table)(Optional) Left frame 17. Hydraulic system Upper roller 18. Electric control system Side roller Lower roller Right frame Balance device Upper roller drive device Lower roller drive device(Optional) Side roller cylinder (Optional) Lower roller cylinder Base 14. Side support(Optional)
Work roller balance control
Diagonal slide rail: Using the most advanced and sophisticated EPS electronic balancing system (as shown below), XTW Machine Tool Company's W12 series machine tools have an EPS electronic balancing system, through 2 sets of hydraulic cylinders for synchronous movement, OMRON PLC central controller to ensure that the work rolls under any coil load are perfectly parallel. The trim error of EPS is ±0.1mm.
