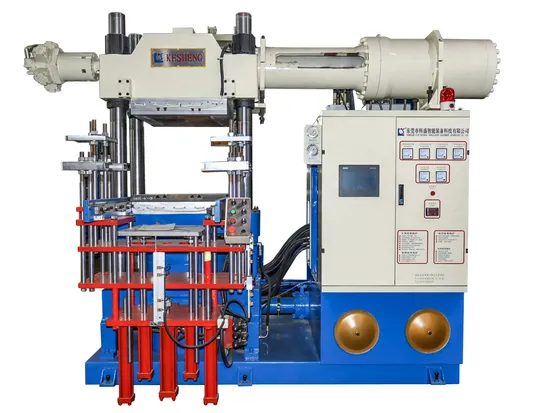

300 Ton Horizontal Rubber Extrusion Molding Machine

300 Ton Horizontal Rubber Extrusion Molding Machine

US$30,000.00-45,400.00 1 set (MOQ)

Basic Info.

Model NO.
KSA200-400(Tons)
Customized
Customized
Automatic Grade
Automatic
Structure
Vertical
Clamping Force
3000kn
Injection Speed
5000cc/Min
Heating Plate Size
700*700mm
Injection Pressure
188MPa
Mould Opening Stoke
550mm
Electrical Power
18kw
Min.Mould Thickness
60 mm
Gross Weight
13500kg
Machine Size
3450*2630*2600mm
Transport Package
Naked Pack / Wooden Case
Specification
double work station
Trademark
KESHENG
Origin
Dongguan China
HS Code
8477409000
Production Capacity
2000 Sets/Year

Product Description

200Ton Horizontal rubber injection molding machine, rubber plate vulcanizing press machine, full automatic, hign precision, for all kinds of black rubber product. Add feeders can produce silicone products.
Machine main feature: 1. Full-scale oil system 2. Streamlined no dead material back check valve design 3. A full range of computer display control system 4. Precision optical ruler control injection quantity, matching with three-stage injection control 5. With Japan made high-tech infrared safety electric eye 6. Double helical loop temperature control system 7. Multi-stage design to eliminate bubbles during feeding material 8. Can match with cold and hot runner for run material model
Applicable products: All kinds of black rubber product. Add feeders can produce silicone products.
Main parts instruction
NO. Item Branch/Material Remarks
1 Motor Taiwan Tatung Large torque type, quiet and silent
2 Oil Pump Japan branch Collective style circuit design
3 PLC Japan Mitsubishi Independent written, easy to operate
4 LCD touch screen Taiwan PanelMaster Clear and intuitive, convenient, easy to operate
5 Heating pipes Taiwan branch Nickel-chromium alloy wire, never rust
6 Oil seal Japan NOK Wear-resistant, durable, no leakage
7 Solenoid valve Taiwan Victoria Controlled fast, long life
8 Other electrical
configuration		 Japan Fujitsu, Great
Wall, Chint and so on		 Performance and stability
9 Thermostat Omron Using PID correction, temperature uniform
distribution, the error value at ± 3 ºC
10 Pressure sensor Denmark TRAFAG Conduction pressure accurate, unbiased, and easy
to use
11 Heating control
system		 Taiwan Solid State
Relays		 temperature uniform distribution, the error value
at ± 3 ºC
12 Machine body casting FCD50 Ductile Iron Aging passivation, high tensile strength
13 Column Carbon Steel Hardness up to HRC55--58
14 Work plate Size as per quotation 45 # high carbon steel, grinding, surface nitriding hardness HRC50-55
15 Machine Middle body Umbrella tapered design Make the machine rise and fall by force, the mold cavity pressure evenly, the product is not lack of material, no bubbles
16 Vacuum Pump Germany Busch Evacuated quickly, can reach 760 mm Hg within 5 seconds

Specification and parameter:
Model 200Ton 250Ton 300Ton 350Ton 400Ton 500Ton
Clamping force(Ton) 200 250 300 350 400 500
Stroke(mm) 250 250 250 300 300 300
Heating plate size(mm) up 503x508mm
down 554x560mm		 up 600x600mm
down 600x650mm		 up 600x600mm
down 650x650mm		 up 700x700mm
down 750x750mm		 up 800x800mm
down 850x850mm		 up 950x950mm
down 1000x1000mm
Main cylinder diameter(mm) 355 400 450 475 500 560
Horse power(HP) 10x2 10x2 10x2 15x2 15x2 15x2
Electrical power(KW) 22 34 34 43 48 72
Gross weight(KG) 9000 11500 13500 16500 19500 23500
Machine size(L*W*H mm) 3000x2360x2330 3300x2710x2530 3450x2630x2600 3600x2950x2600 3800x3300x2800 4200x3600x3300

Any inquiry please feel free to contact with us, thank you for your attantion!
