Conveyor Belt Water Cooling Splice Press Vulcanizer Machine

Product Description

★Features
Although the air cooled press has won the favor of many customers with shorter joint time and lighter weight for onsite work .
But the water cooled press also has its unique unsubstitutability.
Compared with the air-cooled press, the water-cooled press machine has the following advantages.
1. The machine body is stronger, usually made of stainless steel or aluminum alloy.
2. Based on the above , water cooled press can make longer models to meet wider belts. Compared with the air cooled press, which usually only achieve a length of 2100mm. The length of the water cooled press can be 5200mm, which can meet the needs of wide belts in more industries.
3. The internal accessories are relatively simple. The service life of the machine can be longer. Many machines that are 10-15 years old can still complete the joint task very well.
4.The heating surface is wider, have 150mm and 200mm for option, which is more suitable for long tooth joints and finger over finger joint .
5. Affordable, compared to the price of the air-cooled press machine, the price of the water-cooled machine is more affordable. If the budget is limited. Consider a water cooled press.
★Description

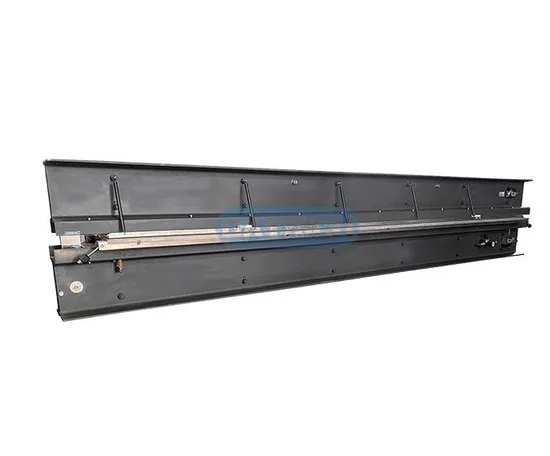

Aluminium made press. Available for several belt widths: from 600mm up to 5200mm . Incorporates pneumatic pressure system, heating system, water cooling system and clamping bar. The press is divided into 2 parts (top and bottom). Each integrates aluminium platens with heating elements, cooling pipes and temperature probes. width of platen: 150mm or 200mm. Completely automatic process programmed from the control unit (pressure, heating, dwell time and cooling).
Controllers(external)
Easy to program control unit. Automatic control of the whole splicing process once the melting temperature of both platens, the dwell time, the cooling temperature and the pressure have been set. The control box features an Automatic Temperature Regulation System, that monitors automatically the differences of temperature between the heating platens during heating and dwell time. By doing so, differences of more than 2ºC are avoided. Includes voltmeter for input voltage reading that allows to detect any problem in the power supply. Includes also a pressure regulator, manometer and pneumatic valve with quick inflation and deflation. Automatic end-of-cycle buzzer.
Pressure system
The pressure is supplied equally by means of a wide section airbag inside each frame. Depending on the maximum pressure to reach .The weights and heights of the sections may vary depending on this.
Heating system
Fast heating of the platens by means of heating elements. Each one is made with an asymmetrical winding to supply an even heat distribution all along the belt. The elements get warmer on the ends to compensate the loss of temperature and avoid heat concentration in the middle. Temperature programable up to 200º C / 392º F.
Cooling system
Water cooling system composed by a closed stainless steel circuit, that help circulate water all along the platens propelled by a water pump. Water favours a rapid temperature reduction of the belt and reduces waiting time for a new use of the press. Cooling system activates automatically after dwell time finishes.
Clamping system
Fixing the belt by means of clamping bars. Two intermediate plates of galvanized steel are also supplied for the protection of the heating plates. These plates also dissipate the heat and avoid marks on the splice area.
★Technical Datasheet

Model	SW1100	SW1600	SW2100	SW3200	SW4200
Effective Length	1000mm	1500mm	2000mm	3000mm	4000mm
Effective Width	150mm	150mm	150mm	150mm	150mm
Upper Weight	41KG	57KG	94KG	160KG	208KG
Lower Weight	35KG	63KG	102KG	176KG	226KG
Total Weight	87KG	131KG	210KG	354KG	458KG
Overall Height	310mm	390mm	550mm	550mm	650mm
Width	320mm
Length	1410mm	1910mm	2420mm	3550mm	4555mm
Max.Pressure	2Bar
Max.Temp	200ºC
Power	3.7KW	5.76KW	7.56KW	11.52KW	15.12KW
G.W.	135KG	190KG	270KG	489KG	600KG
Packing Size (mm)	2050*480*540	2450*550*540	2950*600*540	3730*830*450	4730*830*450

★Machine Detail

Barometer	Power Outlet
Flexible Settings	Latch Lever
Water Inlet / Outlet	Water Pipe
Temperature Controller----OMRON Electric Part-CHNT

★Accessories Part for Free

Water Pipe--4pcs	Welding Gun--1pcs
High Tempture Belt--1pcs	Water Pump--1pcs

★Optional Accessories

Machine Stand
