Suto S217 -80 to 20 Deg C Desiccant and Refrigerated Compressor Air Dryer Use Dew Point Sensor Gas Humidity Moisture Transmitter

Product Description

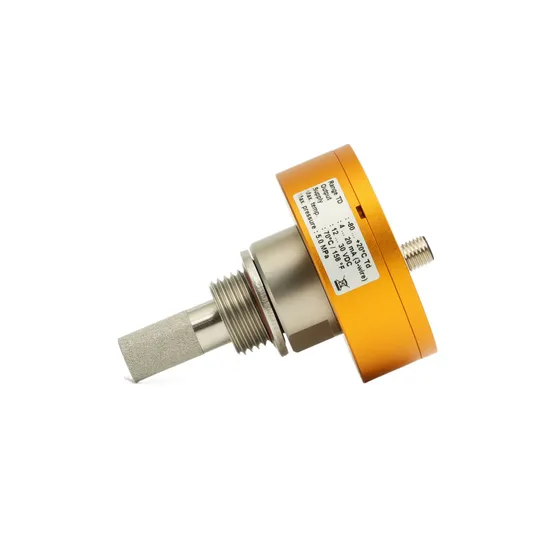

Hangzhou Xinjian Electronic Co., Ltd. presents the Suto S217 Dew Point Sensor Gas Humidity Transmitter for -80 to 20 Deg C. Ensure quality compressed air with this reliable dew point analyzer.Product DescriptionSUTO Dew Point Sensor S 217The SUTO dew point sensor S 217, developed by Hangzhou Xinjian Electronic Co., Ltd., offers reliable and long-term stable dew point monitoring in industrial applications. This sensor features improved signal and stability, making it ideal for demanding industrial environments.
Key Features:Designed for OEM applications in desiccant and refrigeration dryersNew sensor technology with compact casingAttractive pricing for smaller dryers and point of use dryersEnergy-efficient dew point controlOutput via loop-powered 4-20 mA signal or 3-wire 4-20 mA outputFactory-set sensor parameters for ease of useWith the SUTO dew point sensor S 217, you can ensure precise dew point monitoring in your industrial processes, leading to improved efficiency and performance.
Product InformationFeatures:
1. Small size makes it ideal for dryer installations.
2. Measures dew points down to -50°C
3. 2-wire or 3-wire output
4. lP65 casing provides robust protection in rough industrialenvironment
5. Very fast response time ensures safe and reliable indicationwhenever dew points are out of valid ranges
6. Can be installed directly into dryers through G 1/2"thread. 7. High accuracy of 1° .. 2°c dew point
8. Withstands condensation
9. M8/M12 connector and cable with open wires
Product DimensionsOrder number description

Order no.	Description
S699 2170	S 217-0, dew point sensor, 4 ... 20 mA (2-wire), -50° ... +20°C, G 1/2" thread, 50 bar, M8
S699 2173	S 217-3, dew point sensor, 4 ... 20 mA (2-wire), -20° ... +50°C, G 1/2" thread, 50 bar, M8
S699 2174	S 217-4, dew point sensor, 4 ... 20 mA (3-wire), -20° ... +50°C, G 1/2" thread, 50 bar, M8
S699 2175	S 217-5, dew point sensor, 4 ... 20 mA (3-wire), -50° ... +20°C, G 1/2" thread, 50 bar, M8
A1390	S 217, customized measuring range
A1391	S 217, high pressure option 35 MPa (350 bar)
A554 2005	Service kit for sensor configuration including software
A699 3491	Measuring chamber for easy installation in compressed air system up to 15 bar
A699 3493	Measuring chamber bypass type (in and out 6 mm hose connection)
C198 0002	Sinter cap stainless steel
