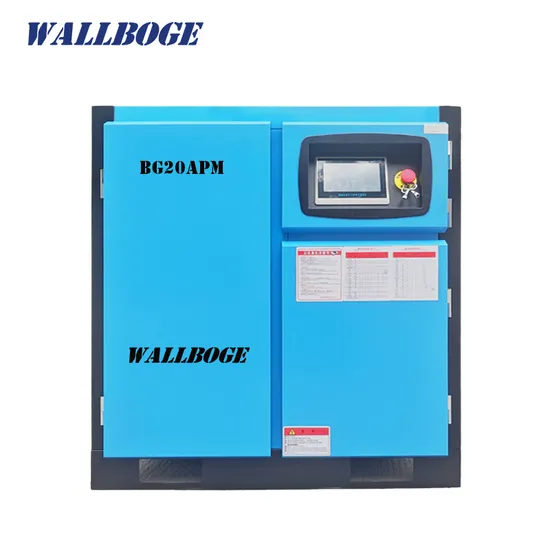

20HP 15kw Wallboge Permanent Magnet VSD Screw Air Compressor

Product Description

Product Description
Genuine original air end system·Original Hanbell air end·The third generation screw rotor profile, 5:6 asymmetric rotor·Large rotor, low rotation speed, low specific power·Sweden SKF element bearings ensure the ultra-long service life of the air endHigh efficiency permanent magnet motor·Using high-performance permanent magnets, no loss of magnetism at 200°C·IE3 Premium Efficiency·IP55 degree of protection, Class F insulation, Class B temperature rise·High transmission efficiency, service life of up to 15 yearsHigh-efficiency air filter·Filtration accuracy up to 99.5%·Dust particles below 0.1 micron·Service life up to 3000 hours
High-efficiency oil filter·Filtration accuracy up to 99.5%·Oil particles can be controlled at 0.1 micron·Service life up to 3000 hoursHigh-efficiency oil gas tank·Oversized oil gas tank improves the cyclone effect maximizing the separation process·The high-efficiency oil gas separator ensures that the oil content is less than 2ppm·System pressure drop is less than 0.2bar·Service life of oil gas separator is up to 3000 hours
Energy-saving air inlet valve·Large suction area·Low load energy consumption in unloaded operation·Cast aluminum maintenance free design·Fast check: prevent unloading and shutdown oil injectionClassic cooler design·Oversized cooler design·Easy access for maintenance·Anti-corrosion coating on surfaceHigh-quality cooling fan·Compact·Low noise level·High capacity for optimized cooling·Low power consumptionHighly integrated microcomputer controller·7.0 inch full color touch screen·Full graphical flow diagram·Multiple languages·Real-time operation/maintenance/alarm information·Operation record/chart display·Weekly and daily scheduling, service history and planning·On board RS485 interface, Modbus RTU
Product Parameters

Model	Motor Power		Maximum Working Pressure		Free Air Delivery		Air Outlet Pipe Diameter	Weight	Dimensions(L*W*H)
	kW	hp	bar(g)	psig	m³/min	cfm		kg	mm
BG10APM	7.5	10	8	116	1.1	39	G1/2"	180	900*650*850
			10	145	0.9	32
			13	189	0.7	25
BG15APM	11	15	8	116	1.7	60	G3/4"	300	1000*740*1100
			10	145	1.6	57
			13	189	1.0	35
BG20APM	15	20	8	116	2.3	81	G3/4"	320	1000*740*1100
			10	145	2.0	71
			13	189	1.6	57
BG30APM	22	30	8	116	3.4	120	G1"	420	1070*840*1260
			10	145	3.2	113
			13	189	2.7	95
BG40APM	30	40	8	116	5.0	177	G1"	450	1070*840*1260
			10	145	4.0	141
			13	189	3.1	109
BG50APM	37	50	8	116	6.4	226	G1-1/2"	600	1200*1000*1390
			10	145	5.4	191
			13	189	4.7	166
BG60APM	45	60	8	116	7.2	254	G1-1/2"	700	1200*1000*1390
			10	145	6.6	233
			13	189	5.7	201
BG75APM	55	75	8	116	9.4	332	G2"	920	1700*1200*1550
			10	145	8.2	290
			13	189	6.7	237
BG100APM	75	100	8	116	12.2	431	G2"	950	1700*1200*1550
			10	145	10.8	381
			13	189	9.1	321
BG125APM	90	125	8	116	15.2	537	G2"	1350	2100*1300*1650
			10	145	13.3	470
			13	189	11.4	403
BG150APM	110	150	8	116	19.9	703	DN80	2650	2500*1650*1900
			10	145	16.3	576
			13	189	14.5	512
BG180APM	132	180	8	116	23.0	812	DN80	2850	2500*1650*1900
			10	145	19.7	696
			13	189	16.0	565
BG220APM	160	220	8	116	27.0	954	DN80	4100	3000*1900*1950
			10	145	22.5	795
			13	189	21.0	742
BG250APM	185	250	8	116	30.0	1059	DN80	4300	3000*1900*1950
			10	145	27.0	954
			13	189	23.0	812
BG270APM	200	270	8	116	32.5	1148	DN100	5300	3600*2200*2200
			10	145	29.2	1031
			13	189	25.5	901
BG300APM	220	300	8	116	38.0	1342	DN100	5500	3600*2200*2200
			10	145	32.0	1130
			13	189	28.8	1017
BG340APM	250	340	8	116	43.0	1519	DN100	5800	3600*2200*2200
			10	145	37.5	1324
			13	189	31.5	1112

Company Profile
Wallboge is a high-tech enterprise and is considered one of the leading manufacturers of air compressor products in China. Our goal is to provide exceptional customer service coupled with quality products and energy saving solutions.
Wallboge' s primary businesses focus in following key areas:
Integrated screw air compressor for laser cutting
Permanent magnet variable frequency screw air compressor
Two-stage compression permanent magnet variable frequency screw air compressor
Low pressure two-stage compression permanent magnet variable frequency screw air compressor
Low pressure permanent magnet variable frequency screw air compressor
Water-lubricated oil-free screw air compressor
Fixed speed screw air compressor
Oil-free screw blower
Screw vacuum pump
At Wallboge, we earn our customers' trust and satisfaction by manufacturing the superior quality compressed air products for all industries. All of our products are designed for reliable performance, easy maintenance, and maximum energy efficiency. Wallboge has been exporting to more than 150 countries across the globe.
Wallboge continuously innovates product development and management to meet customers' demand. The powerful enterprise culture and continuous innovation make Wallboge improved rapidly. Wallboge' s vision is to be a world-renowned high-end energy-saving machinery brand, with sustainable development, constantly improving its own value and sharing it with our customers and staff, committed to continuously satisfying the needs of global companies by providing a full range of industrial air compression solutions.
CertificationsExhibitionsAfter Sales Service1. 24/7 after sales service in different languages.
2. Online instruction for installation and commissioning.
3. On-site instruction for installation and commissioning provided by well-trained engineers or local authorized service center.
4. Worldwide agents and after sales service available.
Our Advantages
1. Proven product quality.
2. Factory direct prices.
3. On-time delivery.
4. Prompt technical support in different languages before sales, in sales and after sales.
5. Small orders accepted to check quality first.
6. OEM & ODM service available.
FAQQ1: Are you a factory or a trading company?
A1: We are a factory. Please check our Company Profile.
Q2: What is the exact address of your factory?
A2: No. 588, East Tonggang Road, Shaxi Town, Taicang City, Jiangsu Province, China
Q3: What is your delivery time?
A3: For standard voltage, the delivery time is 15 working days after you confirm the order. For non-standard voltage, please contact our sales to confirm the delivery time.
Q4: What kind of payment terms do you accept?
A4: We accept T/T, L/C at sight.
Q5: How long is the warranty of your air compressor?
A5: 2 years for the whole air compressor except consumable spare parts.
Q6: How long could your air compressor be used?
A6: Generally, more than 10 years.
Q7: What is your MOQ requirement?
A7: 1 unit.
Q8: Can you offer OEM & ODM service?
A8: Yes, with a professional design team, we can offer OEM & ODM service.
