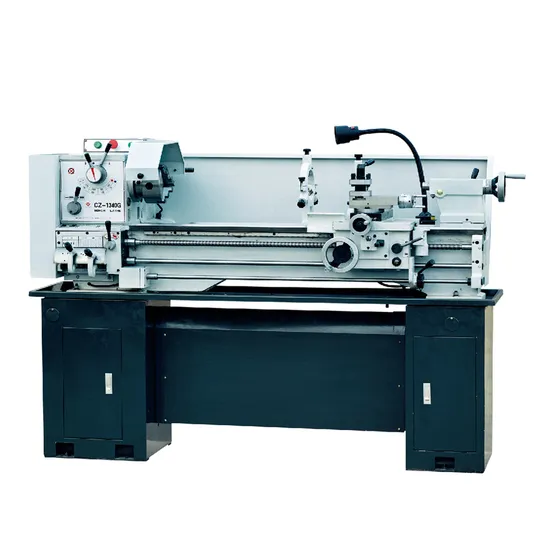

Mini Manual Metal Turning Work Bench Lathe Horizontal Precision Bench Lathe CZ1340g-1 CZ1440g-1 CZ1340g CZ1440g
| US$1,800.00-2,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CZ1440G
Type
Horizontal Lathe
Processing Accessory
Metal
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Way Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Max.Swing Over Bed
330mm
Max. Swing Over Gap
476mm
Spindle Taper
Mt5
Width of Bed
186mm
Step of Speed
18
Transport Package
Plywood Case
Specification
3200kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84581900
Production Capacity
10 PCS/Month
Product Description
GEAR HEAD LATHE FEATURES:
Engineered from high grade castings
V way bed ways induction hardened and ground
Gap bed
Cross and longitudinal interlocking feed, enough safety
Inching switch for test running
Metric/imperial thread available
SPECIFICATIONS:
| ITEM | CZ1340G | CZ1440G | |
| Swing over bed | mm | φ330 | φ355 |
| Swing over carriage | mm | φ195 | φ220 |
| Swing over gap | mm | φ476 | φ500 |
| Width of bed-way | mm | 186 | 186 |
| Distance between centers | mm | 1000 | 1000 |
| Taper of spindle | M.T.5 | M.T.5 | |
| Spindle diameter | mm | φ38 | φ38 |
| Step of spindle | 8 | 8 | |
| Range of spindle | rpm | 70~2000 | 70~2000 |
| Head | D1-4 | D1-4 | |
| Metric thread | 23kinds (0.25~11mm) | 23kinds (0.25~11mm) | |
| Inch thread | 40kinds(4~112T.P.I) | 40kinds(4~112T.P.I) | |
| Longitudinal feeds | mm/r | 0.091~2.553 (0.0036"~0.1005") | 0.091~2.553 (0.0036"~0.1005") |
| Cross feeds | mm/r | 0.025~0.69 (0.0012"~0.0345") | 0.025~0.69 (0.0012"~0.0345") |
| Diameter of lead screw | mm | φ22(7/8") | φ22(7/8") |
| Pitch of lead screw | 3mm or 8T.P.I | 3mm or 8T.P.I | |
| Saddle travel | mm | 1000 | 1000 |
| Cross travel | mm | 170 | 170 |
| Compound travel | mm | 74 | 74 |
| Barrel travel | mm | 95 | 95 |
| Barrel diameter | mm | φ32 | φ32 |
| Taper of center | mm | M.T.3 | M.T.3 |
| Motor power | Kw | 1.5(2HP) | 1.5(2HP) |
| Motor for coolant system's power | Kw | 0.04(0.055HP) | 0.04(0.055HP) |
| Machine(L×W×H) | mm | 1920×750×760 | 1920×750×760 |
| Stand (left) (L×W×H) | mm | 440×410×700 | 440×410×700 |
| Stand(right) (L×W×H) | mm | 370×410×700 | 370×410×700 |
| Machine | Kg | 495/555 | 500/560 |
| Stand | Kg | 70/75 | 70/75 |
