Outdoor Figure 8 Self-Support Aerial Gyftc8s Gyxtc8y Optical Fiber Optic Cable

Product Description

Outdoor Aerial Figure 8 Fiber Optic Cable
The fibers are positioned in loose tubes that are made of high-modulus plastic and filled with tube gel. The tubes (and fillers) are stranded around a metallic central strength member to form a cable core.The core is filled with water-blocking compound and armored with corrugated steel tape(CST). Stranded steel wires are applied as the messenger. Finally, a figure-8 PE outer jacket is extruded.
Features:
• Figure-8 design, easy for self-supporting aerial installation, reducing installation costs
• Small size, light weight and soft, easy for installation
• Hydrolysis resistant loose tube
• Tube gel ensures critical protection of fiber
• Corrugated steel tape(CST) enhancing moisture-proof
Application: Self-supporting Aerial Installation

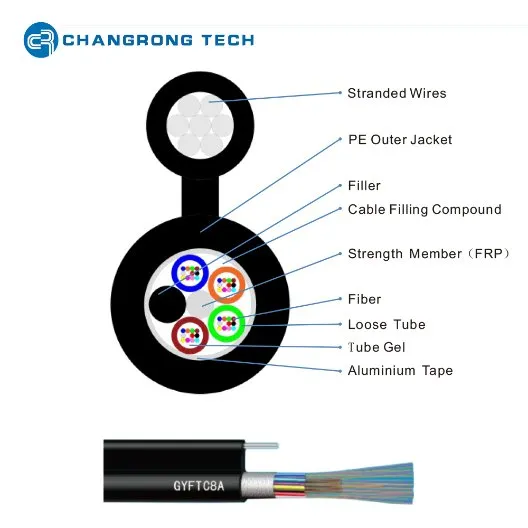

Cross Section Product Parameters

Fiber Counts	2-30	32-36	38-60	62-72	74-96	98-120	122-144	146-216	218-288
Max.fiber counts per tube	6	6	12	12	12	12	12	12	12
Units(Tubes or Fillers)	5	6	5	6	8	10	12	18	24
Cable Diameter(mm)	9.2*16.2	9.6*16.6	9.7*16.7	10.2*17.2	11.5*18.5	12.8*19.8	14.0*21.0	14.3*21.3	16.2*23.2
Weight(Kg/km)	145	160	160	177	203	230	260	263	312
Fiber Type	G652D G655 G657 50/125 62.5/125
Steel wire(mm)	1.0*7
Tensile Strength(N)	Long/Short Term:1000/3500
Crush Resistance(N/100mm)	Long/Short Term:1000/2200
Bending Radius(mm)	Static/Dynamic:10D/20D
Temperature(ºC)	Storage /Operation:-40ºC~70ºC

Detailed Photos Certifications ISO9001, ISO14001, ISO45001 Certified Factory.
Own Lab certified by CNAS.
Products certified by TLC.
Our Advantages 1. Totally 18 Optical Cable Production Lines, able to manufacture bulk orders with prompt delivery.2. Reliable Technical Support, meet the needs of different structure design and technical requirements.3. Totally 18 Optical Fiber Production Lines, with annual output 15 millions core kilometers, able to manufacture A-grade Single Mode Fibers with high speed.4. Own laboratory with advanced testing equipment introduced from France, Japan and USA, strictly controls products' quality under ISO9001 management system, industrial and international standards IEC60794-1.5. Supply OEM/ ODM service.
50 Sets of Optical Cable Testing Equipment:
