19 Inch Industrial Operation Panel HMI Cantilever Enclosure Supported Arm System Capacitive Touch Screen LCD Display IP65 Waterproof Monitor Factory Price
Basic Info.
Model NO.
IDD59190-5K
Aspect ratio
4:3
Feature
Touch Display, LED Backlight Display, With Remote Control
Optimum Resolution
1280x1024
Type
TFT
Widescreen
Widescreen
Response Time
2ms
3D
Not 3D
Interface Type
HDMI, DVI, VGA, USB
Display Type
19" Sxga TFT
Touch Type
Multi-Point Capacitive Touch Screen
Contrast Ratio
1000:1
Operating System
Win7/Win 10/Win XP/Linux
White Luminace
250 CD/M2
View Angle
85*85*80*80
Certification
CE, FCC
Warranty
2-Years
Mounting
4460 or 48 Cantilever Mounting
Transport Package
Carton
Specification
512.7x351.6x130MM
Trademark
Panelmate or Customized
Origin
Shanghai, China
HS Code
8471609000
Production Capacity
5000PCS/Mounth
Packaging & Delivery
Package Size
60.00cm * 26.00cm * 59.00cm
Package Gross Weight
11.000kg
Product Description

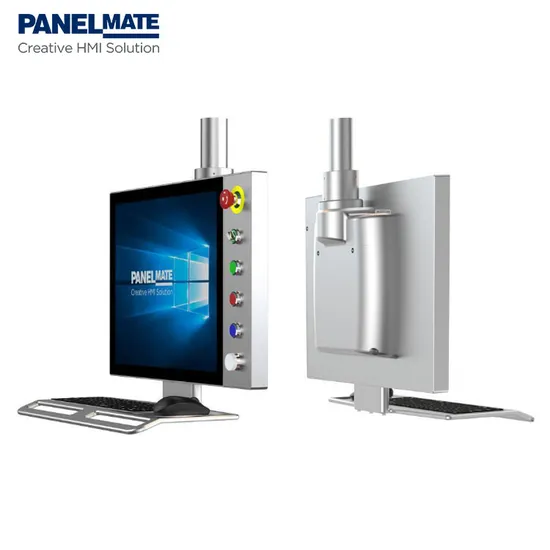

19" Cantilever Industrial Operation Monitor IP65 Dustproof and waterproof Aluminum-magnesium chassis Wide voltage range:9~36v Single point resistive touchscreen,Multi-point capacitive touchscreen,tempered glass for option Rich interfaces:HDMI+DVI+VGA+extenal USB Using a flexible mounting arm, the display can be placed in the desired position The arm has a modular construction, which allows it to be height adjusted for different uses and objects The pipe section can be cut to the desired length The cable can be laid in the stem Optional R1(IDD-LINK),long distance USB output,up to 50m Optional R2(IDD-LINK4),Video and USB transmission through a single CAT6 network cable,the transmission distance up to 100m Operating Temperature:-20~70 degrees celsius LOGO Customized Carton size for shipping: 60*59*26cm,Shipping weight:Around 18.4kg (Include display and mounting accessories;Depending on the accessories selected, the weight and volume will vary slightly) (Notes:The price is for Monitor, and does not include keyboard , keyboard tray and 4468/48 mounting accessories)| FAQ: |
| Q: Are you a manufacturer or a trading company? |
| A: Yes,we are a professional manufacturer engaged in R&D and production of HMI products over 13 years. Our advanced technology,equipment and efficient management ensure excellent quality and competitive price. |
| Q: Where is your factory? |
| A: Our factory is located in Shanghai ,China,which the traffic is convenient and close to Pudong and Hongqiao International Airport. It is easy for customers to visit and also for goods quicker shipping. |
| Q: Can I order samples? |
| A: Yes,We can make the samples according to your requirements. You should pay the sample fee and shipping fee. |
| Q:How to cooperate to develop customized products? |
| A:Decide for yourself how much performance you need, how much RAM, which hard disk or SDD size, which display size and also which interface are needed in the industrial PC, panel PC or others. Should Windows be running on the system or Linux, or do you want to install the operating system in-house? With us your specific desired confirguation can be put together completely basen on your specification. if you are unsure about minimum requiremnts, our product consultants are happy to help you.Simply send the requirements of your desired configuration to us by e-mail, you will receive your offer for desired configuartion within 1-2 working days. |
| Q: What is the lead time for sample orders and bulk production orders? |
| A: Normally, it is 5-7 working days basen on standard product.For customized products,it will be taken around 20-30 days, or to be negotiated . |
| Q: What is term of payment? |
| A: For sample order,100% T/T in advance |
| For bulk order, 30% deposit in advance, 70% balance before shipment |
| or L/C at sight. |
| Q: How about the after-sale service? |
| A: Our products have a 2-years product warranty. |
