Multi-Bags Filter Housing for Water and Industrial Liquids Filtration PP
| US$400.00-1,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LW-4D-2#
Average Filtration Velocity
120m3/H
Overall Height
1000mm
Cylinder Size
560mm
Connection Type
Flange
Materials
PP
Transport Package
Wooden/MDF Panel Carton
Specification
600*600*1600mm
Trademark
LWFE
Origin
China
HS Code
8421299090
Production Capacity
2000/Year
Packaging & Delivery
Package Size
80.00cm * 80.00cm * 150.00cm
Package Gross Weight
100.000kg
Product Description

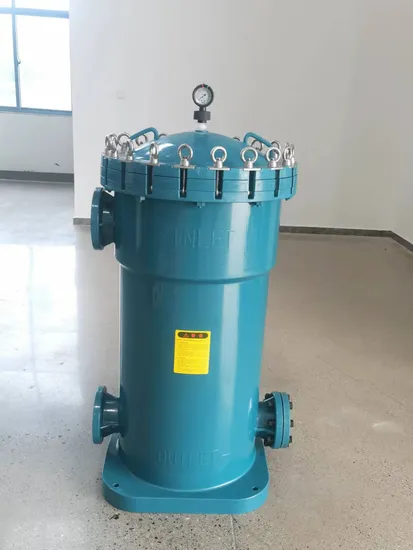

One type of Bag Filter Housings. There are four filter bags inside. It is integrally injection molded of PP, and the filter bag support net is also made of PP. Because it is integrally molded without welding, it is very durable. It is especially suitable for working conditions with low temperature and serious corrosion of stainless steel, such as seawater with lots of chlorideCommon products parameters:
| Model | LW-1BF-P1 | LW-2BF-P1-720 | LW-2BF-P1-760 | LW-4D-2# | LW-1003-P1 |
| Effective filtration area | 0.25m2 | 0.5m2 | 0.5m2 | 2.0m2 | 3*10" |
| Inlet/Outlet | 2" | 2" | 2.5" | 4" | 1.5" |
| Average filtration velocity | 15 m³/h | 30 m³/h | 30 m³/h | 120m³/h | 6 m³/h |
| Max. Operating Pressure | 0.6MPa | 0.3MPa | |||
| Temperature Resistance | 80ºC | ||||
