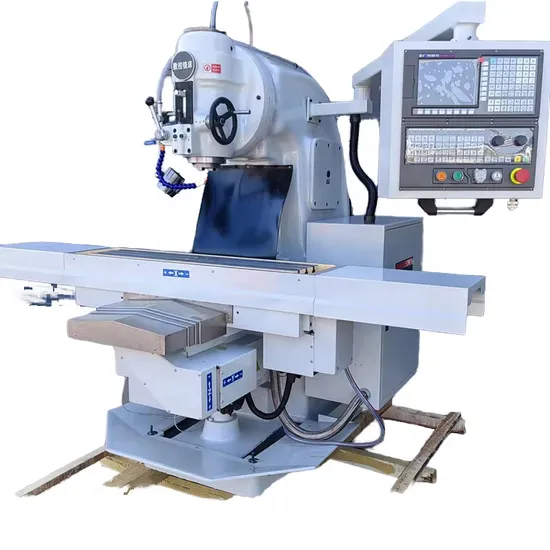

2024 New Product Xk5032 Vertical CNC Lifting Table Milling Machine High Precision Heavy Duty Automatic with Motor Core Component
| US$9,400.00-13,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XK5032 XK5040
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Max. Table Load(Kg)
500kgs
Spindle Taper
ISO50
CNC or Not
Yes
Table Size
1320*320
Table Travel
700/255/350(Manual) 680/244/330(Auto)
Color
Custom-Made
Control Method
Semi-Closed Loop Control
Transport Package
Export Wooden CTN
Specification
2294*1770*1904
Trademark
JYME
Origin
China
Production Capacity
1000
Product Description
PRODUCT SPECIFICATIONS| Specifications | Units | XK5032 | XK5040 |
| Table size | mm | 320x1325 | 400X1700 |
| Table travel(X.Y.Z) | mm | 900x250x350 | 900X330X360 |
| T-type slot (numbers / width /space) | mm | 3- 16/18-70 | 3-18-90 |
| Spindle taper | | ISO50(7:24) | ISO50(7:24) |
| Spindle bore diameter | mm | 29 | 29 |
| Spindle front bearing diameter | mm | 90 | 100 |
| Axial movement distance of the spindle | mm | 70 | 85 |
| Max. swivel angle of vertical milling head | | ±45° | ±45° |
| Distance from the spindle end to the table surface | mm | 45-415 | 105-470 |
| Distance from the bed's vertical guide rail to the spindle centerline | mm | 350 | 450 |
| Number of spindle speed levels | | 18 Steps | 18 Steps |
| Spindle speed range | r/min | 30-1500 | 30-1500 |
| Table feed range | mm/min | 0-4000 | 0-4000 |
| Worktable rapid traverse speed | mm/min | X:6000; Y:5000; Z:3000 | X:5000; Y:4000; Z:3000 |
| Main motor power | kw | 7.5 | 11 |
| Main motor speed | r/min | 1440 | 1440 |
| Feeding motor power in X direction | mm/min | X:2.3 ; Y:2.3; Z:3.5 | X:2 ; Y:2; Z:3.5 |
| Cooling pump motor power | kw | 0.015 | 0.09 |
| Length x Width x Height | mm | 2600x1700x2400 | 2510x2100x2400 |
| Machine tool weight | kg | 2900 | 4250 |
| Max. load working table | kg | 500 | 500 |
Standard Accessories of Mill Machine
* MIDDLE SLEEVE
* INNER HEXAGONAL SPANNER
*SINGLE ENDED SPANNER
*MILLING ARBOR
*DRAW BAR
*DOUBLE OPEN ENDED SPANNER
Product Application
The milling machine is a kind of universal light duty metal cutting machine,Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc.. Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
