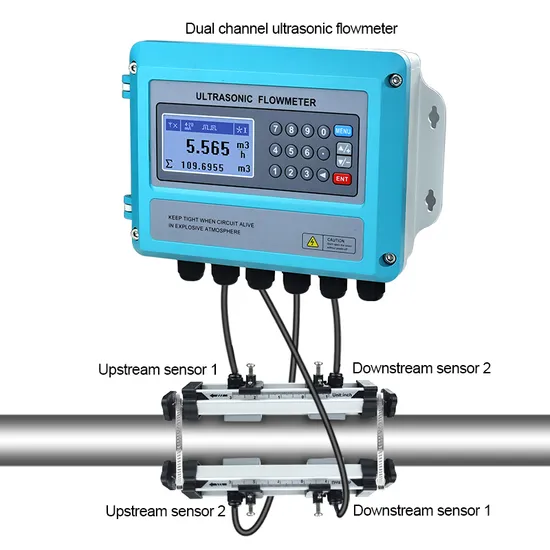

Clamp on Ultrasonic Liquid Flow Meter Portable Ultrasonic Flowmeter DN15-DN6000
Basic Info.
Model NO.
GTUL
Accuracy
1%
Main Application
Water, Diesel Fuel, Fuel Oil
Size
DN15mm-DN6000mm
Sensor
Clamp-on/External
Application
Industrial Production
Type
Ultrasonic Flow Meter
Measuring Media
Liquid
Measuring Principle
Acoustics
Measurement Object
Closed Pipeline
Certification
CE, ISO
Power Supply
24VDC
Material
ABS
Protection Class
IP65
Output
4-20mA /RS485
Connection
Clamp
Display
LCD
Measure Temperature
-30~90(160)
Power Consumption
Less Than 1.5W
Transport Package
Carton or Wooden Case
Specification
DN15mm-DN6000mm
Trademark
JUJIE
Origin
Anhui, China
HS Code
9026100000
Production Capacity
5000 Unit/Units Per Month
Packaging & Delivery
Package Size
38.00cm * 28.00cm * 30.00cm
Package Gross Weight
4.000kg
Product Description
Specification| Measurement accuracy | Level 1.0 |
| Repeatability | 0.2%. |
| Flow rate range | Below DN200 (inclusive) 0.3- 4m/S; above DN200 0.3-6m/s |
| Measurement principle | Principle of ultrasonic propagation time difference, dual CPUs working in parallel, 4-byte floating point operation |
| Measurement period | 500mS (2 times per second) |
| Working power supply | Isolated DC8-36V or AC85-264V |
| Signal input | 3 channels of 4-20mA analog input, which can input pressure, liquid level, temperature and other signals; 2 channels of three-wire platinum resistors |
| Signal output | 1 isolated RS485 output; 1 isolated 4 20mA or 0 20mA output (active or passive optional) |
| Optional HART protocol; dual isolated OCT outputs | |
| 1 bidirectional serial interface, universal interface for peripherals, connects 4-20mA, frequency signals, thermal printers, data loggers, etc. | |
| Protocol | Modbus RTU protocol |
| Power consumption | Working current 50mA (when the keyboard is not connected and the buzzer does not sound) |
| Display | 2X 10 Chinese character backlight display (Chinese and English bilingual optional) |
| Operate | 16-button or 4-button window operation |
| Other functions | Automatically memorizes the previous 512 days, the previous 128 months, and the previous 10 years. The positive and negative net accumulated flow rates can be automatically remembered for the previous 30 times. The power-on and power-off times and flow rates can be automatically or manually added, and can be read out through the Modbus protocol. |
| Sensor | External application, insertion and tube type |
instrument high-tech enterprises.Company have experienced team of professional sales engineers and high-quality products
to ensure better process control solutions for clients! Our main products include: turbine flow meter, electromagnetic flow
meter, vortex flow meter, compression vortex flow meter, ultrasonic flow meter, digital pressure gauge, pressure transmitter,
liquid level gauge,data recorder and other products
